Matrix SETU VFXTH User Manual

Matrix SETU VFXTH Quick Start 5
If any of these items is missing or damaged, please contact the dealer/reseller from whom
you purchased the system.
• Place the system at the selected site.
If you are mounting the system on a wall, refer to the mechanical dimensions of the product
and use the mounting template for drilling holes on the wall.

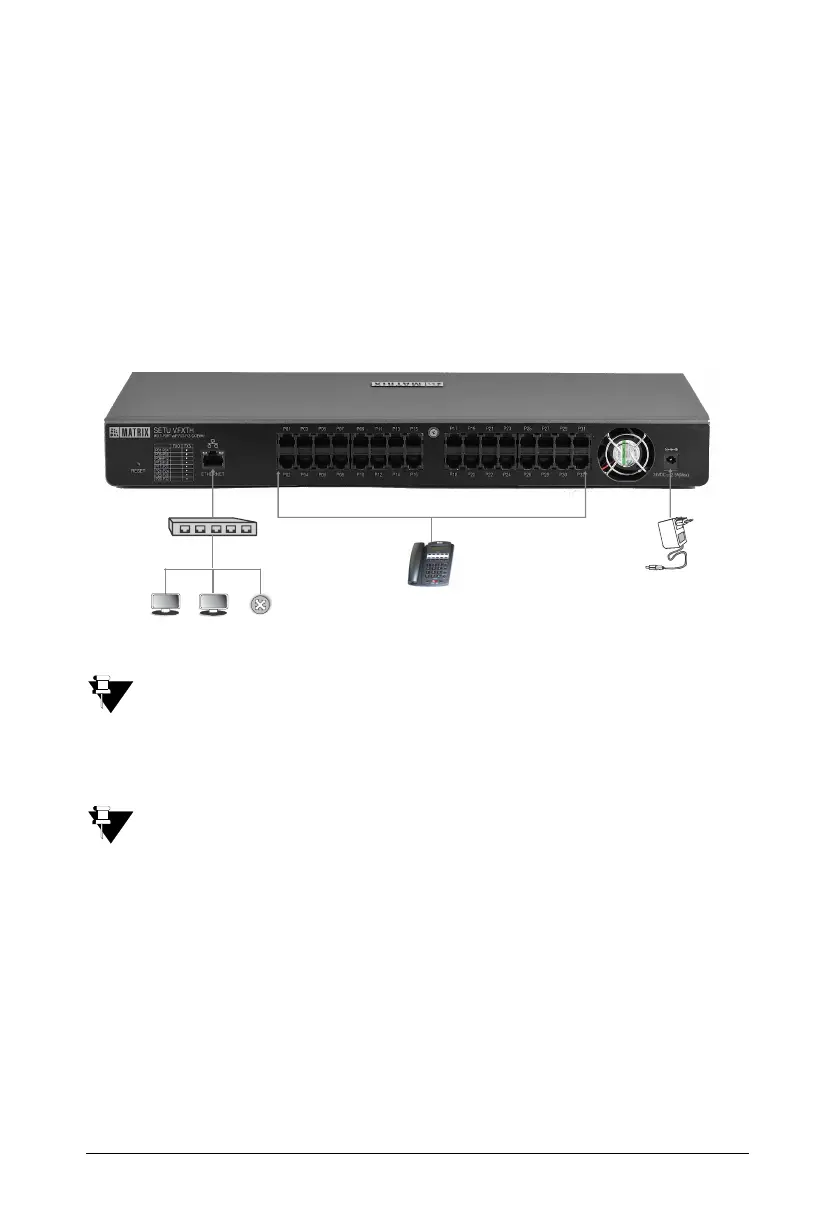

Connecting SETU VFXTH
SETU VFXTH0032 has 1 Reset Button, 1 Ethernet (WAN) Port, 32 FXS Ports, 32 SIP Trunks, a
Power Socket and 34 LEDs. Depending on the configuration, the number of FXO Ports, FXS Ports
and LEDs may vary.
If your SETU VFXTH supports only FXO Ports (SETU VFXTH3200), P01 to P32 will be used to connect
PSTN lines or a PBX. However, if you system supports both FXO and FXS Ports (SETU VFXTH0808)
then P01 to P08 (FXO Ports) will be used to connect PSTN lines or a PBX and P09 to P16 (FXS Ports)
will be used to connect telephone instruments or a Fax Machine or a PBX.
Connecting to the IP Network
Before you connect the system to WAN, we recommend that you first connect a computer to the
Ethernet Port of SETU VFXTH, configure the Basic Settings, and then connect to WAN.
• Use the Ethernet cable supplied for the Ethernet Port of SETU VFXTH to connect the system to
the Public network or Private Network.
If connecting to the Public IP Network,
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other
end into the DSL modem/Router.
LAN Switch/
Hub
Modem/
Router
Computers
Power
Adapter
Standard
Tel ep ho ne s

Matrix SETU VFXTH Specifications

General

Brand	Matrix
Model	SETU VFXTH
Category	Gateway
Language	English
