Matrix Versa Single-Station Strength - Page 13

13
ASSEMBLY
STEP 2 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 2: ARM ASSEMBLY
19
20
19
20
ID DESCRIPTION QUANTITY
19 M12 Flat Washer 2
20 M12 X 25L SHC 2

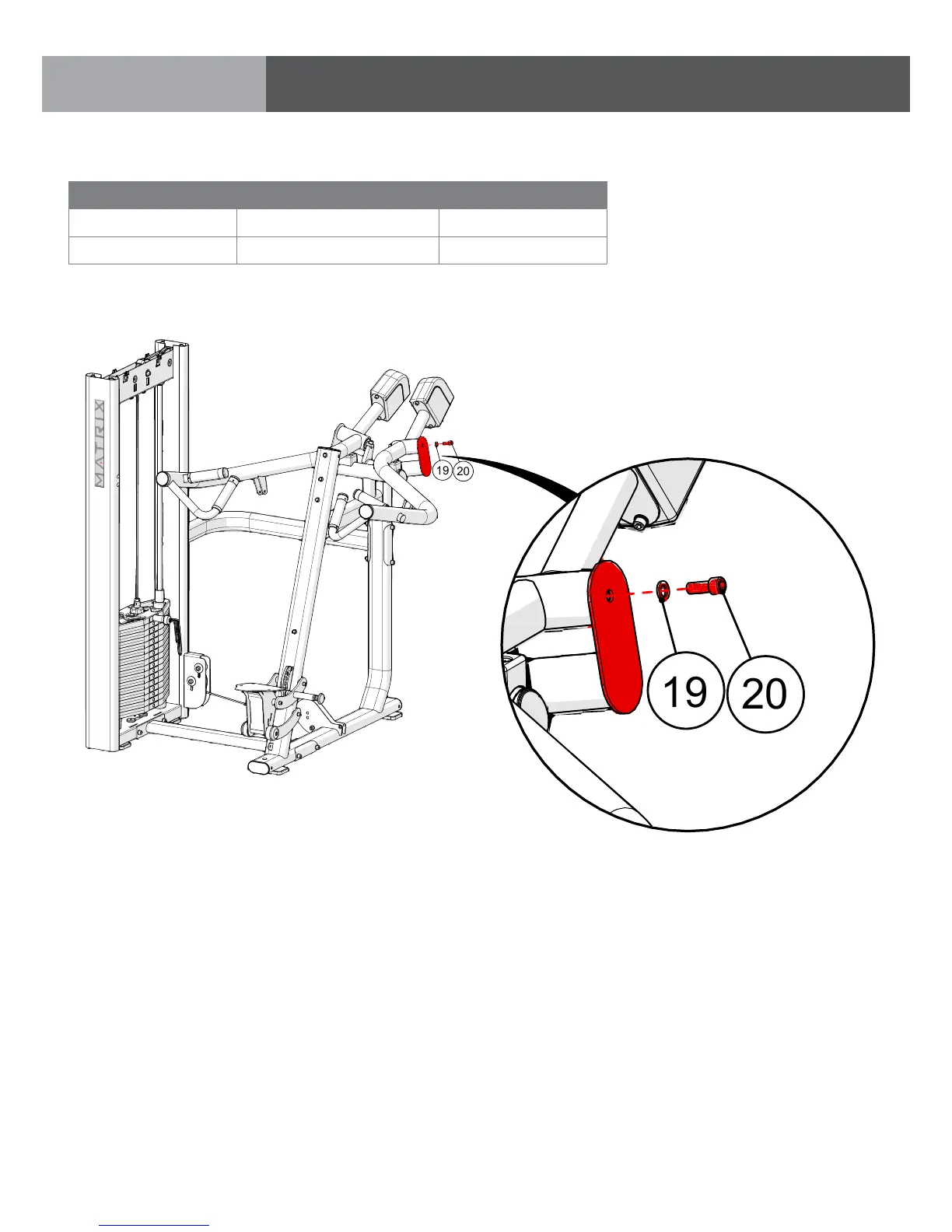

Install the pivot cap screw as shown. Torque all arm hardware to:
• M12 from step 2 to 136 N-m/100 ft-lbs.
• M10 from step 1 to 77 N-m/57 ft-lbs.
