14

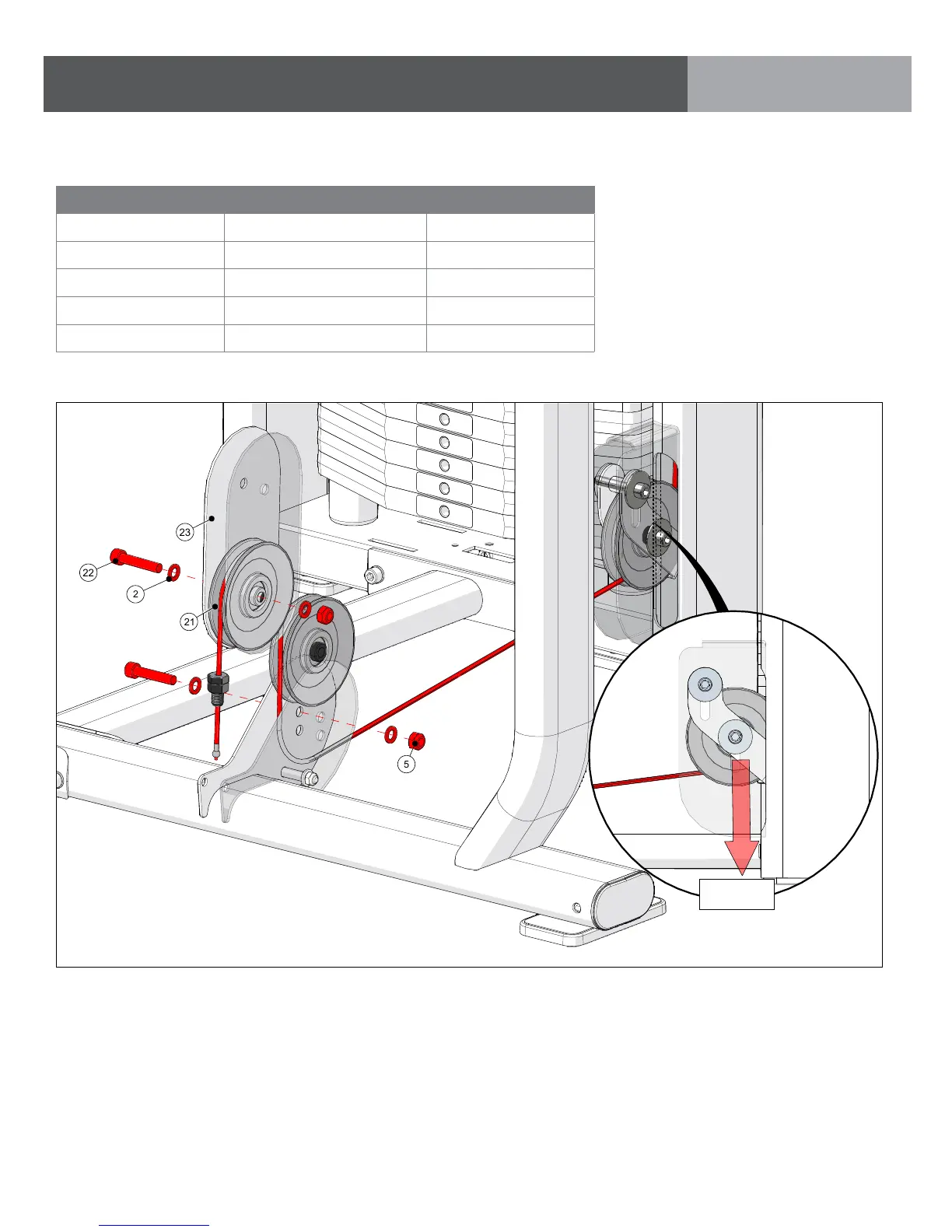

PART 3: CABLE ASSEMBLY
STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
5 M10 Nylock Nut 2
21 Pulley 3
22 M10 X 50L SHC 2
23 Floating Pulley Plate 2
22
2
5
21
23
View A
Cable tension is adjusted by raising or lowering pulley as shown in View A.
Note: Nuts for adjustable pulley must be on inside towards weight plates.
ASSEMBLY
