ASSEMBLY

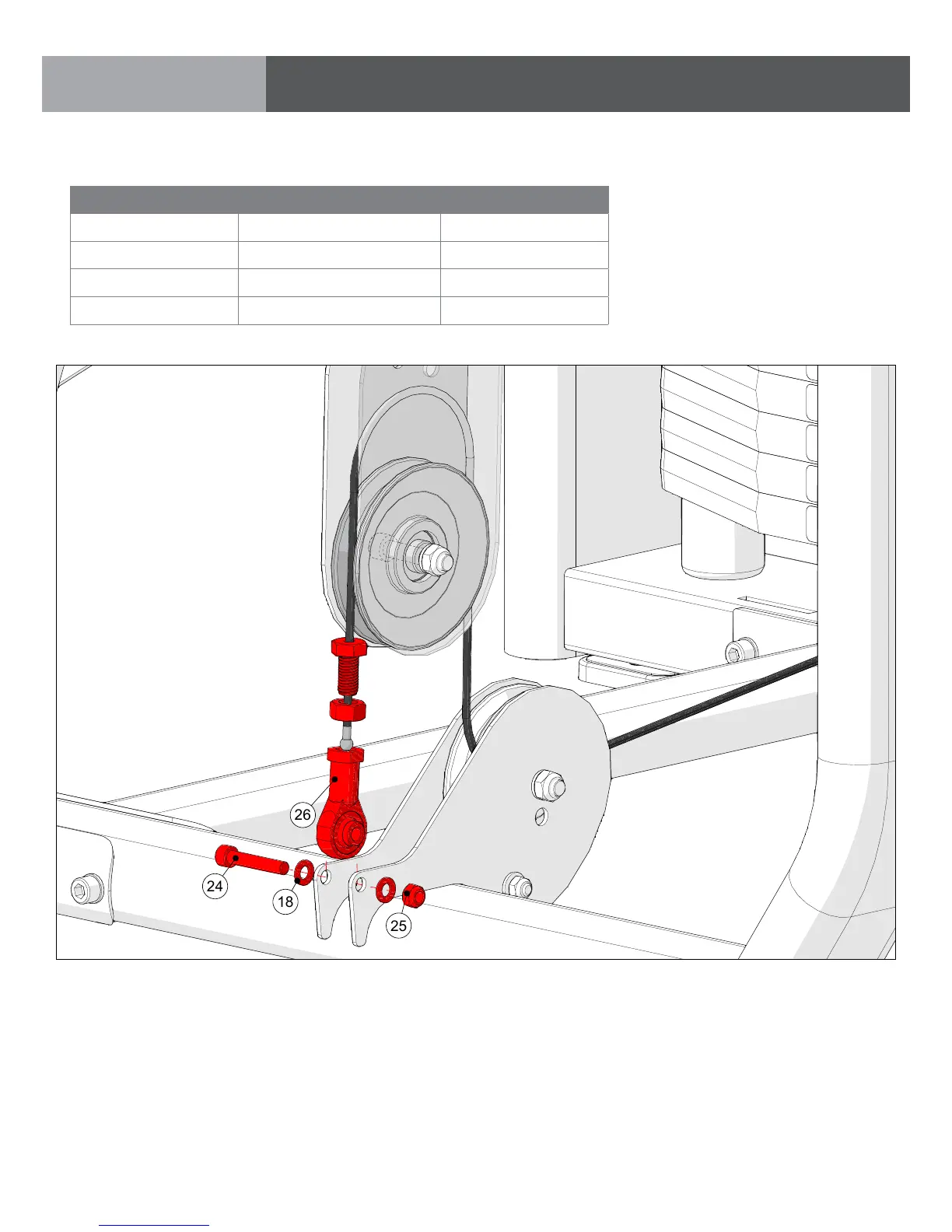

STEP 2 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: CABLE ASSEMBLY
24
18
26
25
ID DESCRIPTION QUANTITY
18 M8 Flat Washer 2
24 M8 X 45L SHC 1
25 M8 Nylock Nut 1
26 Cable Tie Rod End 1
Fully thread cable bolt into tie-rod, then attach to frame.
Torque M8 hardware to: 39 N-m/29 ft-lbs.
