PART 3: CABLE ASSEMBLY
STEP 3 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES
27
22
21
2
5
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 1
5 M10 Nylock Nut 1
21 Pulley 1
22 M10 X 50L SHC 1
27 User Frame Cable 1

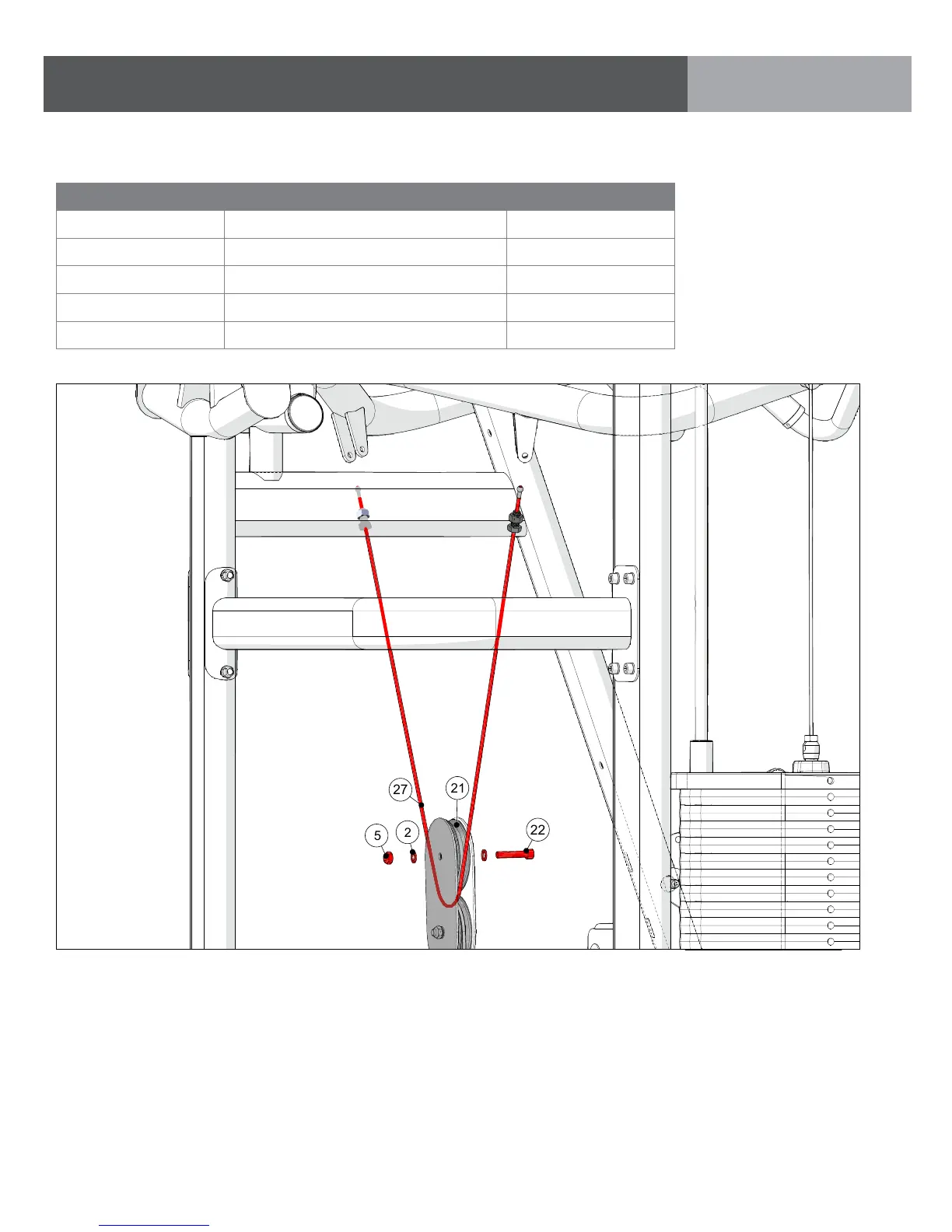

Install the secondary cable pulleys as shown.
Torque hardware to: 77 N-m/57 ft-lbs.
