Matrix Versa Single-Station Strength User Manual

17
ASSEMBLY

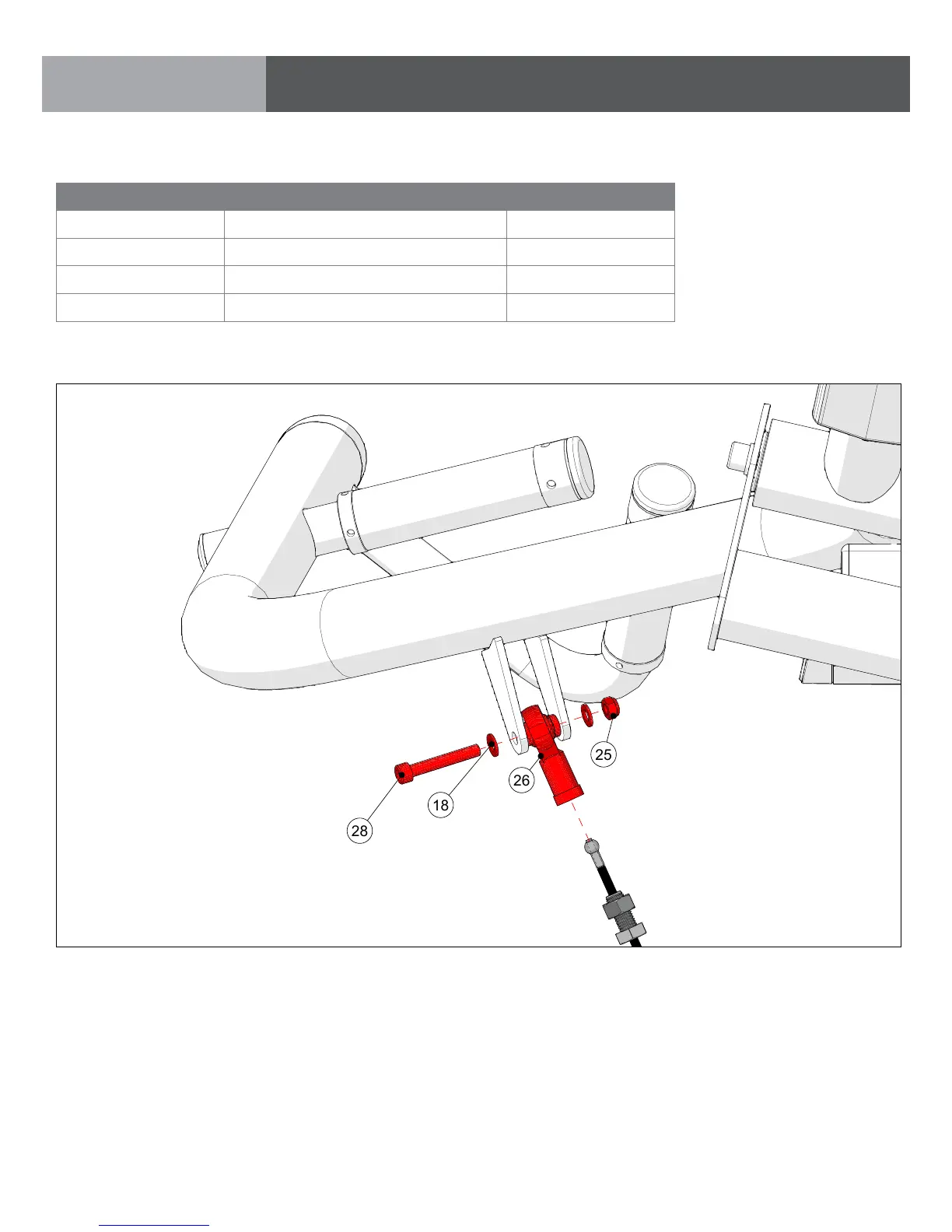

STEP 4 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: CABLE ASSEMBLY
25
26
18
28
ID DESCRIPTION QUANTITY
18 M8 Flat Washer 4
25 M8 Nylock Nut 2
26 Cable Tie Rod End 2
28 M8 X 50L SHC 2
*Note: Image shows left arm assembly only, though quantities reflect both left and right arm assemblies.
Fully thread cable bolt into tie-rod, then attach to frame.
Torque M8 hardware to: 39 N-m/29 ft-lbs.
