PART 2: ARM ASSEMBLY

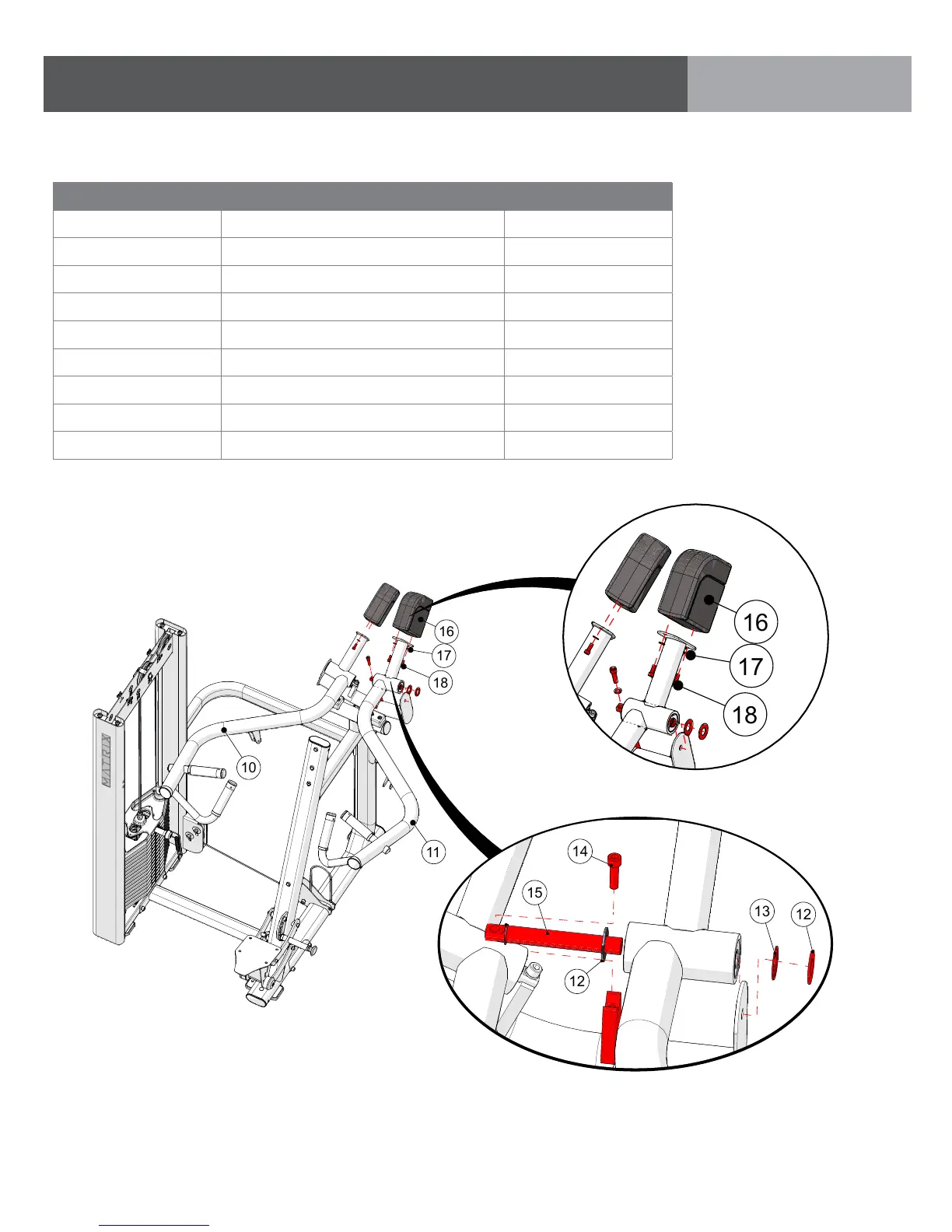

STEP 1 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
10 Right Arm Assembly 1
11 Left Arm Assembly 1
12 40mm Diameter Flat Washer 4
13 Belleville (Spring) Washer 2
14 M10 X 30L SHC 2
15 20 mm Diameter Shaft 2
16 Counter Weight 2
17 M8 Flat Washer 4
18 M8 X 20L SHC 4
ASSEMBLY
17
18
10
16
11
17
18
16
15
12
12
13
14
Attach the arms to the frame using the hardware shown, but DO NOT FULLY TIGHTEN
Belleville washer, item 13, must be assembled with inner (convex) diameter contacting the bearing. The outer
diameter and concave side of Belleville washer contacts the outer washer item 12.
