STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 8: PREMIUM KIT ASSEMBLY

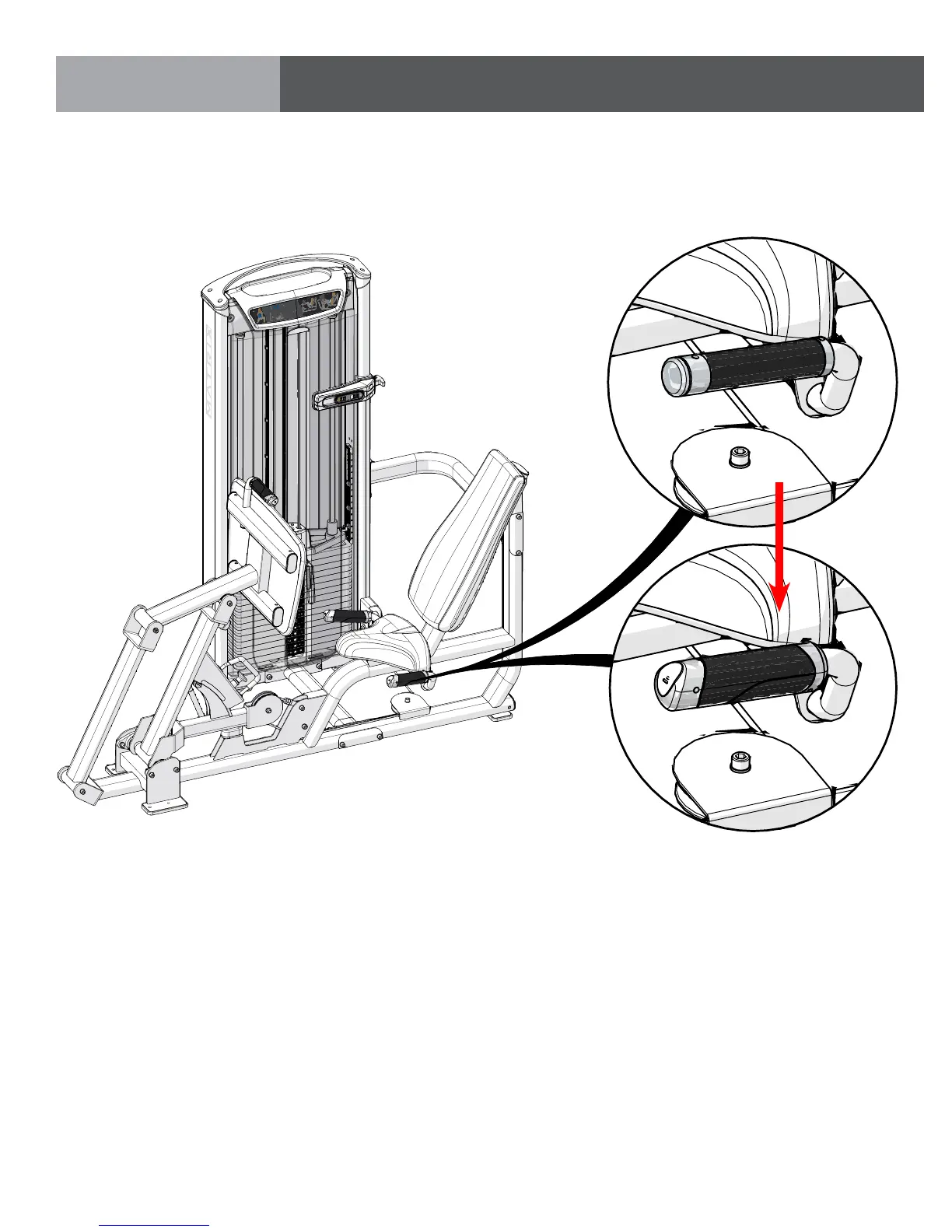

1. Remove the end caps using a 3 mm Allen wrench.
2. Cut off and discard the grips.
3. Remove inner collars with a 3 mm allen wrench.
4. Assemble the ASG grip (4P) as shown; lock inner collars using a 4 mm Allen wench (torque to 8 N-m/5 ft-
lbs.), and a 3 mm Allen wrench to secure the end caps.
5. Orient ASG grips as shown, with thumb index angled in for comfort.
