ALWAYS disconnect air supply before adjusting adjustment
dial.
1 If an adjustment is required, disconnect air supply.
2 Refer to the figure for direction to turn the dial.
3 Reconnect air supply.

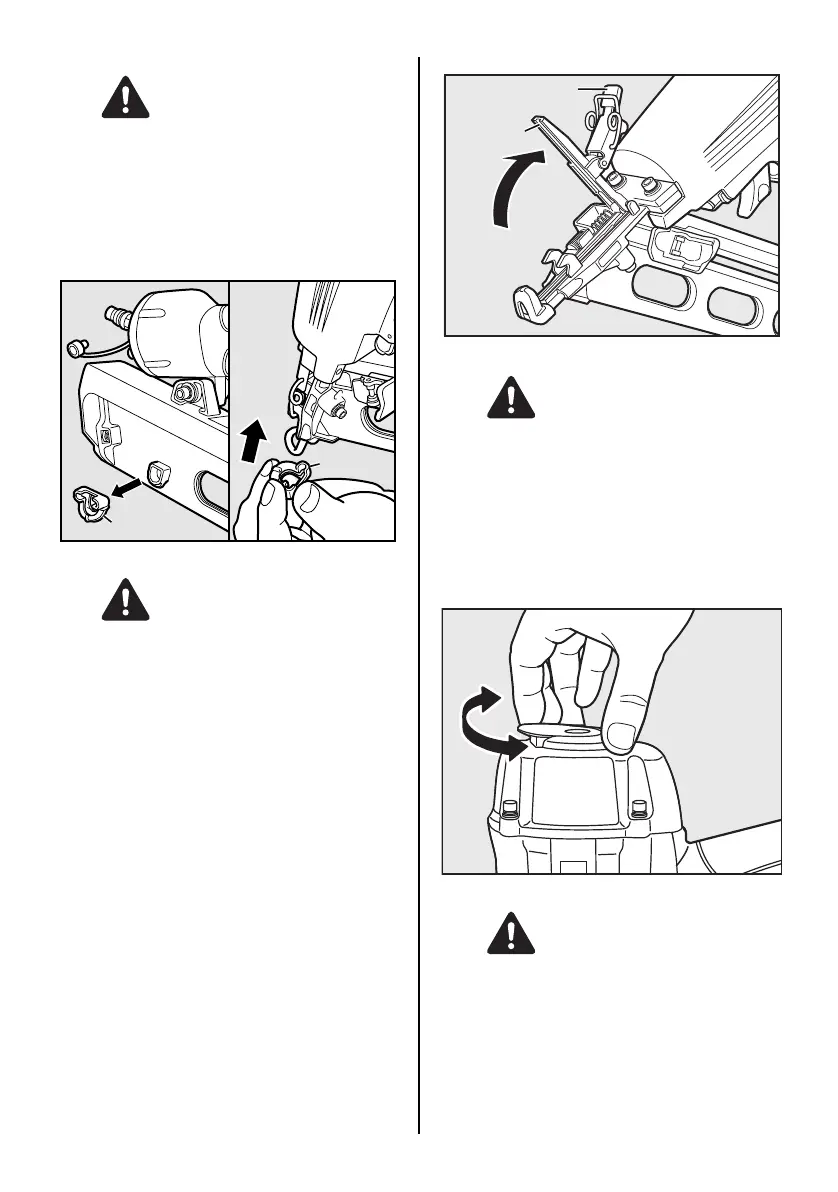

THE CONTACT TIP
ALWAYS disconnect air supply before setting the contact tip.
Set the contact tip on the top of the contact arm, when driving
nails to a soft material.
Use the contact tip at the back of the rear side of the magazine
as necessary.
CLEARING JAMMED NAILS
ALWAYS disconnect air supply before clearing jammed nails.
1 Disconnect the air hose.
2 Remove the set of nails from the magazine.
3 Open the Latch Cover, then pull up to open the Driver Guide
A.
4 Clear the nails-jammed inside the driver guide using a thin
iron bar or a flat-blade screw driver.
5 Close the Driver Guide A and the Latch Cover.
DIRECTIONAL EXHAUST COVER
ALWAYS disconnect air supply before rotating the
exhaust cover.
Direction of the exhaust air is changeable by rotating exhaust
cover by hand.
Latch Cover
Driver Guide A
