7

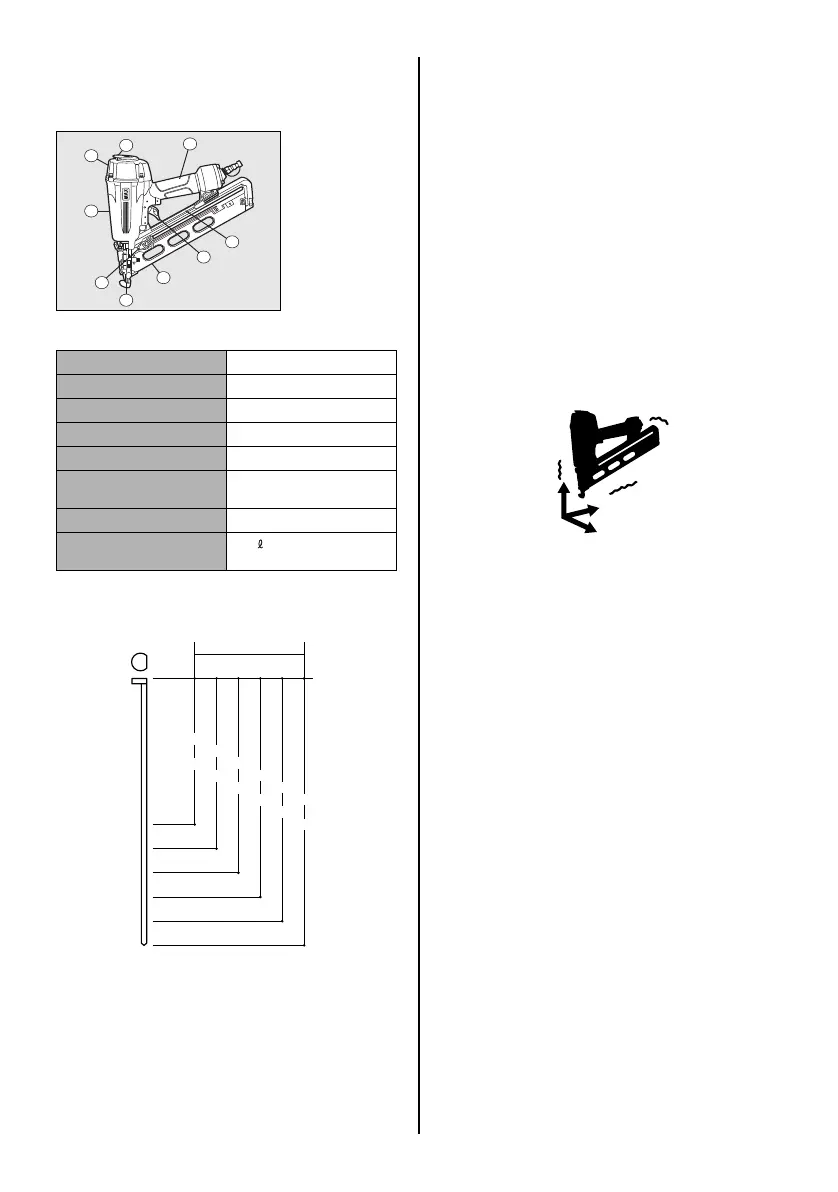

3. SPECIFICATIONS AND TECHNI-
CAL DATA
1. NAME OF PARTS
2. TOOL SPECIFICATIONS
The machine has been compactly designed in order to im-
prove operating weight balance.
3. BRAD NAIL SPECIFICATIONS
TOOL AIR FITTINGS:
This tool uses a 1/4" N.P.T. male plug. The inside diameter
should be 7mm (.28") or larger. The fitting must be capable of dis-
charging tool air pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRESSURE:
5 to 7 bar (70 to 100 p.s.i.). Select the operating air pressure with-
in this range for best fastener performance.
DO NOT EXCEED 8.3 bar (120 p.s.i.).
4. TECHNICAL DATA
1 NOISE
A-weighted single-event sound power level
------ LWA, 88.8 dB
Uncertainty (KWA): 3 dB
A-weighted single-event emission sound pressure level at
work station
------ LpA, 87.2 dB
Uncertainty (KpA): 3 dB
These values are determined and documented in accord-
ance with EN12549 : 1999.
2 VIBRATION
Vibration characteristic value
= 3.04 m/s
2
Uncertainty(K): 1.5 m/s
2
These values are determined and documented in accord-
ance with ISO 8662-11.
This value is a tool-related characteristic value and does not
represent the influence to the hand-arm-system when using
the tool. An influence to the hand-arm-system when using
the tool will, for example, depend on the gripping force, the
contact pressure force, the working direction, the adjust-
ment of mains supply, the workpiece, the workpiece sup-
port.
5. APPLICATIONS
Door and window casings
Plywood, decorative boards, and other interior finish works
Panel assembly and moldings
Sub flooring
Furniture assembly including drawer assembly, case back
nailing, blind pinning, and other finishing works
Cabinet assembly
1 Frame
2 Cylinder Cap
3 Exhaust Cover
4 Magazine
5 Trigger
6 Grip
7 Warning Label
8 Outlet
9 Pusher
PRODUCT NO. NF665A/15
HEIGHT 322 mm (12-5/8")
WIDTH 94 mm (3-11/16")
LENGTH 322 mm(12-5/8")
WEIGHT 1.8 kg (3.97 lbs)
RECOMMENDED
OPERATING PRESSURE
5 to 7 bar
(70 to 100 p.s.i.)
LOADING CAPACITY 106 Nails
AIR CONSUMPTION 1.44 (0.051ft
3
) at 7 bar
operating pressure
8
9
5
4
2
1
6
3
7
1-1/4"
32 mm
1-1/2"
38 mm
1-3/4"
45 mm
2"
51 mm
2-1/4"
57 mm
2-1/2"
65 mm
NF665A/15
Wire gauge: 15
