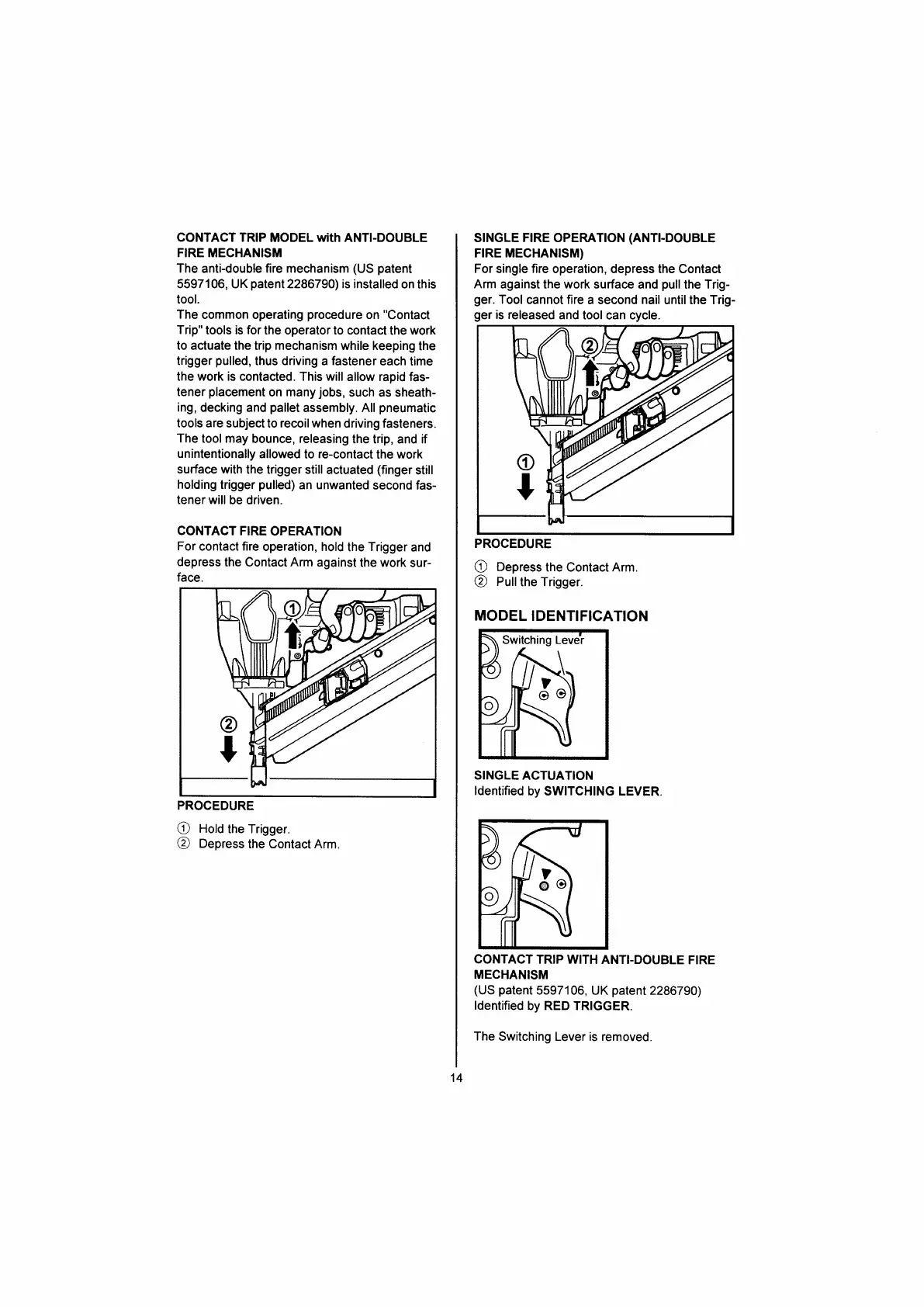

Max SN890CH 34 - Page 14

CONTACT
TRIP MODEL with ANTI-DOUBLE
FIRE MECHANISM
The
anti-double
fire mechanism
(US
patent
5597106, UK
patent
2286790) is installed
on this
tool.
The
common operating
procedure
on
"Contact
Trip"
tools is for
the operator to contact
the
work
to actuate the
trip
mechanism
while keeping
the
trigger
pulled,
thus driving a
fastener
each
time
the work is contacted. This will
allow rapid fas-
tener
placement
on many
jobs,
such as sheath-
ing,
decking and
pallet
assembly. All
pneumatic
tools are subject
to
recoilwhen
driving fasteners.
The
tool may
bounce, releasing
the trip, and if
unintentionally
allowed
to
re-contact
the
work
surface with
the trigger still
actuated
(finger
still
holding
trigger
pulled)
an unwanted
second fas-
tener will be driven.
CONTACT
FIRE
OPERATION
For
contact fire
operation, hold
the
Trigger
and
depress the
Contact
Arm
against
the work
sur-
face.
PROCEDURE
①Holdthettr:gger.
②DepresstheContadArm.
SINGLEF:REOPERAT10N(ANT卜 DOUBLE
F:REMECHANISM)
ForsinglenreOperation,depresstheContact
ArrnagainsttheworksurFaceandpu‖
theTrig―
ger.ToolcannotflreasecondnalluntiltheTrig―
gerisreleasedandtoolcancycle.
PROCEDURE
①DepЮ
sstheContadArm.
②PulltheTngger.
MODELIDENT:F:CAT!ON
SiNGLEACttUAT:ON
ldentriedbyswiTCH:NGLEVER.
CONTACTTRIPVV:THANT卜
DOUBLEFIRE
MECHANISM
(USpatent5597106,UKpatent2286790)
ldentriedbyREDTRIGGER.
丁heSwnchingLeverisremoved.
Switching Levei
