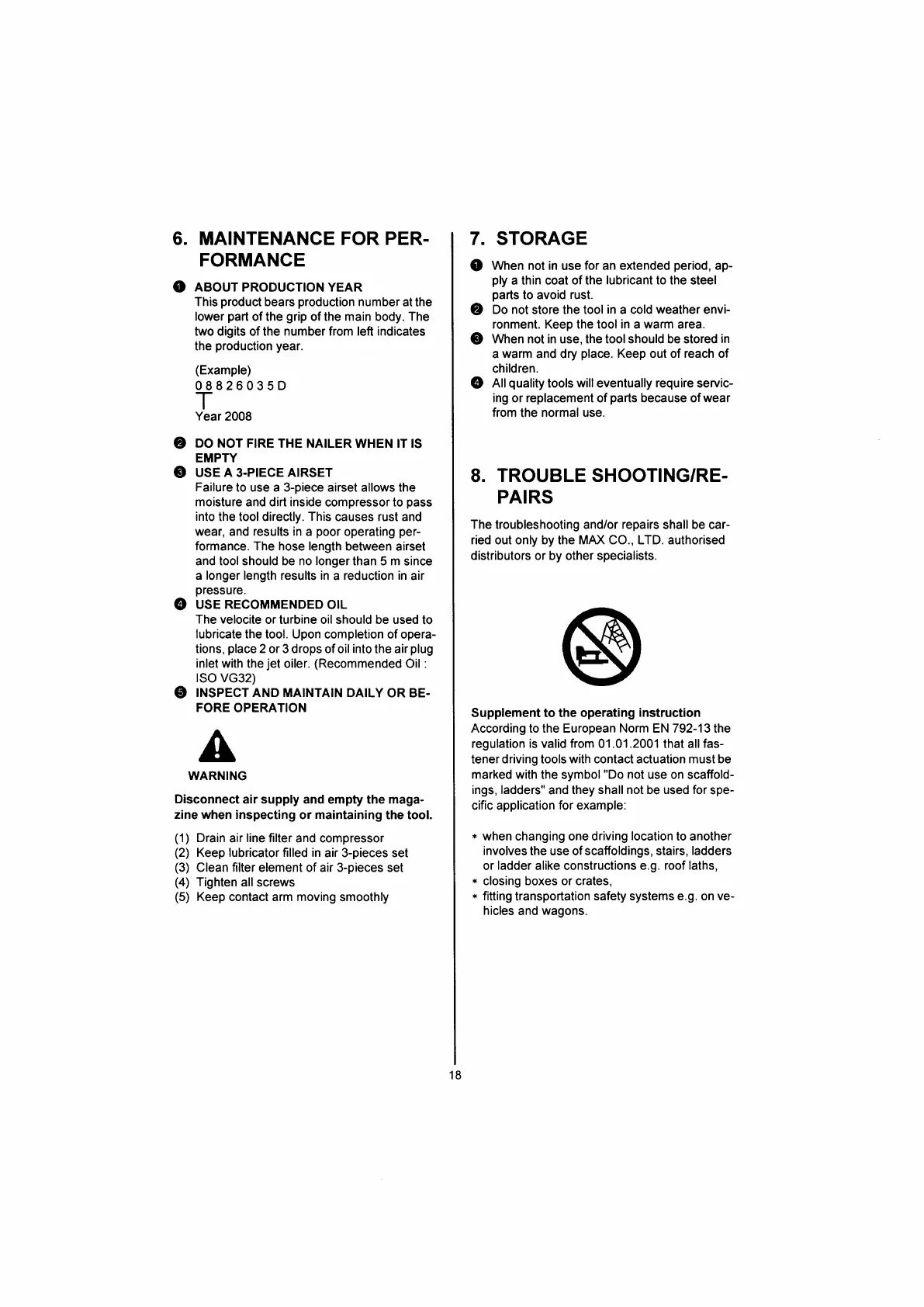

Max SN890CH 34 - Trouble Shooting;Re- Pairs

6.
●
MAINTENANCEFORPERロ
FORMANCE
ABOUTPRODUCT10NYEAR
Thisproductbearsproductionnumberatthe
lowerpartofthegripofthernainbody.The
twodigltsOfthenumberfromleftindicates
theproductionyear.
(Example)
08826035D
丁
Year2008
DONOTF:RETHENAILERWHENlttIS
EMPW
USEA3‐
PIECEAIRSET
Fa‖
uretousea3‑pleceairseta‖ owsthe
moistureanddirtinsidecompressortopass
intothetooldlrectly.丁
hiscausesrustand
wear,andresultsinapOoroperatingper―
forrnance.Thehoselengthbetweenairset
andtoolshouldbenolongerthan5msince
alongerlengthresultsinareductioninair
pressure.
USERECOMMENDEDOIL
Thevelociteorturbineoilshouldbeusedto
lubricatethetool.Uponcompletionofopera―
tlons,place2or3dropsofo‖
intotheairplug
lnletwnhtheietOiler.(RecommendedOil:
lSOVG32)
OINSPECTANDMAINTAINDA:LYORBE‐
FOREOPERAT10N
WARNING
Disconnect
air supply and
empty the
maga-
zine when inspecting
or maintaining the tool.
(1)
Drain
air
line
filter and compressor
(2)
Keep lubricator filled in
air 3-pieces set
(3)
Clean filter element of air 3-pieces
set
(4)
Tighten
allscrews
(5)
Keep contact arm moving
smoothly
０
０
●
7. STORAGE
O
Wnen not in
use
for an extended
period,
ap-
ply
a thin coat of the
lubricant
to the steel
parts
to
avoid rust.
O
Do not
store the
tool
in
a cold
weather
envi-
ronment. Keep the tool in a warm area.
O
Wnen not in use, the tool should be stored
in
a
warm
and dry
place.
Keep
out
of reach of
children.
@
nttquality tools
willeventually require
servic-
ing or replacement of
parts
because of wear
from
the
normal use.
8.
TROUBLE SHOOTING/RE-
PAIRS
The troubleshooting and/or repairs
shall be car-
ried out only by the MAX CO., LTD. authorised
distributors
or
by other specialists.
Supplement to the operating
instruction
According
to
the European Norm EN 792-13 the
regulation is valid from 0'1.01.2001 that all fas-
tener
driving
tools
with contact actuation must be
marked with
the symbol"Do
not
use on scaffold-
ings, ladders"
and they
shall not
be
used for
spe-
cific application
for
example:
*
when changing one driving
location
to another
involves
the use of scaffoldings, stairs,
ladders
or
ladder
alike constructions
e.g. roof laths,
*
closing boxes or crates,
*
fitting
transportation
safety systems e.g. on ve-
hicles and
wagons.
