6 DESCRIPTION OF THE CRANE
6.1 MODEL 3300W
Item Description
1 Slewing system
2 Slewing motor
3 Column
4 Main boom
5 Boom hoist cylinder
6 First boom section (hydraulic)
7 Second boom section (mechanical)
8 Telescope cylinder (inside the boom)
9
10 Control valve
11 Electric shunt board
12 Remote control box
13 Winch
14 Travelling block
15 Electro-hydraulic power pack
16 Outrigger beam (mechanical jack) OPTIONAL

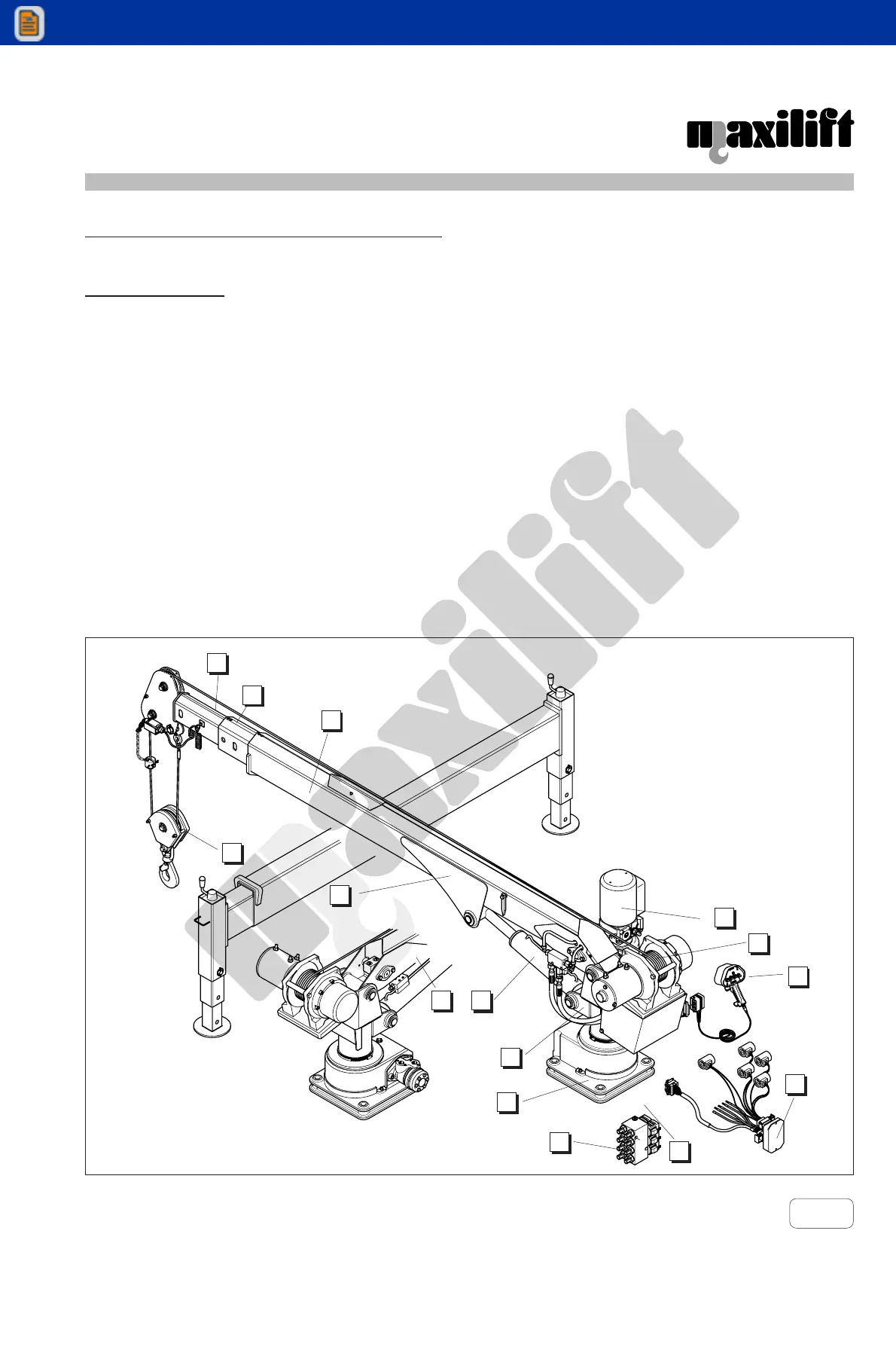

Pict. 6
1
2
3
5
7
6
8
10
11
12
13
14
16
15
4
