maxilift 3300W - Hydraulic Diagrams

41
11.2 HYDRAULIC DIAGRAMS

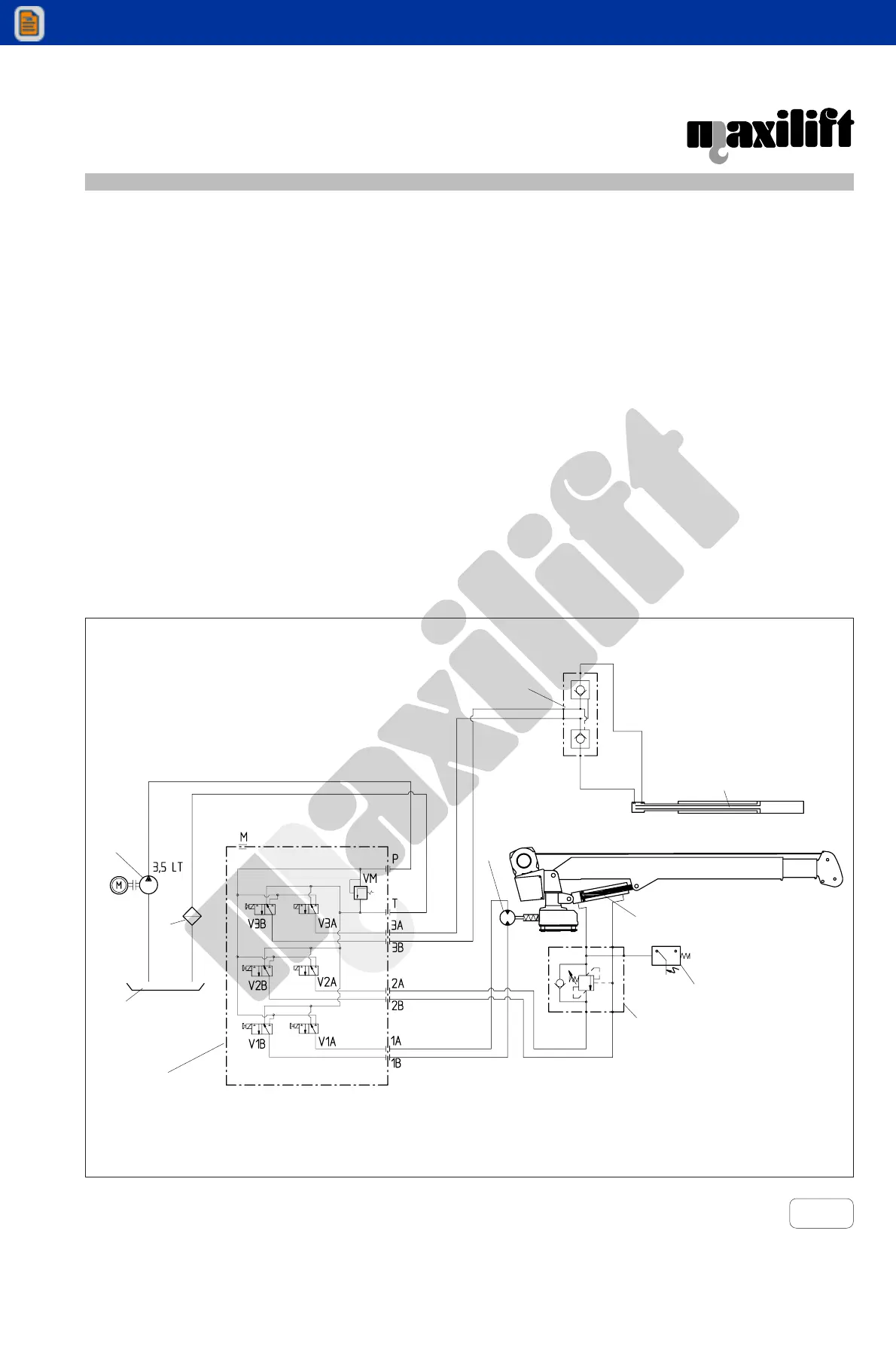

11.2.1 HYDRAULIC DIAGRAM FOR E 12V VERSION
1 Pump
2 Electrohydraulic unit
3 Rotation motor
4 Lifting cylinder
5 Overcenter valve
6 Pressure switch
7
8 Cylinder
9 Overcenter valve
10
11 Oil filter
12 Oil tank
13
Pict. 22
2
1
3
4
5
6
8
11
9
12
