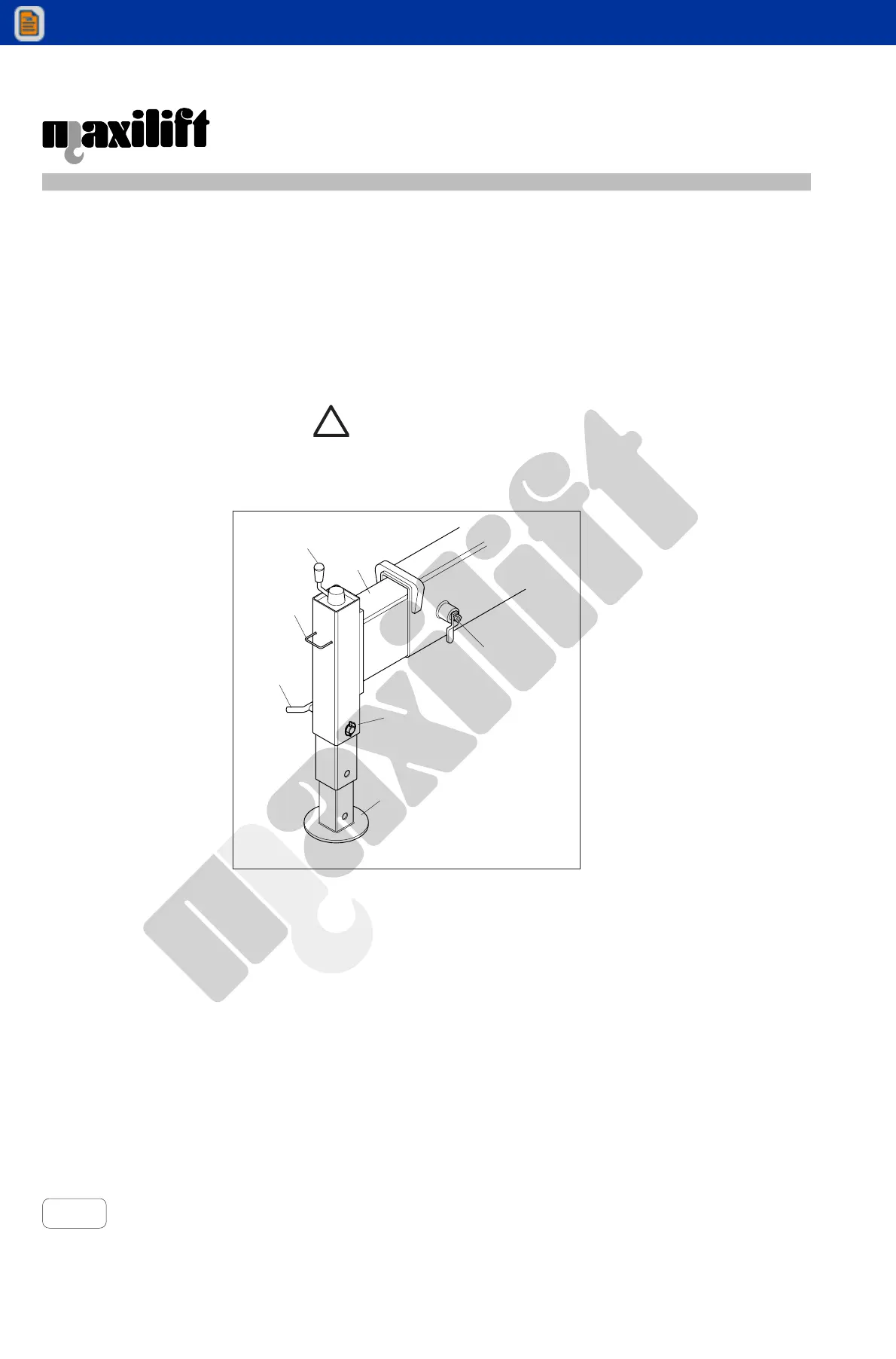

Mechanical jack (Pict. 11)
Lower to the ground the pads (4) of the outrigger jack, by pulling the locking pin (5) out of its housing. The
telescope and the pad will come down because of gravity. When it is close to ground, engage again the pin
in the appropriate hole, securing it with the relevant safety retainer (6). Turn the crank handle (7) until the
ground is reached, bearing in mind what was explained above regarding the vehicle suspension.
• Repeat this sequence of operations for the outrigger jack on the other side of the truck and for every
other jack fitted on the truck. Make sure that the vehicle is leveled, in order to have a good stability.
Maximum allowed angle is 3°.
IMPORTANT
Proper leveling has to be checked by means of a level instrument fitted on the truck.
