39

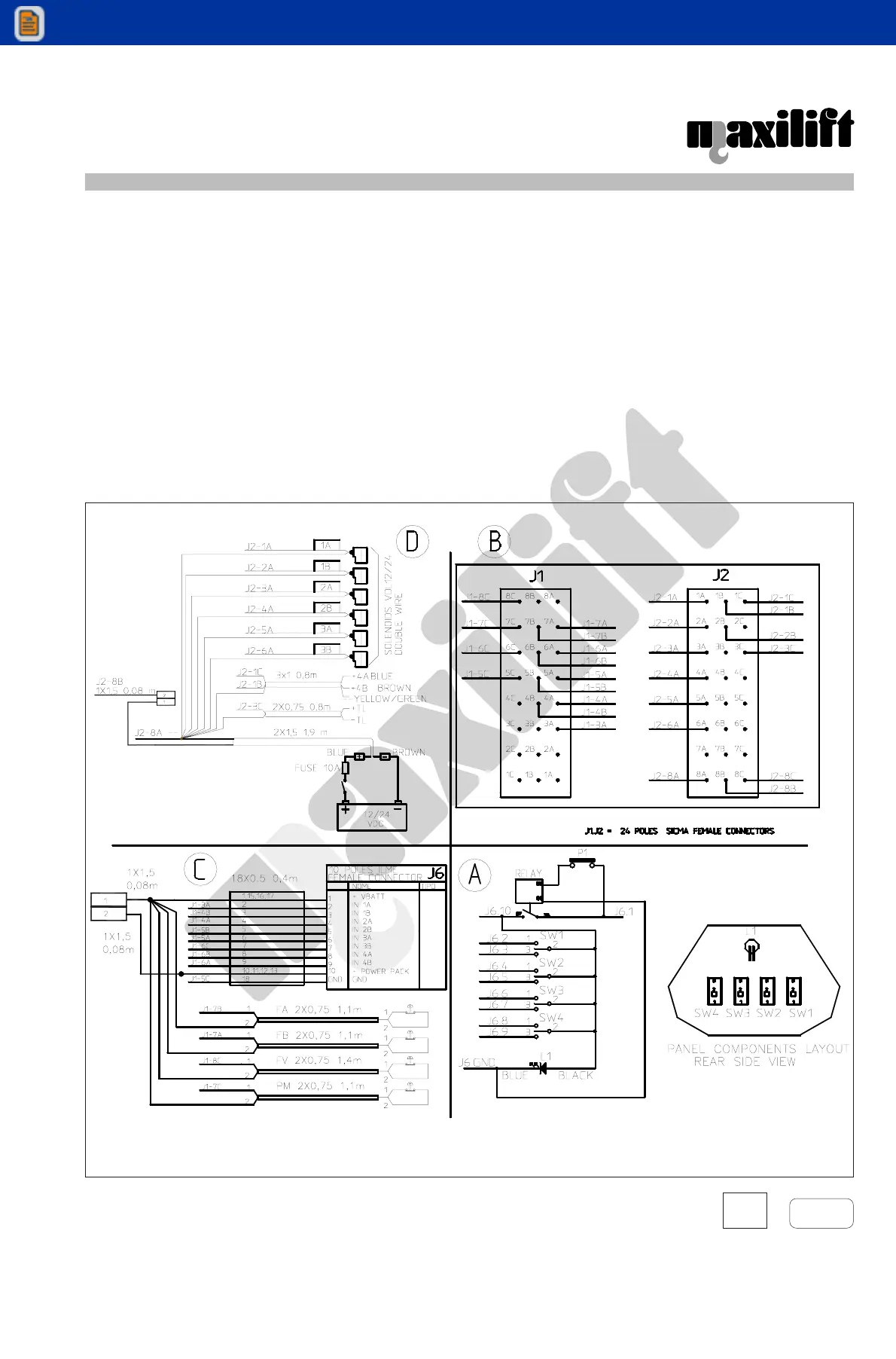

Pict. 20
A - Remote control box 1A - Clockwise rotation magnet
B - Electronic power unit 1B - Counter clockwise rotation magnet
C - Limit switch wiring 2A - Boom raising magnet
D - Solenoid wiring 2B - Boom lowering magnet
SW1 - Crane rotation selector 3A - Boom extension magnet
SW2 - Boom movement selector 3B - Boom re-entry magnet
SW3 - Extension selector FA - Winch lowering stop end system
SW4 - Winch selector FB - Boom lowering stop end system
L1 - Green led FV - Snatch block stop end system
J1 - 24 poles female connector PM - Pressure switch solenoid
J2 - 24 poles female connector P1 - Emergency push button
J5 - 10 poles male connector
J6 - 10 poles female connector
VM - Max pressure valve
Rev.1
04/06
