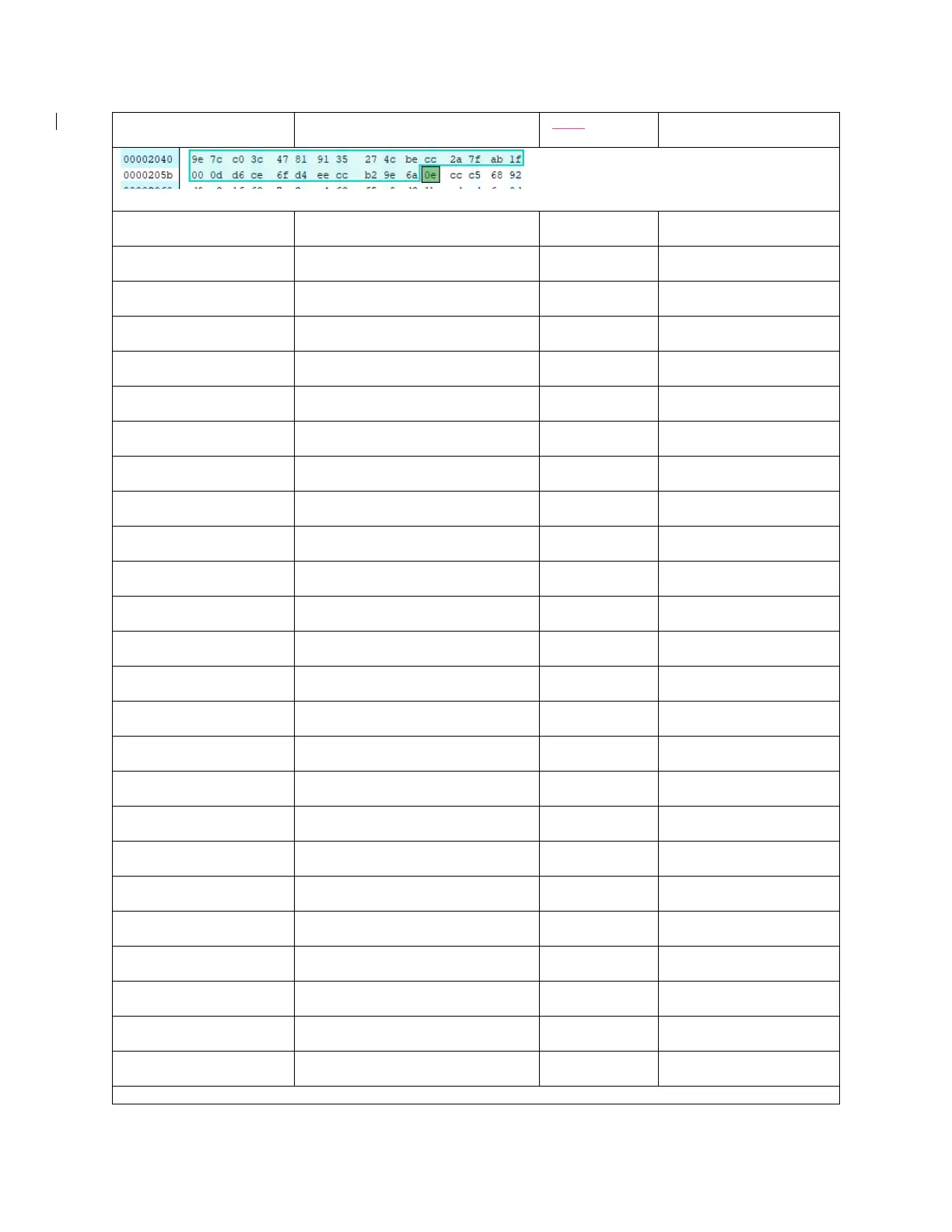

Figure 11. Send page bytes 0x4C to 0x205B from the .msbl file.
0xAA 0x80 0x04 0xCC 0xC5
0x68 ... 0xF7 0xD6 0x4C*
Bootloader flash. Send page bytes 0x205C
to 0x406B from the .msbl file.
0xAA 0x80 0x04 0x2E 0xA6
0x13 ... 0x84 0xF7 0xCF*
Bootloader flash. Send page bytes 0x406C
to 0x607B from the .msbl file.
0xAA 0x80 0x04 0xD7 0x1F
0x7F ... 0x55 0xAB 0xB8*
Bootloader flash. Send page bytes 0x607C
to 0x808B from the .msbl file.
0xAA 0x80 0x04 0xC4 0x63
0x2B ... 0x48 0xCD 0x52*
Bootloader flash. Send page bytes 0x808C
to 0xA09B from the .msbl file.
0xAA 0x80 0x04 0x89 0x33
0x22 ... 0x31 0xAD 0x19*
Bootloader flash. Send page bytes 0xA09C
to 0xC0AB from the .msbl file.
0xAA 0x80 0x04 0x8B 0x97
0x18 ... 0xF3 0xCF 0x90*
Bootloader flash. Send page bytes 0xC0AC
to 0xE0BB from the .msbl file.
0xAA 0x80 0x04 0xD0 0x78
0x38 ... 0x1F 0x7F 0x92*
Bootloader flash. Send page bytes 0xE0BC
to 0x100CB from the .msbl file.
0xAA 0x80 0x04 0xB1 0xE9
0x8F ... 0xF4 0x23 0xD8*
Bootloader flash. Send page bytes
0x100CC to 0x120DB from the .msbl file.
0xAA 0x80 0x04 0xF8 0xC6
0x83 ... 0xF4 0x24 0xE2*
Bootloader flash. Send page bytes
0x120DC to 0x140EB from the .msbl file.
0xAA 0x80 0x04 0x1F 0x4F
0x5C ... 0xCC 0x2E 0xCD*
Bootloader flash. Send page bytes 0x140EC
to 0x160FB from the .msbl file.
0xAA 0x80 0x04 0x40 0x1F
0x03 ... 0x26 0xEB 0xB9*
Bootloader flash. Send page bytes 0x160FC
to 0x1810B from the .msbl file.
0xAA 0x80 0x04 0x2F 0xD9
0xB2 ... 0xEE 0x2A 0x8F*
Bootloader flash. Send page bytes 0x1810C
to 0x1A11B from the .msbl file.
0xAA 0x80 0x04 0x51 0x32
0x47 ... 0x41 0xE6 0x47*
Bootloader flash. Send page bytes
0x1A11C to 0x1C12B from the .msbl file.
0xAA 0x80 0x04 0x22 0xA6
0x06 ... 0x2A 0xCB 0x44*
Bootloader flash. Send page bytes
0x1C12C to 0x1E13B from the .msbl file.
0xAA 0x80 0x04 0x68 0x9E
0x1E ... 0x53 0x89 0xE8*
Bootloader flash. Send page bytes 0x1E13C
to 0x2014B from the .msbl file.
0xAA 0x80 0x04 0x5F 0x1A
0x6A ... 0x14 0xA1 0x85*
Bootloader flash. Send page bytes 0x2014C
to 0x2215B from the .msbl file.
0xAA 0x80 0x04 0xE8 0xDE
0xC9 ... 0x81 0xD8 0x00*
Bootloader flash. Send page bytes 0x2215C
to 0x2416B from the .msbl file.
0xAA 0x80 0x04 0x0E 0xD2
0x16 ... 0x8D 0x69 0xEE*
Bootloader flash. Send page bytes 0x2416C
to 0x2617B from the .msbl file.
0xAA 0x80 0x04 0x2F 0x4B
0x38 ... 0x02 0xA7 0xDC*
Bootloader flash. Send page bytes 0x2617C
to 0x2818B from the .msbl file.
0xAA 0x80 0x04 0xA5 0xFE
0xFD ... 0xE3 0x38 0x89*
Bootloader flash. Send page bytes 0x2818C
to 0x2A19B from the .msbl file.
0xAA 0x80 0x04 0x52 0x88
0x9A ... 0xF0 0xC5 0x9D*
Bootloader flash. Send page bytes
0x2A19C to 0x2C1AB from the .msbl file.
0xAA 0x80 0x04 0xA3 0xA6
0x92 ... 0xA0 0x4D 0xBE*
Bootloader flash. Send page bytes
0x2C1AC to 0x2E1BB from the .msbl file.
0xAA 0x80 0x04 0x47 0x09
0x75 ... 0x24 0xBD 0x3D*
Bootloader flash. Send page bytes
0x2E1BC to 0x301CB from the .msbl file.
0xAA 0x80 0x04 0x44 0xEC
0xE6 ... 0xBC 0xC9 0x5E*
Bootloader flash. Send page bytes
0x301CC to 0x321DB from the .msbl file.
0xAA 0x80 0x04 0xD3 0x58
0x34 ... 0x62 0x00 0x37*
Bootloader flash. Send page bytes
0x321DC to 0x341EB from the .msbl file.
Sequence the MAX32664 to enter application mode. *
