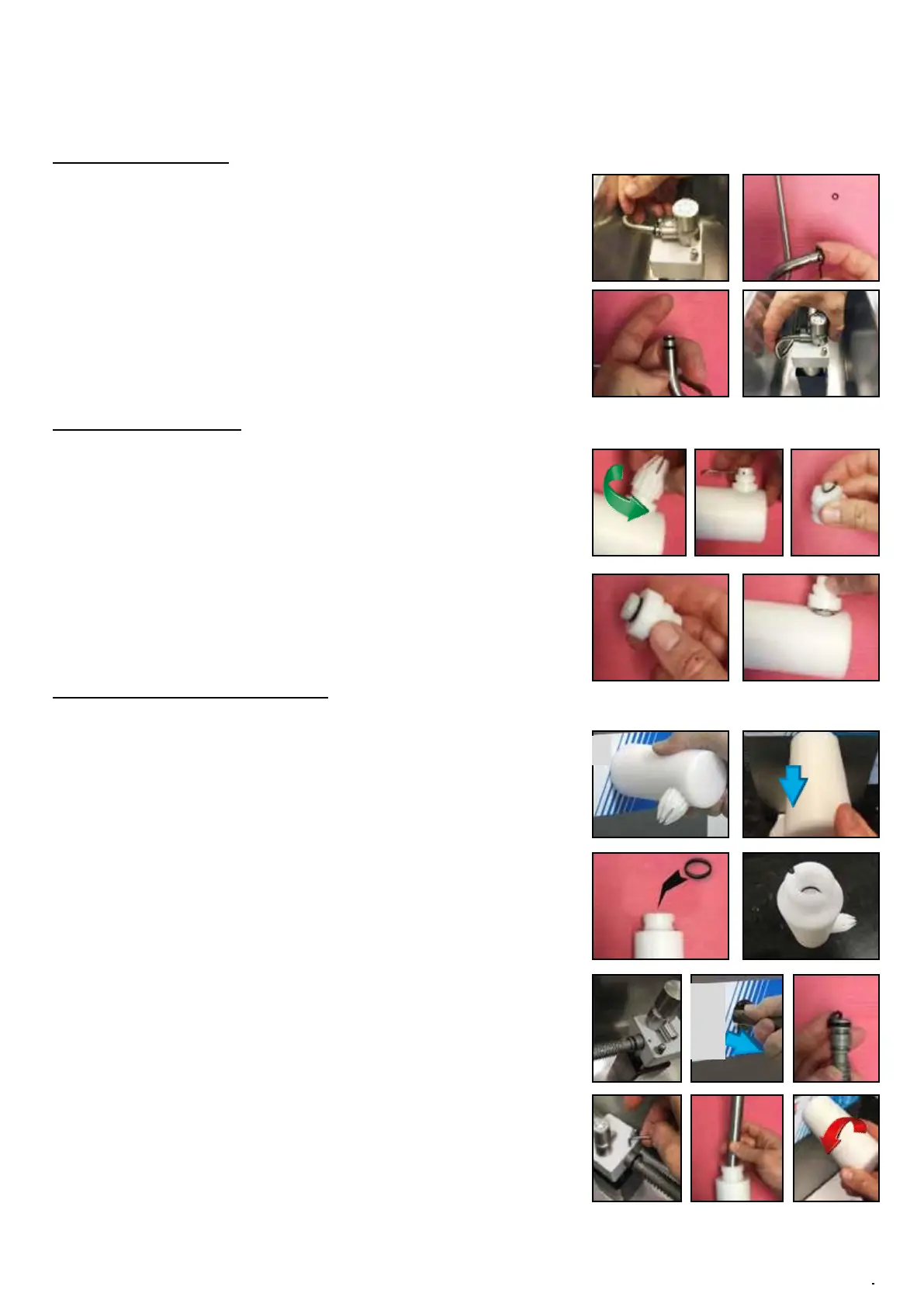

Aspiration tube gaskets
• Remove the aspiration tube from the air regulator and take out the
worn gaskets using a non-metallic pointed tool, taking care not to
damage the housing.
• Eliminate any product residues from the housings and fit the new
gaskets, lubricating them with the food-safe grease supplied. Repo-
sition the aspiration tube in the air regulator.
Cream distributor gasket:
• Unscrew the outlet nozzle from the cream distributor by turning it in
an anticlockwise direction, using the labyrinth fixing rod and unscrew
the cream distributor from the dispensing tap. Remove the worn
gasket from the distributor using a non-metallic pointed tool, taking
care not to damage the housing.
• Eliminate any product residues from the housing and fit the new gas-
ket, lubricating it with the food-safe grease supplied. Screw the cream
distributor back onto the dispensing tap and then the outlet nozzle.
Dispensing tap and labyrinth gaskets
• Rotate the dispensing tap by 45°, in a clockwise direction, and remove
it from the machine and then remove the labyrinth tube. Remove the
worn gasket from the tap using a non-metallic pointed tool, taking
care not to damage the housing.
• Eliminate any product residues from the housing and fit the new
gasket, lubricating it with the food-safe grease supplied.
• Remove the labyrinth fixing rod from the pump cover and extract
the labyrinth from the machine. Remove the worn gasket from the
labyrinth using a non-metallic pointed tool, taking care not to dam-
age the housing.
• Eliminate any product residues from the housing and fit the new
gasket, lubricating it with the food-safe grease supplied.
• Reposition the labyrinth in the pump cover and lock it in place using
the fixing rod. Insert the labyrinth tube in the dispensing tap and then
fit the slot in the tap onto the pin located on the hole in the machine’s
front panel. Then turn it by 45°, in an anticlockwise direction, to lock
the dispensing tap.
