Final Assembly

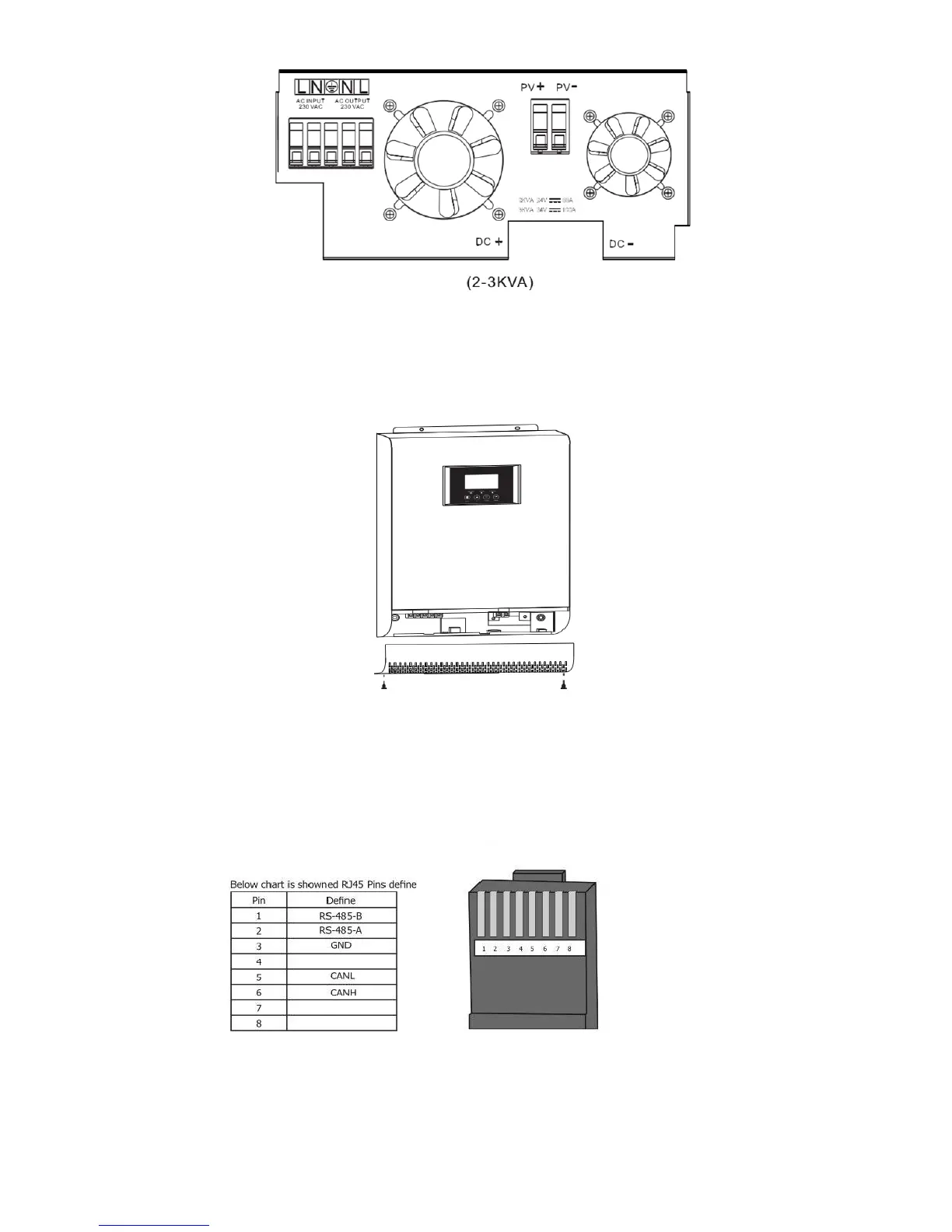

After connecting all wirings, please put bottom cover back by screwing two screws as shown below.

Communication Connection

Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer

and follow on-screen instruction to install the monitoring software. For the detailed software operation, please

check user manual of software inside of CD.
