maximo PV2024 HM - Specifications

24
SPECIFICATIONS
Table 1 Line Mode Specifications
INVERTER MODEL
2024
3024
Input Voltage Waveform
Sinusoidal
Nominal Input Voltage
230Vac
Low Loss Voltage
90Vac±7V(APL, GEN); 170Vac±7V(UPS)
186Vac±7V(VDE)
Low Loss Return Voltage
100Vac±7V(APL, GEN);180Vac±7V(UPS)
196Vac±7V(VDE)
High Loss Voltage
280Vac±7V(APL, UPS,GEN)
253Vac±7V(VDE)
High Loss Return Voltage
270Vac±7V(APL, UPS,GEN)
250Vac±7V(VDE)
Max AC Input Voltage
300Vac
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Low Loss Frequency
40HZ±1HZ(APL, UPS,GEN)
47.5HZ±0.05HZ(VDE)
Low Loss Return Frequency
42HZ±1HZ(APL, UPS,GEN)
47.5HZ±0.05HZ(VDE)
High Loss Frequency
65HZ±1HZ(APL, UPS,GEN)
51.5HZ±0.05HZ(VDE)
High Loss Return Frequency
63HZ±1HZ(APL, UPS,GEN)
50.05HZ±0.05HZ(VDE)
Output Short Circuit Protection
Line mode: Circuit Breaker
Battery mode: Electronic Circuits
Efficiency (Line Mode)
>95% ( Rated R load, battery full charged )
Transfer Time
10ms typical (UPS, VDE)
20ms typical (APL)

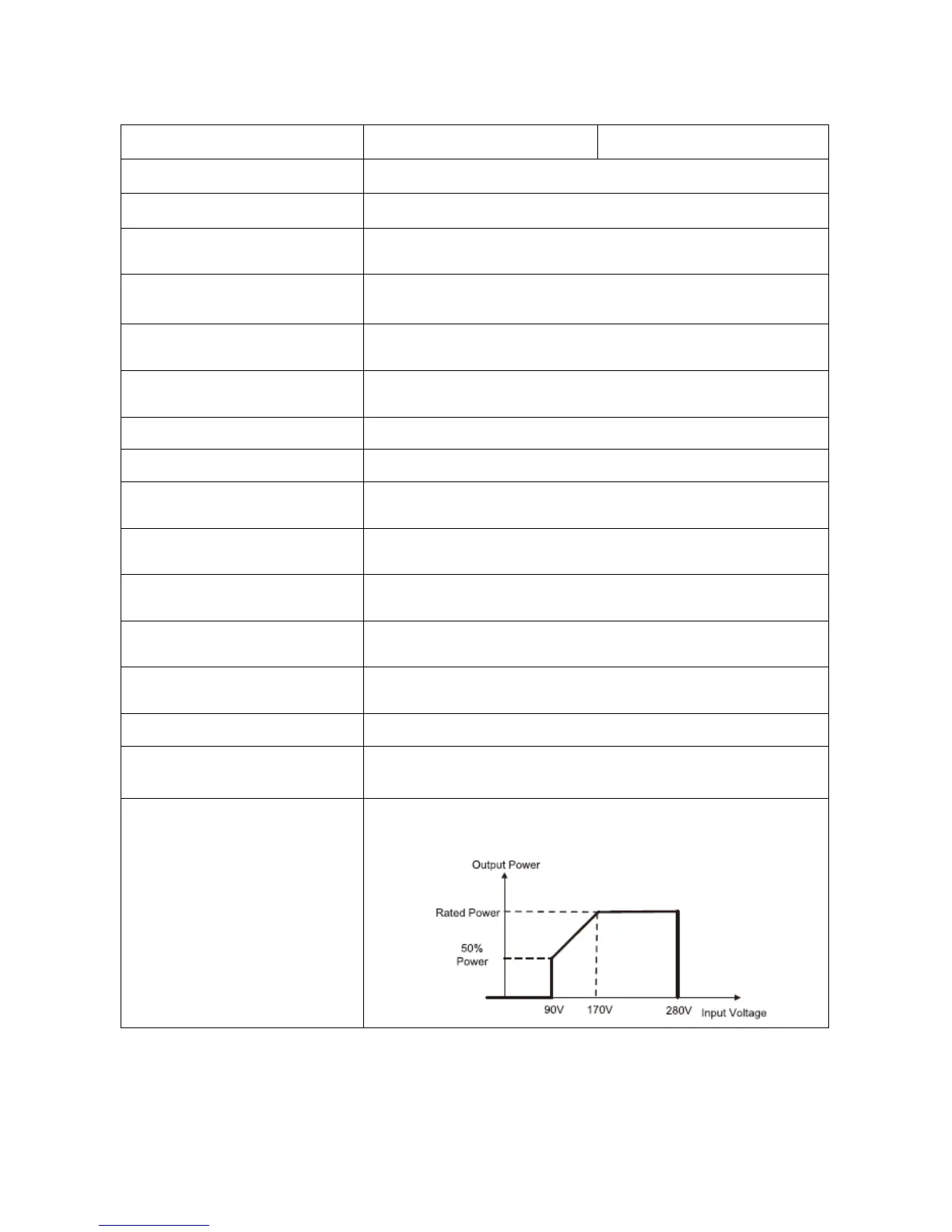

Output power derating:
When AC input voltage drops to
170V depending on models, the
output power will be de-rated
230Vac model:
