13
LED Indicator
LED Indicator
Messages
AC/INV
Green
Solid On
Output is powered by AC in Line mode.
Flashing
Output is powered by battery or PV in battery mode
CHG
Yellow
Flashing
Battery is charging or discharging.
FAULT
Red
Solid On
Fault occurs in the inverter.
Flashing
Warning condition occurs in the inverter.
Function Keys
Function Key
Description
MENU
Enter or exit setting mode or go to previous selection.
UP
Increase the setting data.
DOWN
Decrease the setting data.
ENTER
Enter setting mode and Confirm the selection in setting mode or go to next
selection.

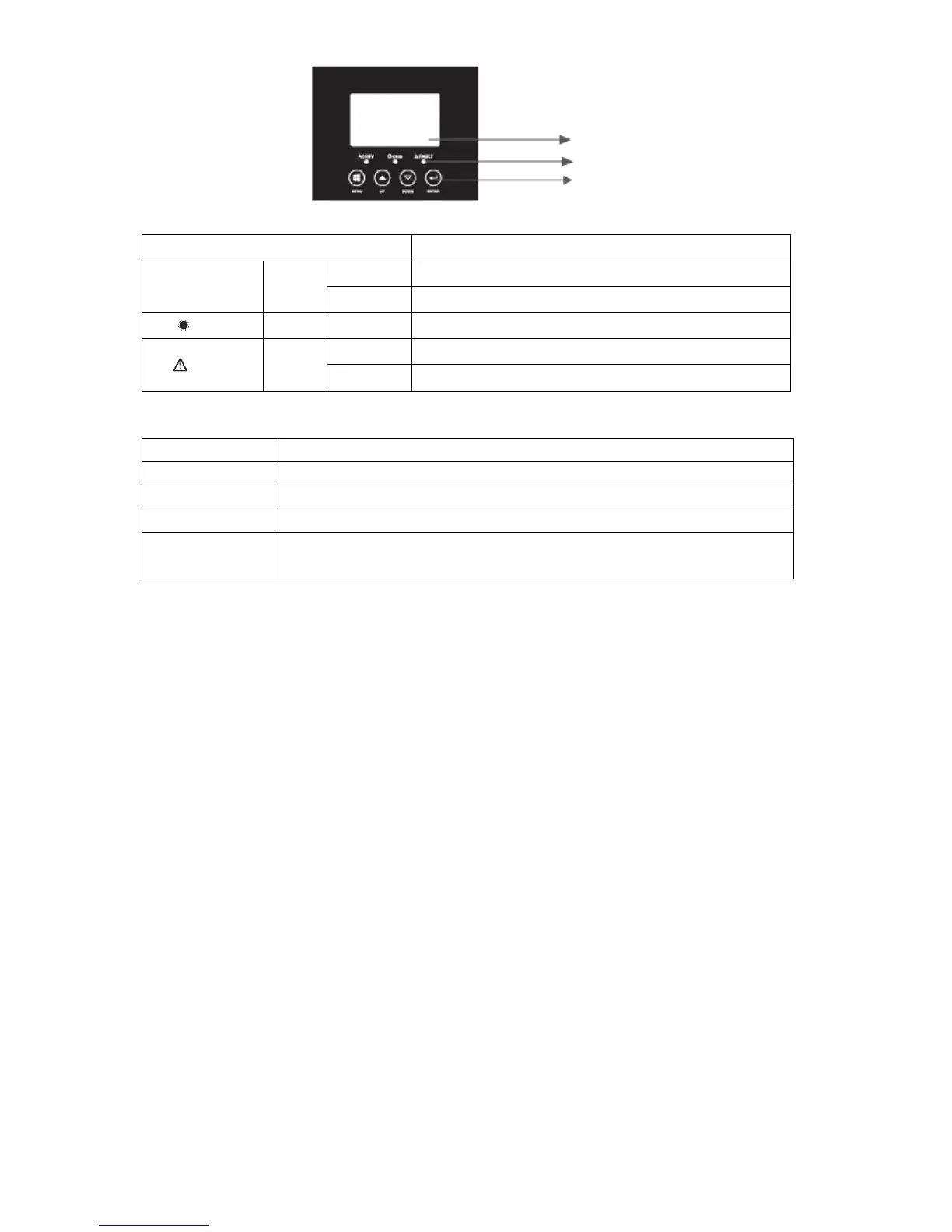

LCD display
LED indicators
Function keys
