All panels in the same network can communicate with each others. An event, which occurs in a panel,
can be seen from every panel in the network. Furthermore, one panel can control other panels (Reset,
Silence Sounder etc.)
All models of Maxlogic Series Fire Alarm Control Panels can operate in the same network.
(ML-121X.N, ML-123X.N, ML-124X.N, ML-125X.N)
** GCU (Gateway Controller) allows the network to be monitored graphically and controlled remotely
from a distant place. GCU connect to the network line as a control panel. The panels must be
connected to each other with FTP Cat6 Network Cable.
(See, Annex-F Network Connection Scheme.)

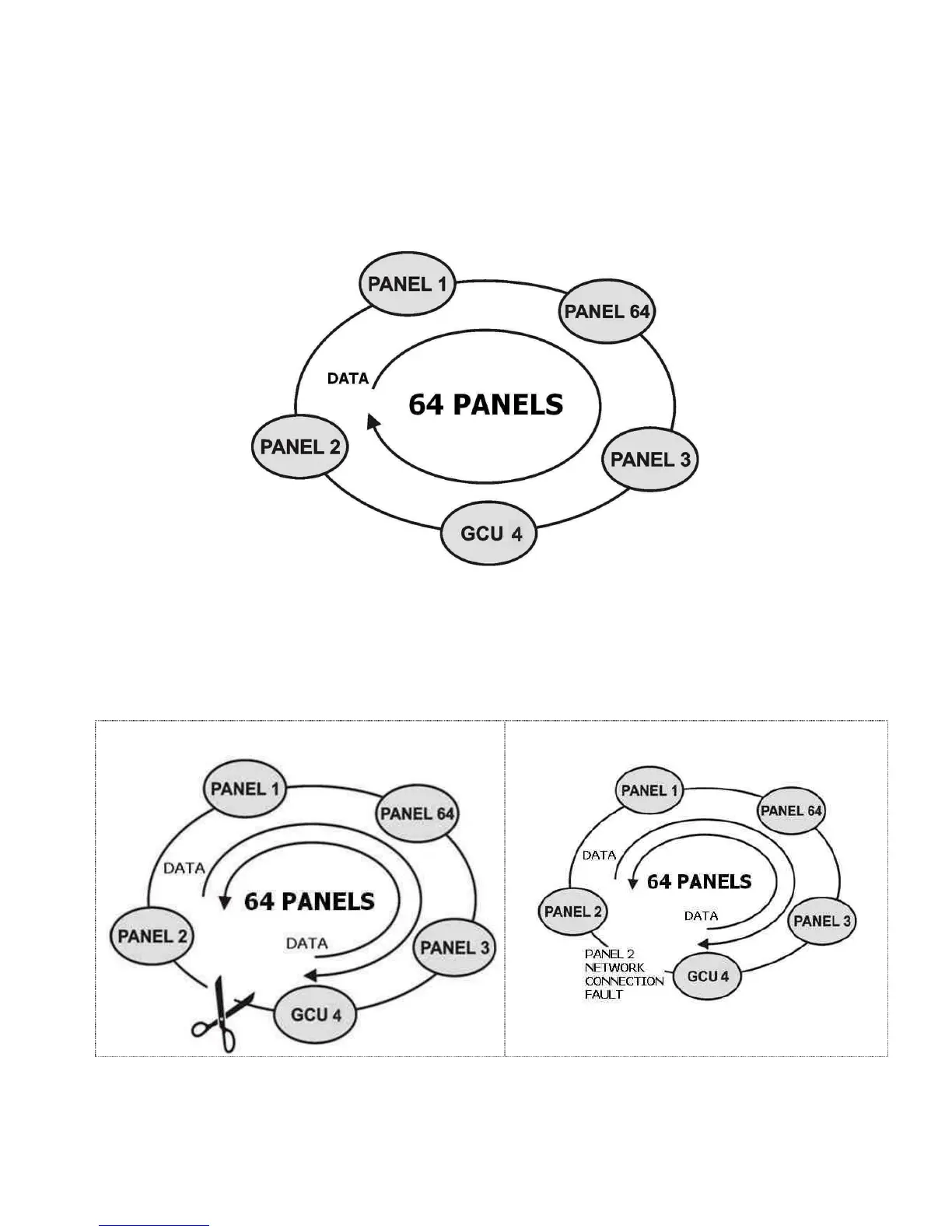

In case of open circuit (broken line), network continues
operating.
In case of open circuit fault of the network line, the
system can detect the exact point of problem.
Switch Settings on Network Card:
ML-1201 Network Module has 2 switches related to the networking.
