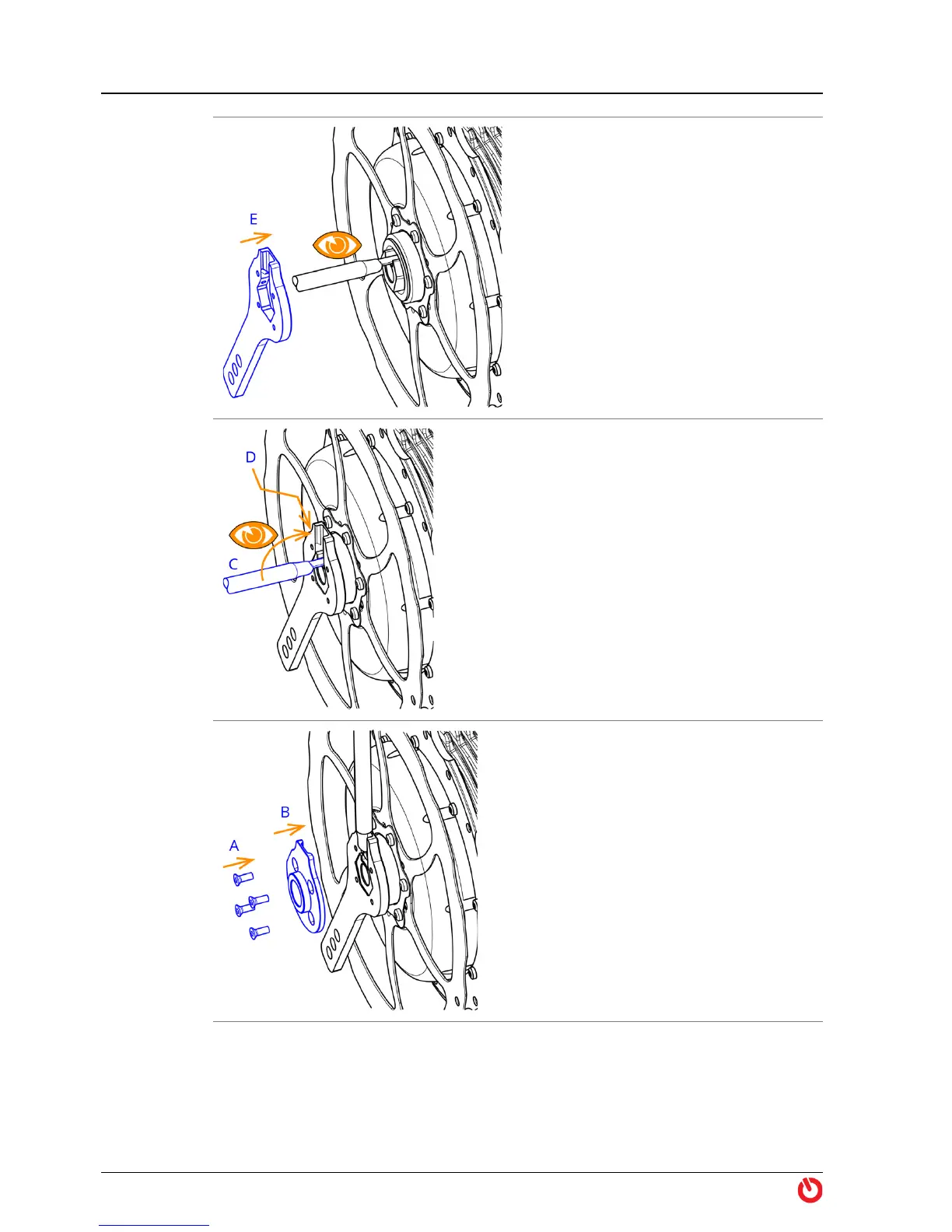

Mount
torque lever
8) Align cable cutouts of torque
lever (E) and hub.
IMPORTANT!
Do not damage cable.
9) Carefully put torque lever in
axial direction over cable
and plug, slide onto hub.
Mount
set screw
Fold up cable
10) Radially align torque lever.
11) Carefully tighten set screw
(D). Do not apply thread-
locker!
12) Carefully fold up cable (C) by
approx. 90° and insert into
groove.
Mount cover
13) Place cover (B) on torque
lever and align.
IMPORTANT!
The cable must entirely rest in
the groove. It must not protrude
nor be pinched in the separating
pane.
14) Mount screws (A) and lightly
tighten.
15) Check cover for correct fit.
16) Tighten screws crosswise
until parts fully contact.
