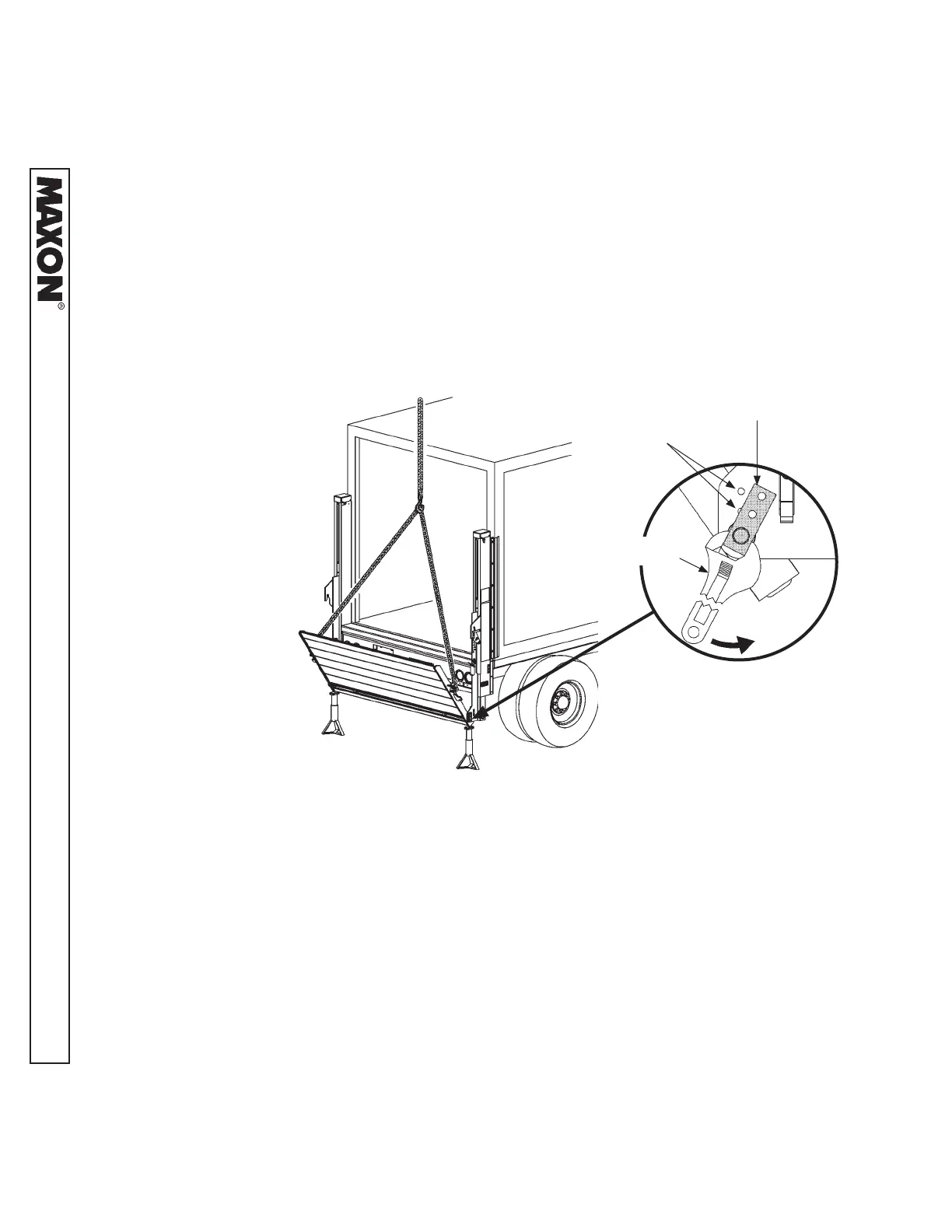

FIG. 32-1A

REPLACING PLATFORM & RUNNER PIN

FIG. 32-1

7. Insert the RH torsion bar pin. Use

a large wrench to rotate the RH

pin counterclockwise to line up the

pin holes with the threaded holes

in the RH runner (FIGS. 32-1

and 32-1A). Next, bolt RH pin to

RH runner using cap screws and

washers removed in step 3.

PLATFORM &

RUNNER PIN

WRENCH

THREADED

HOLES

8. Do the RH TORSION BAR ADJUSTMENT

procedure in this manual.

TORSION BAR REPLACEMENT - Continued

PERIODIC MAINTENANCE
