11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
40

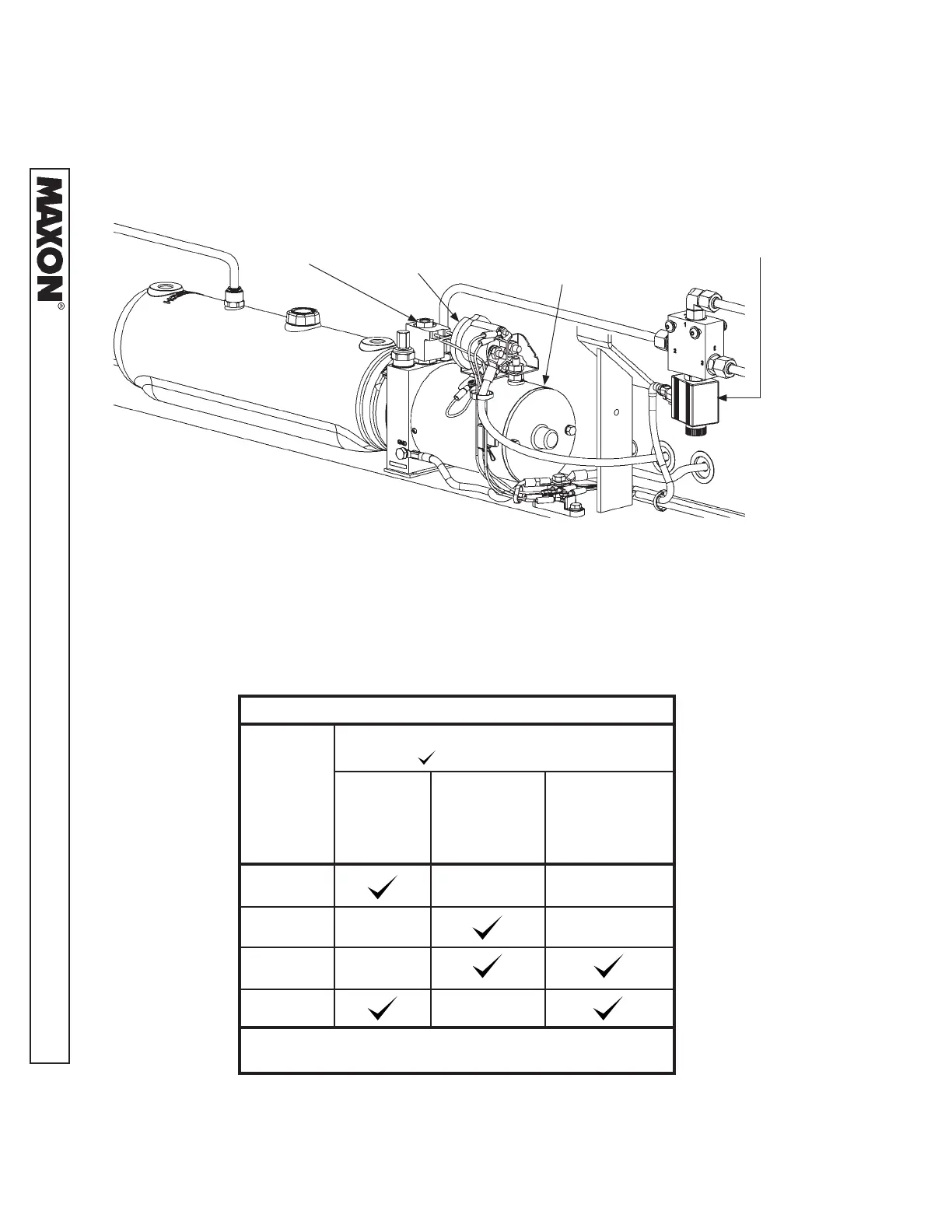

PUMP MOTOR & VALVE OPERATION
(EQUIPPED WITH HYDRAULIC CLOSER)
TABLE 40-1
POWER UNIT
FIG. 40-1
STARTER
SWITCH
MOTOR
LOWERING
VALVE
FOLD/UNFOLD VALVE
ASSEMBLY
SYSTEM DIAGRAMS - Continued
POWER UNIT MOTOR & VALVE OPERATION
LIFTGATE
FUNCTION
REMOTE VALVE OPERATION
( MEANS ENERGIZED)
MOTOR
LOWERING
VALVE
FOLD/UNFOLD
VALVE
RAISE
LOWER
UNFOLD
FOLD
REFER TO VALVES SHOWN ON
HYDRAULIC SCHEMATIC
