Page 5 of 36 M-21-08 REV.B

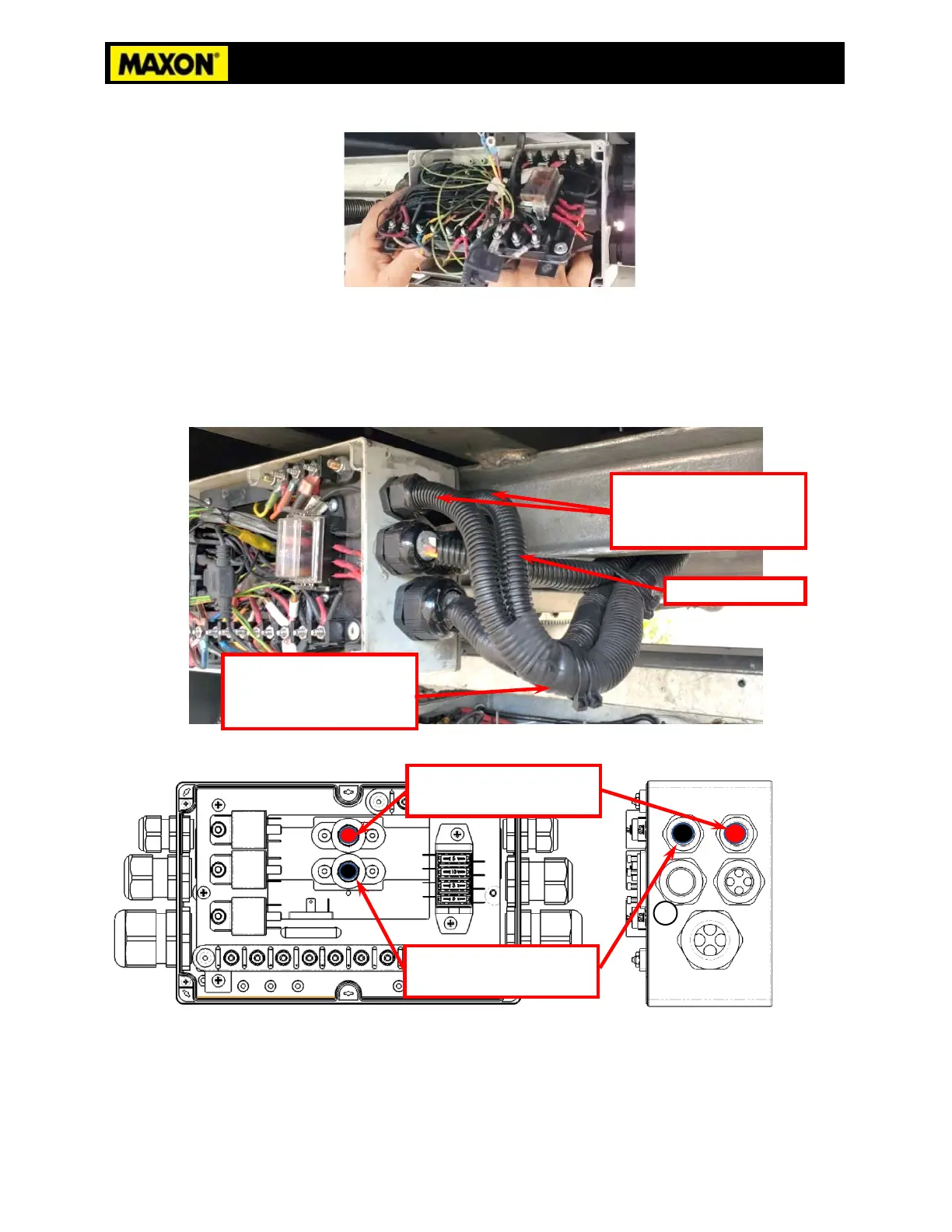

7. The backing plate can now be rotated to improve access to cord grips and wires.
8. Run Purkey Severe Service positive and negative charge lines through top two cord grips and
install into Junction Box. Crimp 2-gauge battery lugs onto cables and heat shrink. Connect
cables as shown below and tighten cord grip outer nuts to compress and seal grommet on
cables.
• Provide drip loop for all cables running into Junction Box.
POSITIVE AND NEGATIVE
CHARGE LINES
ALL CABLES RUNNING
INTO JUNCTION BOX.
POSITIVE CABLE
NEGATIVE CABLE
To Next Page
