Page 6 of 36 M-21-08 REV.B

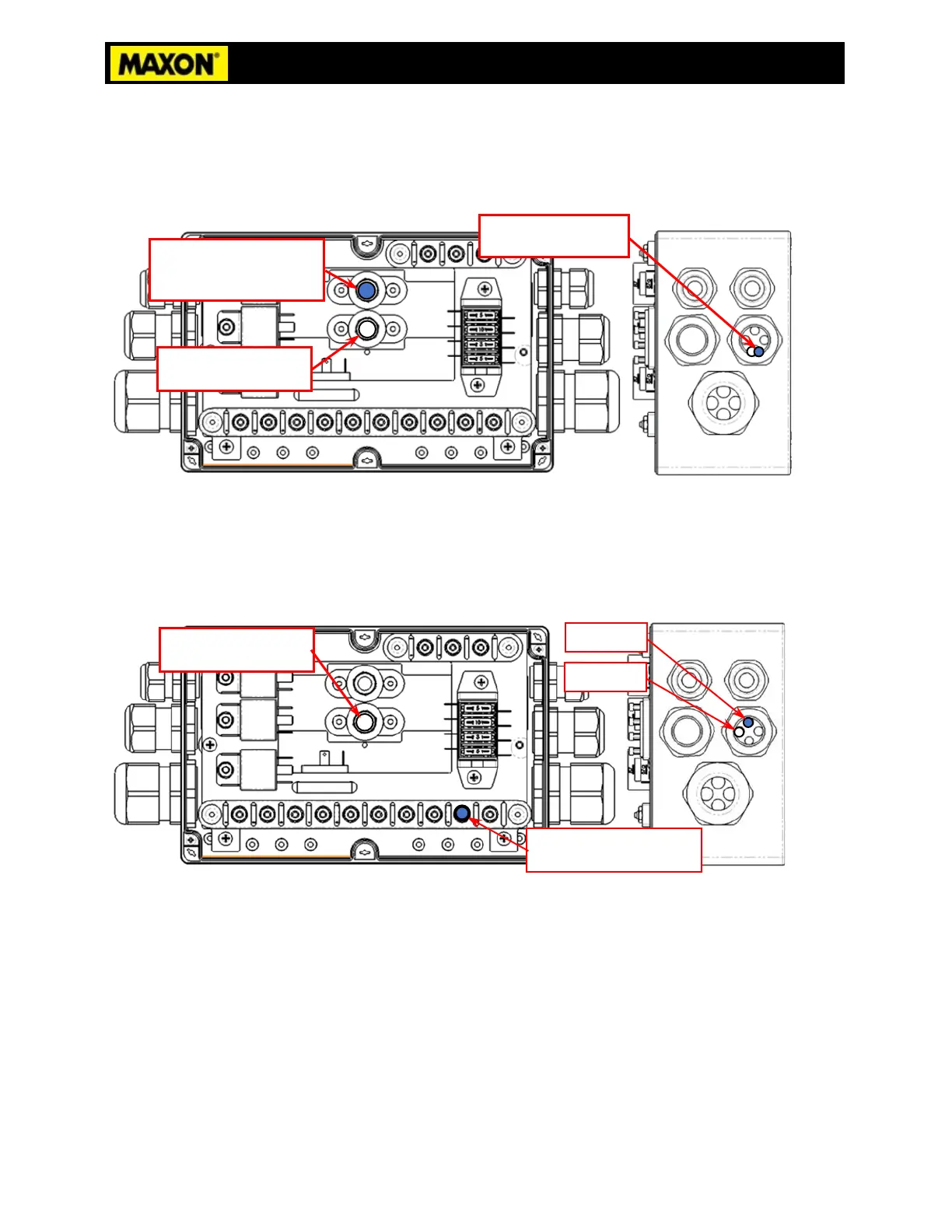

9. Run loomed trailer DOME light wires (BLUE & WHITE) in Cable Guide towards Junction Box.
Route wires into Junction Box through a single cord grip grommet hole as shown below.
Crimp 3/8” ring terminal to the white wire. Heat shrink terminal and connect to 3/8”
ground stud. Crimp installer supplied fuse holder to the blue wire and connect to 3/8”
positive stud as shown below.
10. Run loomed trailer OVERHEAD PLATFORM LIGHT wires (BLUE & WHITE) in center Cable
Guide towards Junction Box. Route wires into Junction Box through the two cord grip
grommet holes shown below. Crimp 3/8” ring terminal to the white wire. Heat shrink
terminal and connect the white wire to 3/8” ground stud. Crimp fuse holder to the blue
wire and connect to terminal 9 as shown below.
• Tighten cord grip outer nut to compress and seal grommet on all four wires.
• Provide drip loop for all cables running into Junction Box.
BLUE WIRE BUTT CONNECTED
TO FUSE HOLDER TO TERMINAL
WHITE WIRE WITH 3/8” RING
TO 3/8” GROUND STUD
BLUE & WHITE WIRE THRU
SAME GROMMET HOLE
WHITE WIRE WITH 3/8”
RING TO 3/8” GROUND
TO FUSE HOLDER TO TERMINAL
To Next Page
