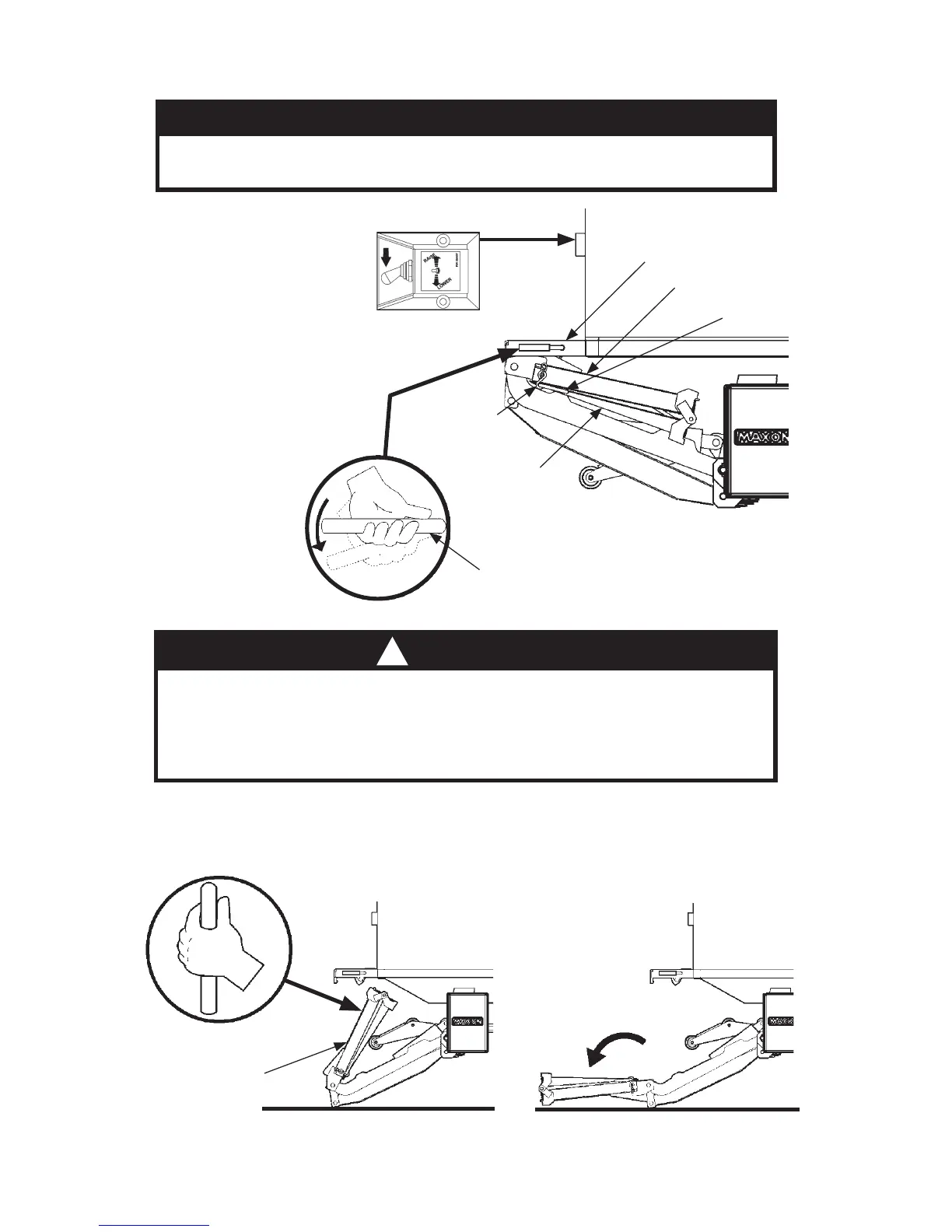

1. Standing to the side of
platform (FIG. 14-1),
push down control
handle if equipped
(FIG.14-1A), and push
the toggle switch to
LOWER position as
shown in FIG. 14-1B.
Release control handle
after platform is low-
ered about 2 inches.
Never operate control switch while unfolding (and folding)
platform and fl ipover. Always use handle on side of fl ipover
to unfold (and fold) fl ipover. Holding the fl ipover any other
way can create a hazard and injure operator.
WARNING
!
FIG. 14-1A
CONTROL HANDLE
(IF EQUIPPED)
EXTENSION
PLATE
FIG. 14-1
CHAIN
& HOOK
FLIPOVER
HANDLE
FIG. 14-2A
PLATFORM
PLATFORM
OPERATION
2. Lower the platform (FIG. 14-2) until it touches
the ground. Use handle (FIG. 14-2A) to unfold
the platform (FIG. 14-3).
PLATFORM LOWERED
FIG. 14-2
FIG. 14-1B
Before lowering Liftgate, make sure chain (FIG. 14-1A) is se-
cured to platform and hooked to handle on the fl ipover.
CAUTION
UNFOLDING PLATFORM
FIG. 14-3
