600
530
!
! This is a built-in oven, and its back wall
and one side wall can be placed next to a
high piece of furniture or a wall.Coating
or veneer used on fitted furniture must be
applied with a heat- resistant adhesive
(100℃).This prevents surface deforma-
tion or detachment of the coating.

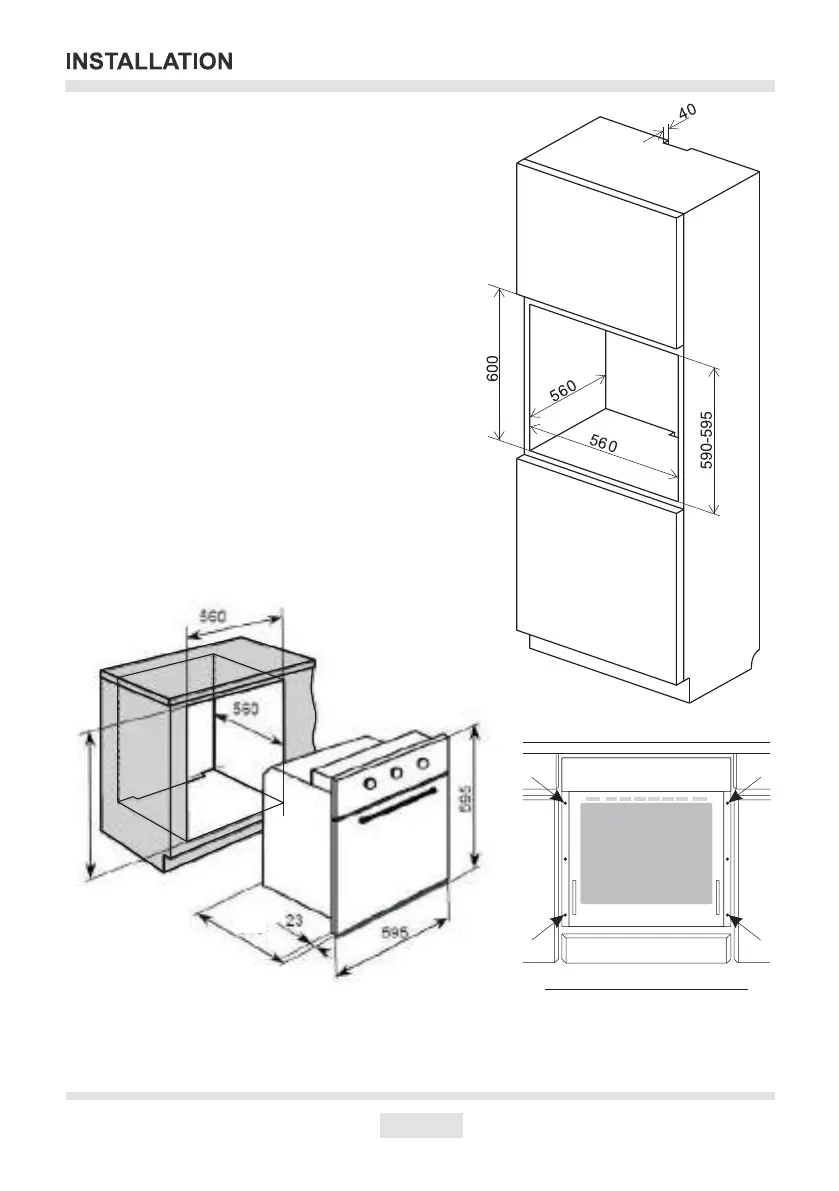

! Make an opening with the dimensions
given
in
the diagram for the oven to be
fitted.
! Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
! Insert the oven completely into the opening
without allowing the four screws in the
places shown in the diagram to fall out.
Product Dimensions
Height:
595mm
Width:
595mm
Depth:
530mm
Aperture Dimensions
600mm
560mm
560mm(min)
9
The
kitchen area should be dry and well
ventilated.
When
installing
the
oven,
ensure
easy access
to all control elements.
The
