-8-

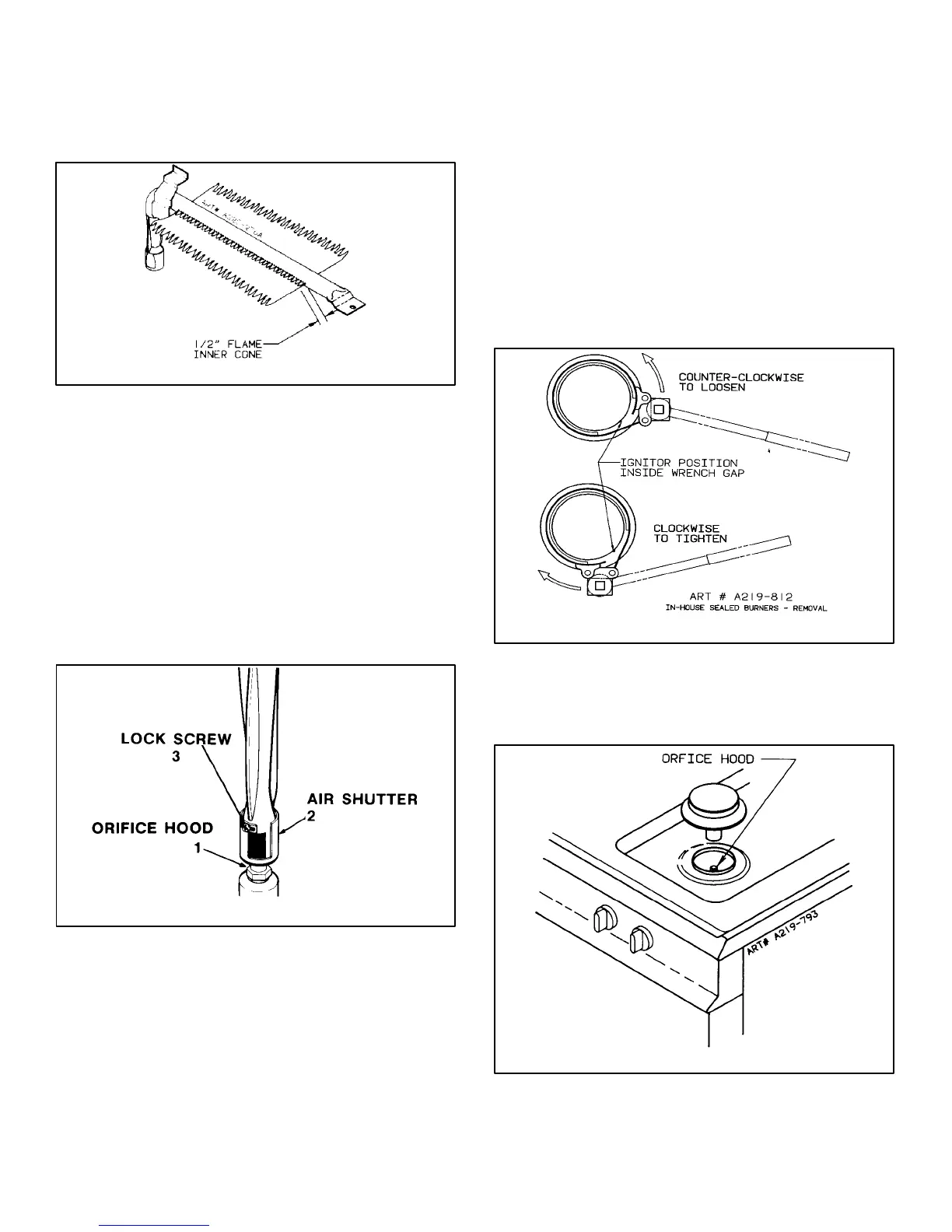

Air Shutter - Oven Burner
a. The approximate length of the flame of oven burner is
a 1/2 inch distinct inner blue flame, figure 8.
FIGURE 8
b. Oven burner flame can be checked as follows:
1. Yellow flame on burner - open burner air shutter
to the widest opening that will not cause the flame
to lift or blow off the burner when cold. (See #2 on
figure 9).
2. Distinct blue flame but lifting - close burner air
shutter to the point where it will not cause the
flame to lift or blow off the burner when cold. (See
#2 on figure 9).
c. The oven burner air shutter adjustment is the same on
ranges with a gas pilot or electric ignition.
FIGURE 9
Removing Sealed Burner For Adjustment Or
Service:
Mark ignitor location relative to main top with pencil. This
mark on the main top is used as a reference point when
replacing the burner assembly to insure that the burner is
tightened to its original position.
Place burner wrench (part no. 8312D075-60, available
from your dealer or authorized service agency) over
surface burner assembly with ignitor positioned inside gap
in wrench ring (figure 10). This prevents ignitor from being
crushed when wrench tightens on burner assembly.
Rotate burner assembly approximately one-eighth turn
counter-clockwise and lift from main top (figure 11).
FIGURE 10
To Reassemble: Replace burner assembly in main top
and rotate approximately one-eighth turn clockwise using
burner wrench until burner locks into position with ignitor
aligned with reference mark on main top.
FIGURE 11
