Maytag MDB4949SDM Installation Instructions

12

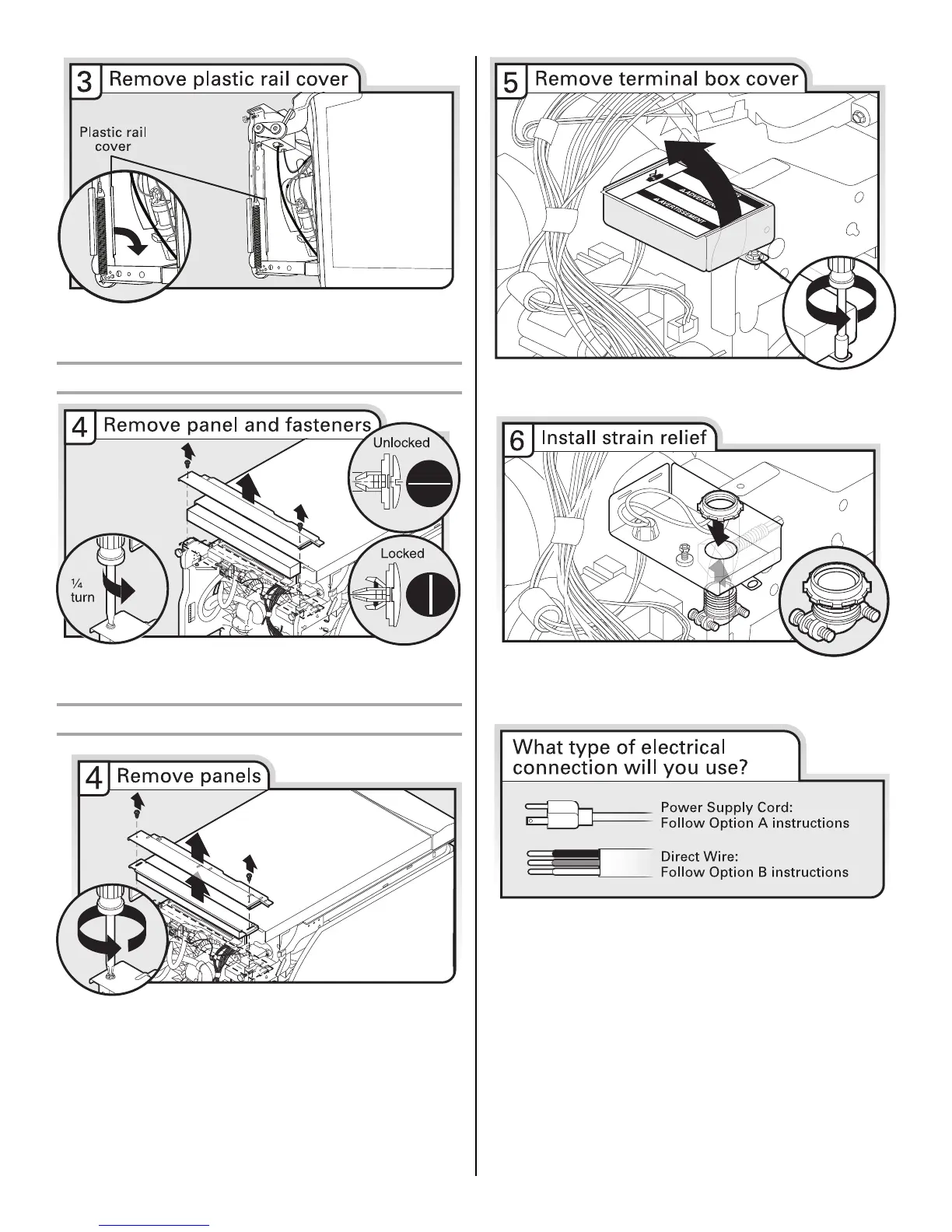

Remove and discard the plastic rail cover on each side of the
dishwasher frame. To remove the plastic rail cover, push upward
and back to unsnap it from the dishwasher frame.
Option A, Remove Access Panel - Plastic Panel
Using a flat-blade screwdriver, turn the plastic fasteners ¼ turn
counterclockwise to unlock them. Remove panel. Do not remove
tech sheet from access panel.
Option B, Remove Access Panel - Metal Panel
Using a ¹⁄₄" hex-head socket, nut driver or Phillips screwdriver,
remove 2 screws attaching access panel and lower panel to
dishwasher. Do not remove tech sheet from access panel.
Using a ¹⁄₄" hex head socket, nut driver or Torx
®
T20
®
screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
NOTE: If using Option B, proceed to “Determine Cabinet
Opening,” to continue with the installation of your dishwasher.

Maytag MDB4949SDM Specifications

General

Style	built-in dishwashers
Color	monochromatic stainless steel, stainless steel
Cycle Selections	powerblast, auto, normal, quick, rinse
Options/Settings	heated dry, hi temp wash, sani rinse®, control lock, 1-24 hour delay
Delay Start	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	yes
Food Disposer	yes
Sanitize Settings	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	25.2 inches
