Maytag MDB4949SDM Installation Instructions

8

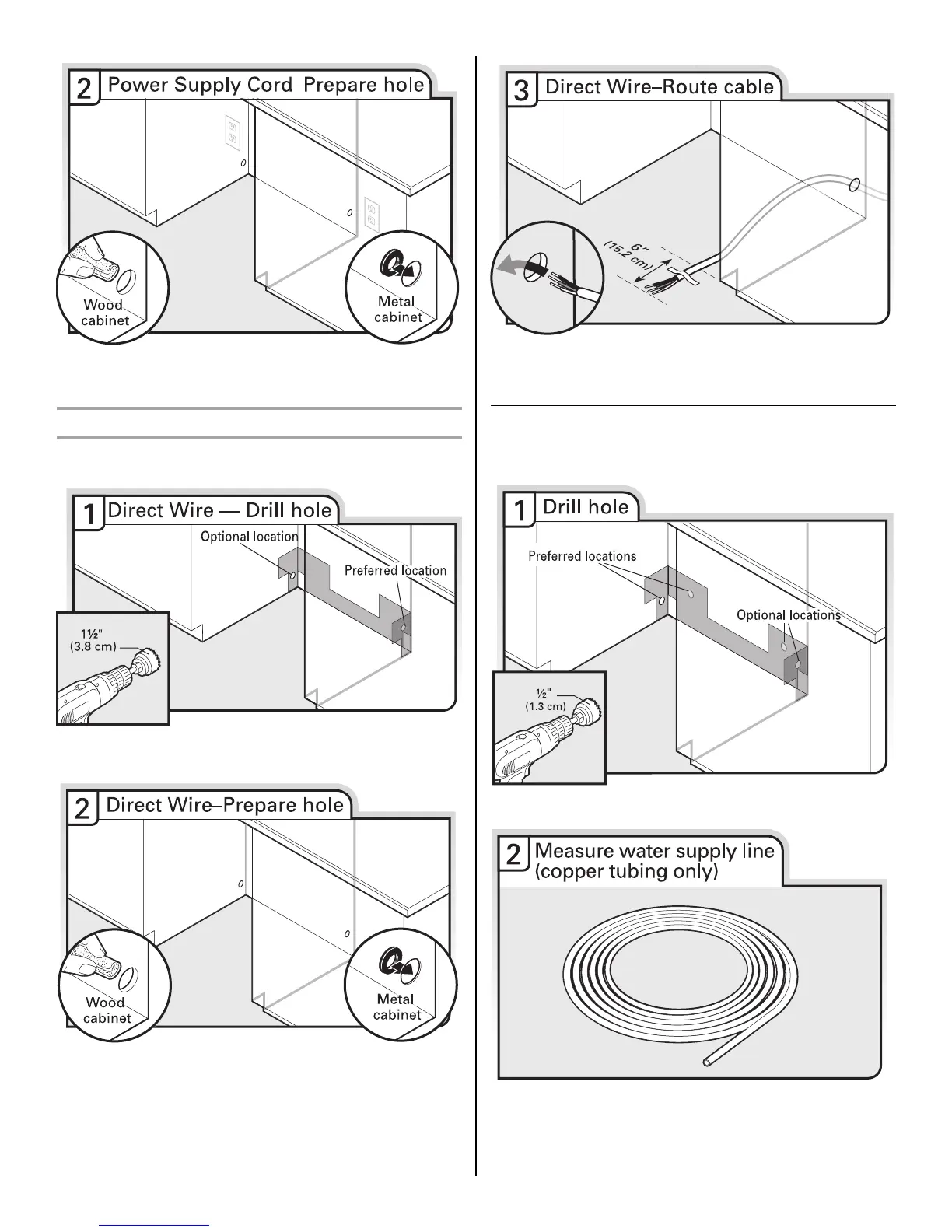

Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet included with power
supply cord kit.
Option B, Direct Wire:
Helpful Tip: Wiring the dishwasher will be easier if you route the
cable into the cabinet opening from the right-hand side.
Drill a 1¹⁄₂" (3.8 cm) hole in right-hand cabinet side or rear.
See “Product and Cabinet Opening Dimensions” section.
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (Part Number 302797 -
not provided).
Route cable from power supply through cabinet hole (cable must
extend to the right front side of cabinet opening). Tape cable to
the floor in area shown. This will prohibit cable from moving when
dishwasher is moved into cabinet opening.
Prepare and Route Water Line
Helpful Tip: Routing the water line through the left side of cabinet
opening will make water connection easier.
Drill a ¹⁄₂" (1.3 cm) hole in the cabinet side or rear.
Measure overall length of copper tubing for the water supply line.

Maytag MDB4949SDM Specifications

General

Style	built-in dishwashers
Color	monochromatic stainless steel, stainless steel
Cycle Selections	powerblast, auto, normal, quick, rinse
Options/Settings	heated dry, hi temp wash, sani rinse®, control lock, 1-24 hour delay
Delay Start	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	yes
Food Disposer	yes
Sanitize Settings	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	25.2 inches
