Maytag MDB4949SDM Installation Instructions

11

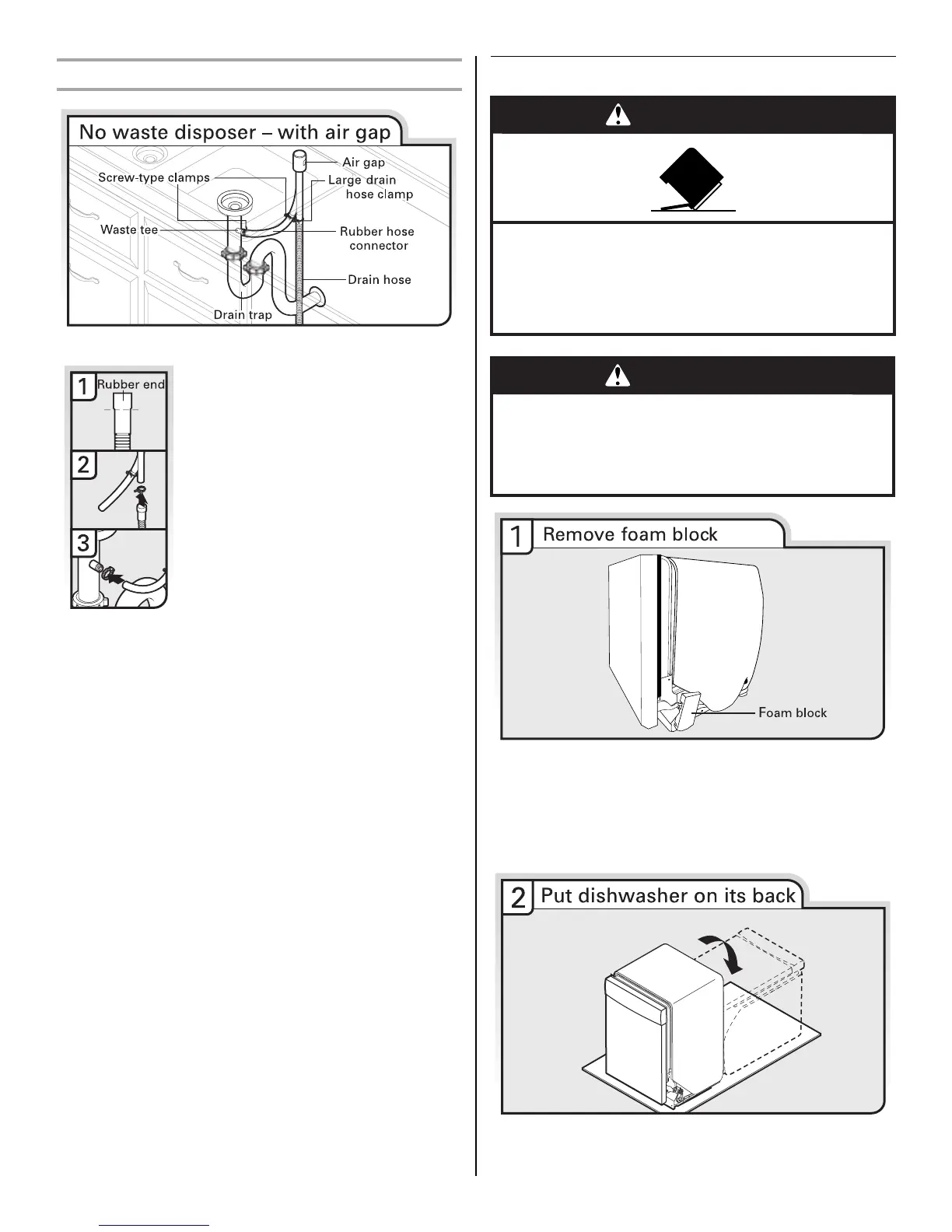

Option D, No waste disposer – with air gap
Prepare Dishwasher
Remove and discard the foam blocks (if blocks are present)
located above the front legs on each side of the dishwasher. The
blocks cover the rope/link pulleys on the dishwasher.
Helpful Tip: Place cardboard under dishwasher until installed in
cabinet opening to avoid damaging floor covering. Do not use
door panel as a worktable without first covering with a towel to
avoid scratching the door panel.
Using two or more people, grasp sides of dishwasher door frame
and place dishwasher on its back.
1. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach drain hose to air gap with
large drain hose clamp (provided).
Use pliers to squeeze clamp open
and move into position. If the drain
hose was cut, use a 1¹⁄₂" to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
3. Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from waste tee
to air gap.
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.

Maytag MDB4949SDM Specifications

General

Style	built-in dishwashers
Color	monochromatic stainless steel, stainless steel
Cycle Selections	powerblast, auto, normal, quick, rinse
Options/Settings	heated dry, hi temp wash, sani rinse®, control lock, 1-24 hour delay
Delay Start	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	yes
Food Disposer	yes
Sanitize Settings	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	25.2 inches
