4-3
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Open the control panel. (See page 4-1).
Remove the eight 1/4” hex head screws that
secure the control cover to the top of the
dryer. These screws are just sheet metal
screws so do not over tighten them when
reinstalling the control cover.
Remove the two 5/16” hex head screws that
secure the control cover to the metercase.
Remove the 5/16” hex head screw with
molded-in washer that secures the Earth
wire to the dryer top, in the console.
Lift the control cover off the top of the dryer
and pass the control panel through the
control cover to remove the control cover.
1.
2.
3.
4.
5.

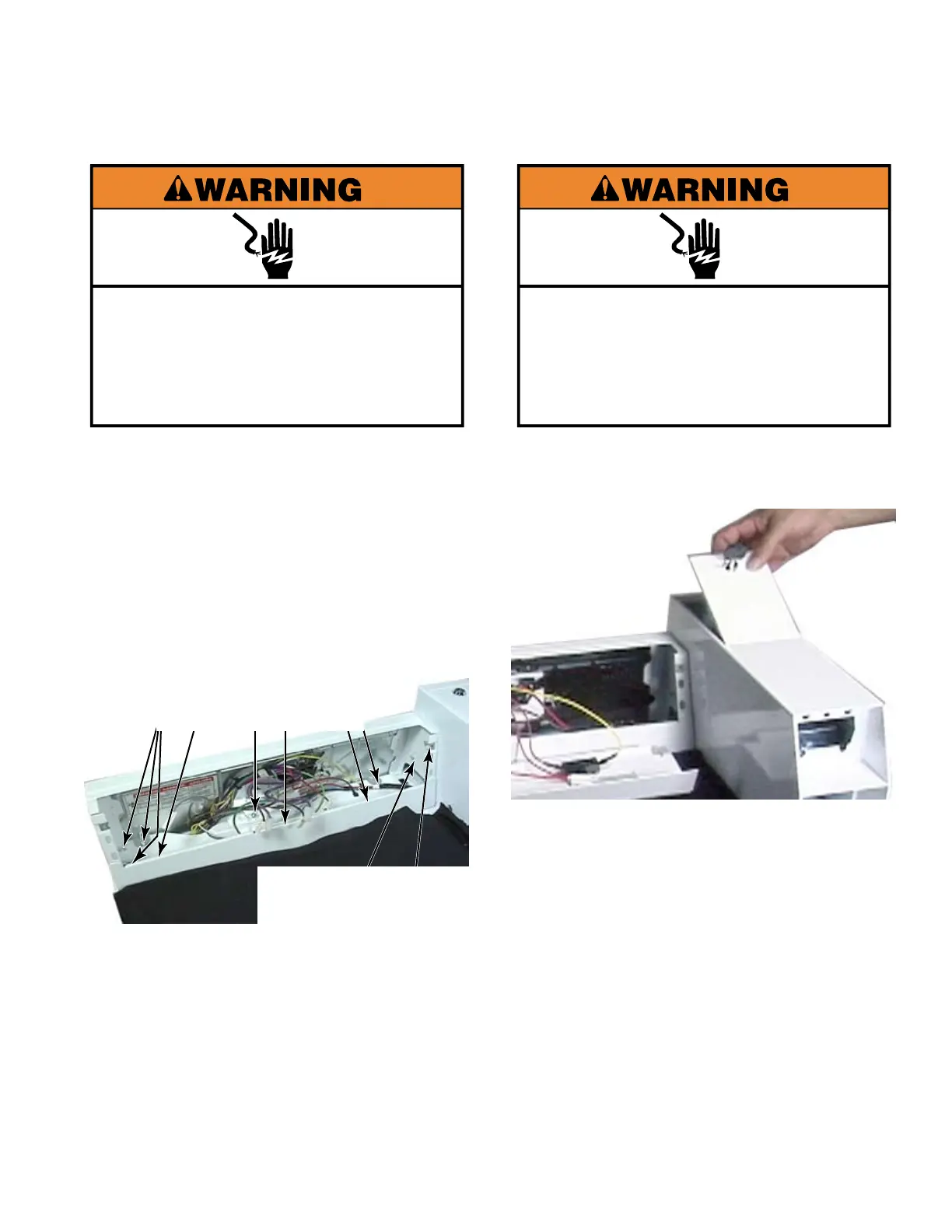

REMOVE CONTROL
COVER - CS
Eight 1/4” Hex Head
Screws Into Top
Two 5/16” Hex Head
Screws Into Metercase
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Unlock and remove the service access
door on top of the metercase.
1.
REMOVE SERVICE
ACCESS DOOR
To Next Page
