Maytag MDE17MN User Manual

4-8
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the coin box.
Remove two 1/2” hex head bolts in the coin
vault at the front of the metercase.
Remove the service access door on top of
the metercase (See page 4-3).
Remove the timer (See page 4-4).
Remove two 1/2” hex head bolts in the
bottom of the service access area. (See
photo at top of next column)
Remove the optional Security Bolt and
Cone if installed (See page 4-9).
1.
2.
3.
4.
5.
6.

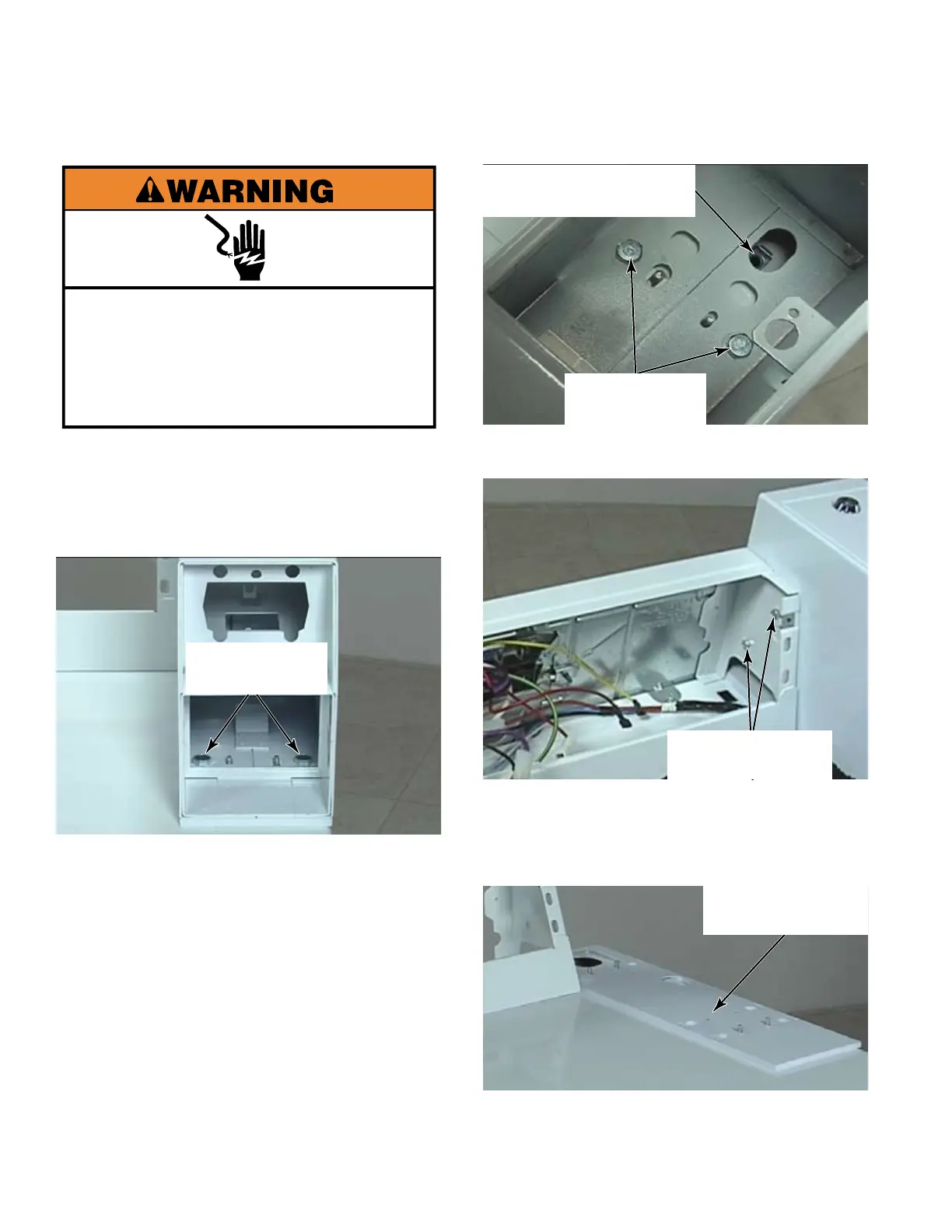

REMOVE METERCASE - CS
Two 1/2” Hex
Head Bolts
Remove two 5/16” hex head screws that
secure the control cover to the metercase.
Lift the metercase off the top of the dryer.
Remove the metercase pad by lifting it off
the top of the dryer.
7.
8.
9.
Two 1/2” Hex
Head Bolts
Two 5/16” Hex
Head Screws
Metercase Pad
Optional Security Bolt
& Cone Location
