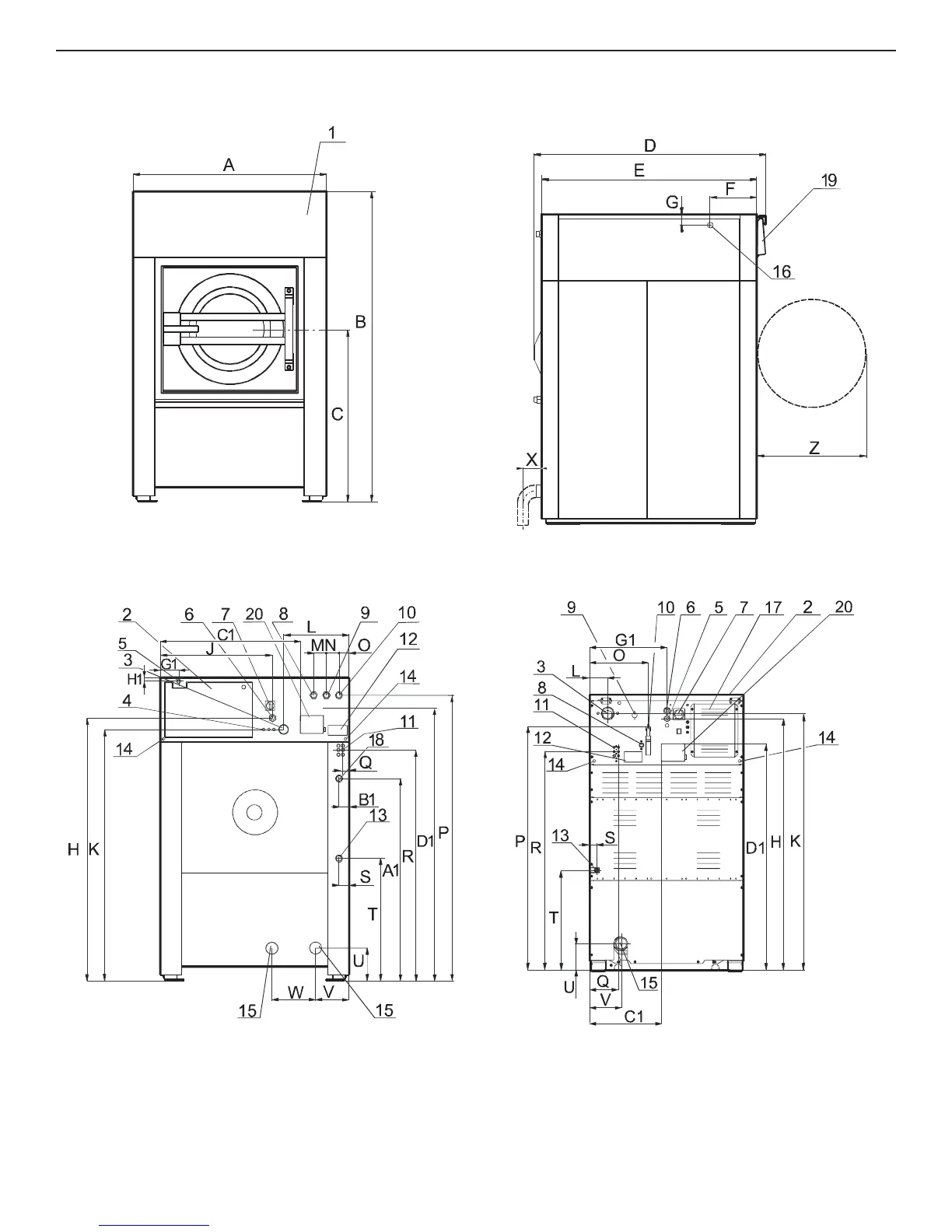

DIMENSIONS AND TECHNICAL SPECIFICATIONS
(Models MFS80, MFS100, and MFS125)
1. Front panel with operating
elements
2. Electric switchboard cover
3. Tub ventilation: 2.4"/60 mm
4. Lubrication
5. Turnbuckle soap supply cable
6. Main power supply bushing
7. Main switch
8. Hard cold water inlet
9. Hot water inlet
10. Soft cold water inlet
11. Hose connection external soap
supply
12. Data plate
13. Steam inlet
14. External terminal
15. Drain outlet
16. Soap hopper air relieve
17. Frequency inverter cover
18. Compressed air supply
19. Soap hoppers
20. Plastic box for electrical
connection to liquid soap
pumps
Front View
Side View
Top View Back View
To Next Page
