Maytag MFS80 - Models MFS230 and MFS275 with Tilting Feature; Dimensions and Connections; Technical Specifications

35

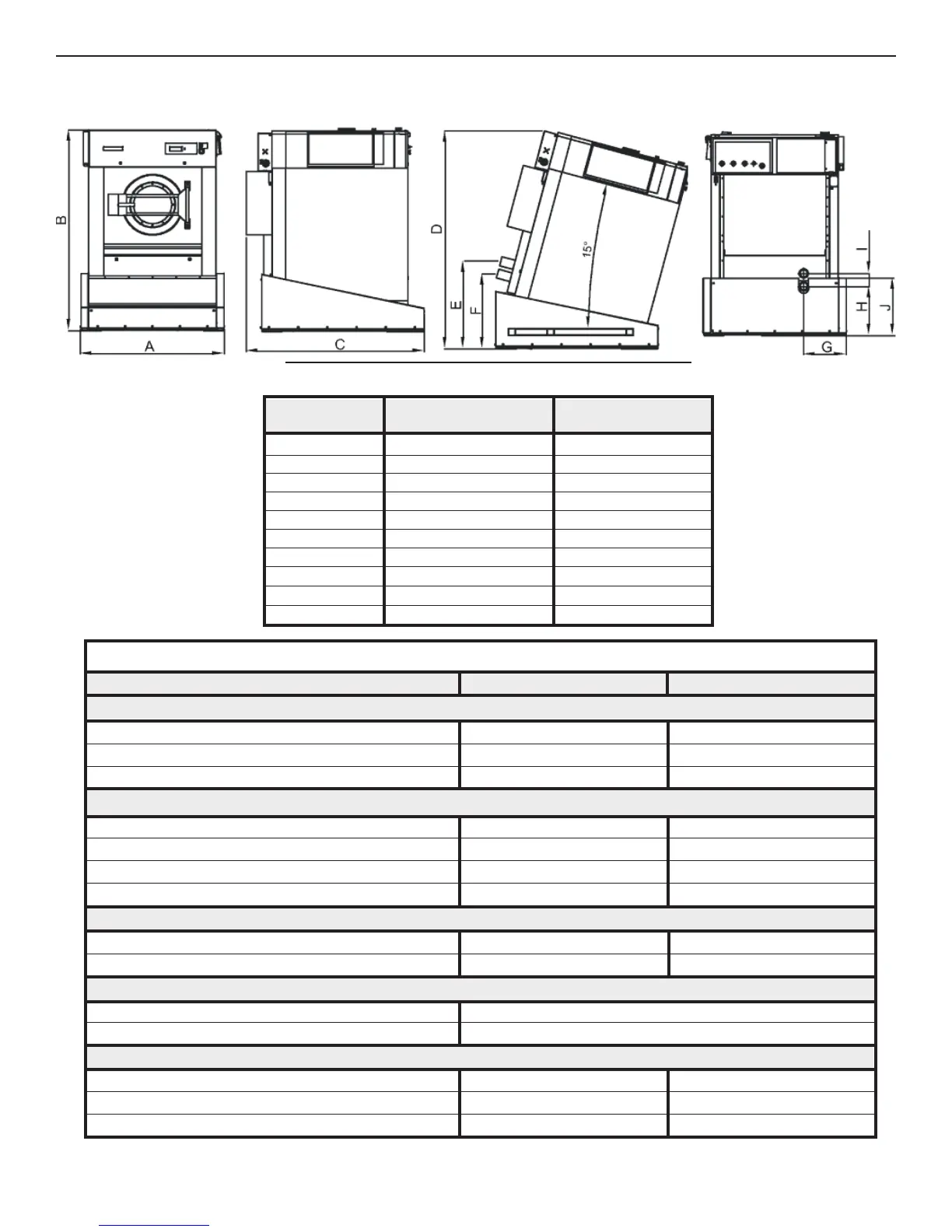

DIMENSIONS AND TECHNICAL SPECIFICATIONS
(Models MFS230 and MFS275 with Tilting Feature)
Dimensions and Connections
Washer
Capacity
230 lbs
(104 kg)
275 lbs
(125 kg)
A
B
C
D
E
F
G
H
I
J
73.22" (1860 mm)
86.41" (2195 mm)
86.41" (2195 mm)
97.55" (2478 mm)
40.11" (1019 mm)
34.01" (864 mm)
23.70" (602 mm)
20" (508 mm)
6.29" (160 mm)
27.24" (692 mm)
73.22" (1860 mm)
91.73" (2330 mm)
86.41" (2195 mm)
103.62" (2632 mm)
39.68" (1008 mm)
33.97" (863 mm)
24.64" (626 mm)
18.97" (482 mm)
5.9" (150 mm)
27.24" (692 mm)
Technical Specications (Models MFS230 and MFS275 with Tilting Feature)
* Maximum dimensions, including protruding parts
Washer Dimensions*
Width 73.22" (1860 mm) 73.22" (1860 mm)
Depth 86.41" (2195 mm) 86.41" (2195 mm)
Height 86.41" (2195 mm) 91.73" (2330 mm)
Packing Dimensions
Width 80.31" (2040 mm) 80.31" (2040 mm)
Depth 93.50" (2375 mm) 93.50" (2375 mm)
Height 97.63" (2480 mm) 97.63" (2480 mm)
Transportation Volume 425 ft
3
(12.01 m
3
) 425 ft
3
(12.01 m
3
)
Weight
Net 7761 lb (3520 kg) 8444 lb (3830 kg)
Gross 8290 lb (3760 kg) 8951 lb (4060 kg)
Electrical Requirements
Tilting system nominal motor output –
Protection –
MFS230 MFS275
Anchoring
Max. Static Load on Floor – –
Max. Dynamic Load on Floor – –
Frequency of Dynamic Load – –
