4
Water and Electric
■ 3/4" (19 mm) inlet valves for hot and cold water. Determine
water hardness levels. Hard or medium levels may require
a water softener.
■ A dedicated, GFCI-equipped circuit for each washer
(see “Electrical Requirements”).
Spacing
■ Washers require 2.4 ft (0.7 m) above the top for maintenance.
■ Washers require 0.79" (20 mm) between the sides for
maintenance and maximum door clearance.
■ Allow 20" (500 mm) behind washer and the wall for
maintenance.

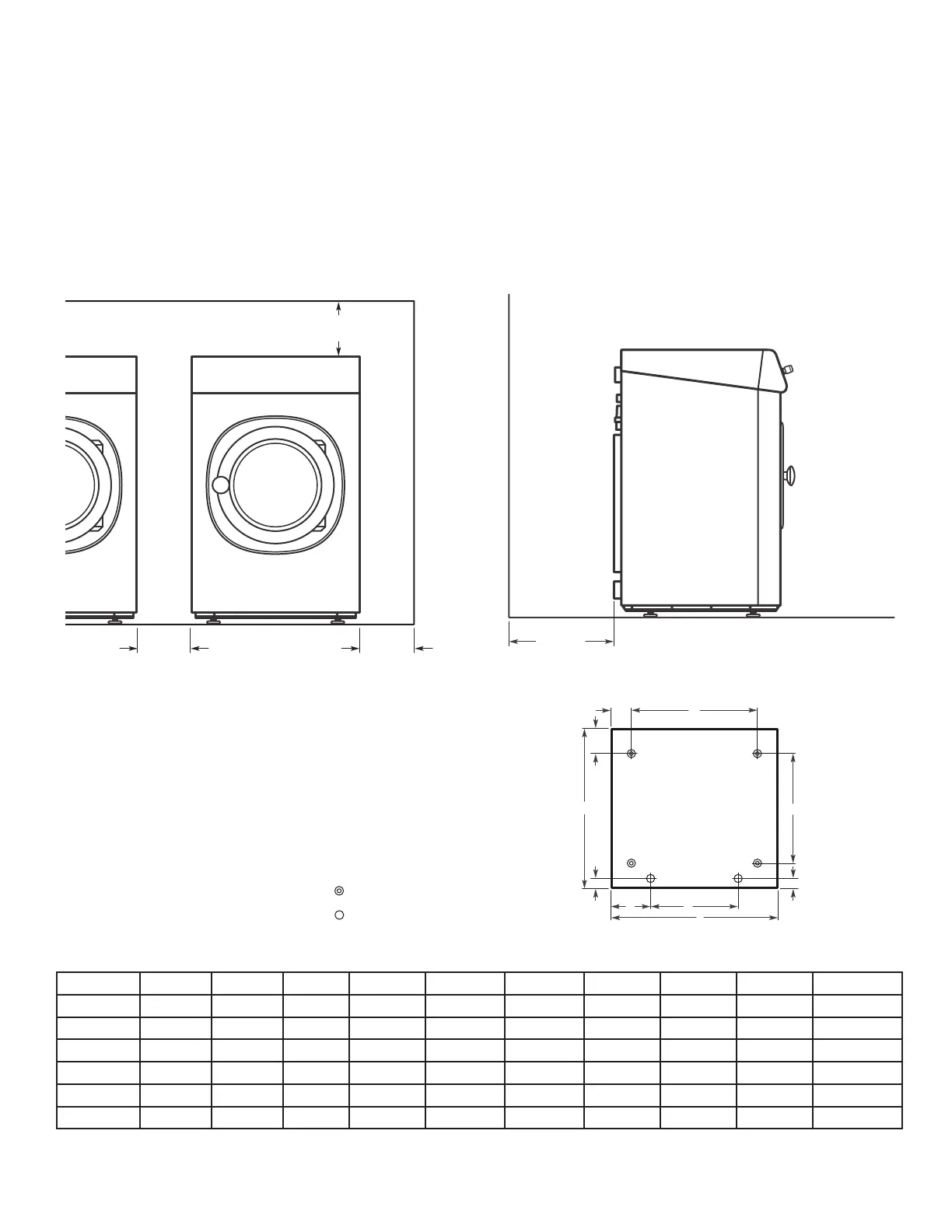

Front View
2.4 ft
(0.7 m)
0.79"
(20 mm)
0.79"
(20 mm)
Side View
20"
Anchoring Soft-Mount Models
■ If anchoring is necessary, secure the washer to the floor with
two anchoring bolts (not supplied).
■ Drill 2 holes for anchoring bolts, following the illustration to the
right.
■ If necessary, place the feet into a narrow U-shaped section,
so that the washer does not move during operation.
FRONT
AC
D
J
I
FE
B
– Position of feet
– Drilling points for anchoring bolts
Anchoring Dimensions (inches/mm) – Soft-Mount Models
Model A B C D E F G H I J
20 lb/9 kg
20.86/530 17.48/444 3.54/90 5.09/129.5 14.76/375 6.59/167.5 1.57/40 4.64/118 27.95/710 27.22/691.5
25 lb/11 kg
24.33/618 17.48/444 3.48/88.5 5.09/129.5 17.91/455 6.69/170 1.37/35 4.64/118 31.29/795 27.22/691.5
30 lb/14 kg
24.33/618 22.20/564 3.48/88.5 6.27/159.5 20.27/515 5.51/140 2.36/60 4.64/118 31.29/795 33.12/841.5
40 lb/18 kg
30.90/785 22.04/560 3.64/92.5 8.32/211.5 23.42/595 7.38/187.5 1.96/50 3.94/100 38.18/970 34.31/871.5
55 lb/24 kg
30.90/785 27.36/695 3.64/92.5 8.32/211.5 26.37/670 5.90/150 1.96/50 3.94/100 38.18/970 39.62/1006.5
65 lb/28 kg
30.90/785 30.31/770 3.64/92.5 8.32/211.5 26.37/670 5.90/150 1.96/50 3.94/100 38.18/970 42.60/1082
