5
Product Dimensions
See “Technical Specifications” for specific measurements on each
washer size.
Anchoring Rigid-Mount Models
■ Use shims to ensure all corners are level and stable.
See “Installation Instructions” section.

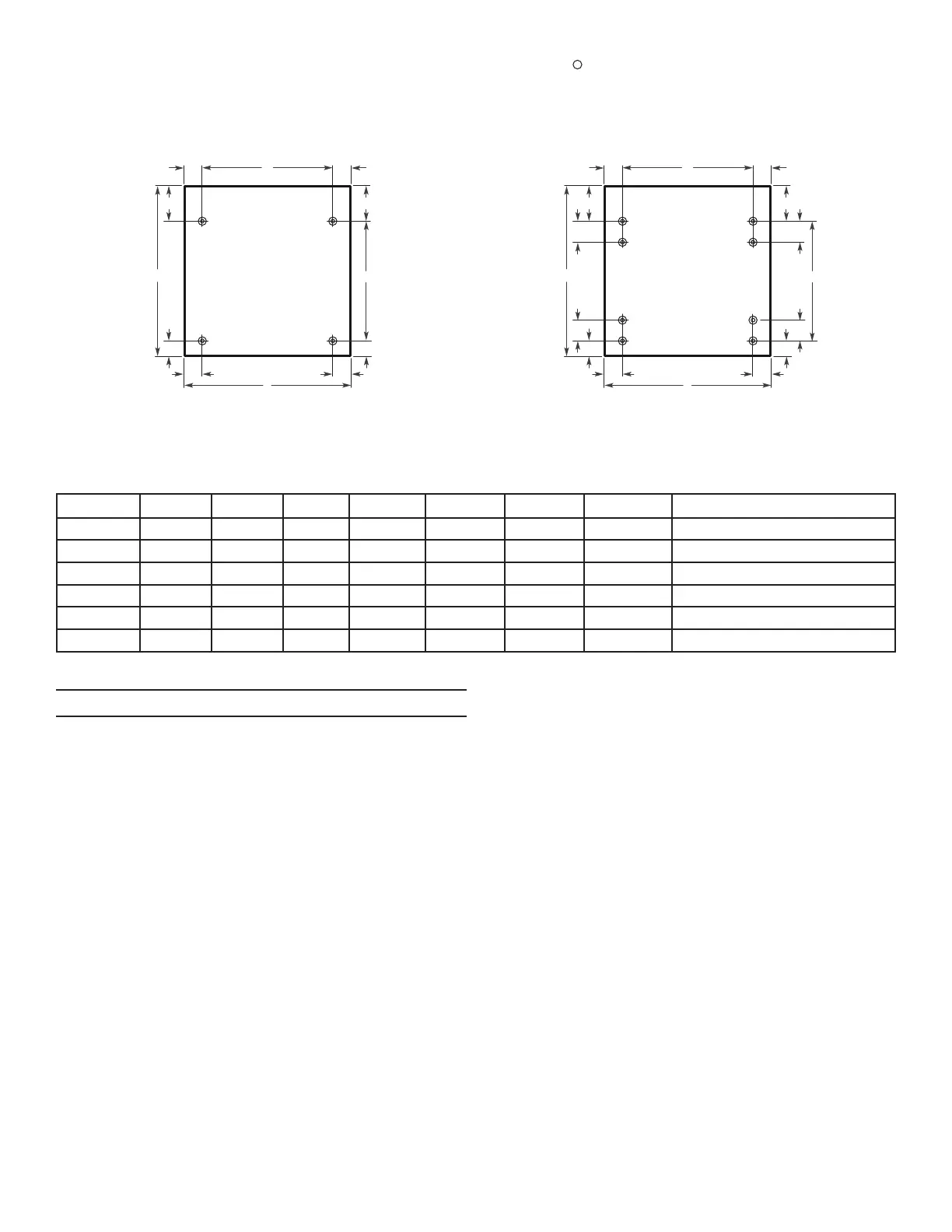

■ Drill holes for anchoring bolts, following the illustrations below.
FRONT
A
CC
D
D
G
F
CC
EE
B
– Drilling points for anchoring bolts
Anchoring Dimensions (inches/mm) – Rigid-Mount Models
Model A B C D E F G H
20 lb/9 kg
20.55/522 18.66/474 2.71/69 5.47/139 2.26/57.5 25.98/660 26.39/670.5 –
25 lb/11 kg
24.21/615 18.66/474 2.65/67.5 5.47/139 2.26/57.5 29.52/750 26.39/670.5 –
30 lb/14 kg
24.21/615 22.59/574 2.65/67.5 6.06/154 2.26/57.5 29.52/750 30.92/785.5 –
40 lb/18 kg
29.57/751 22.40/569 2.74/69.5 8.68/220.5 1.97/50 35.04/890 33.01/838.5 3.23/82
55 lb/24 kg
29.57/751 28.11/714 2.74/69.5 8.68/220.5 1.97/50 35.04/890 38.76/984.5 3.23/82
65 lb/28 kg
29.57/751 31.06/789 2.74/69.5 8.68/220.5 1.97/50 35.04/890 41.71/1059.5 3.23/82
FRONT
A
CC
D
D
G
F
CC
EE
HH
HH
B
20-25-30 lb/9-11-14 kg models (4 anchors)
40-55-65 lb/18-24-28 kg models (8 anchors)
