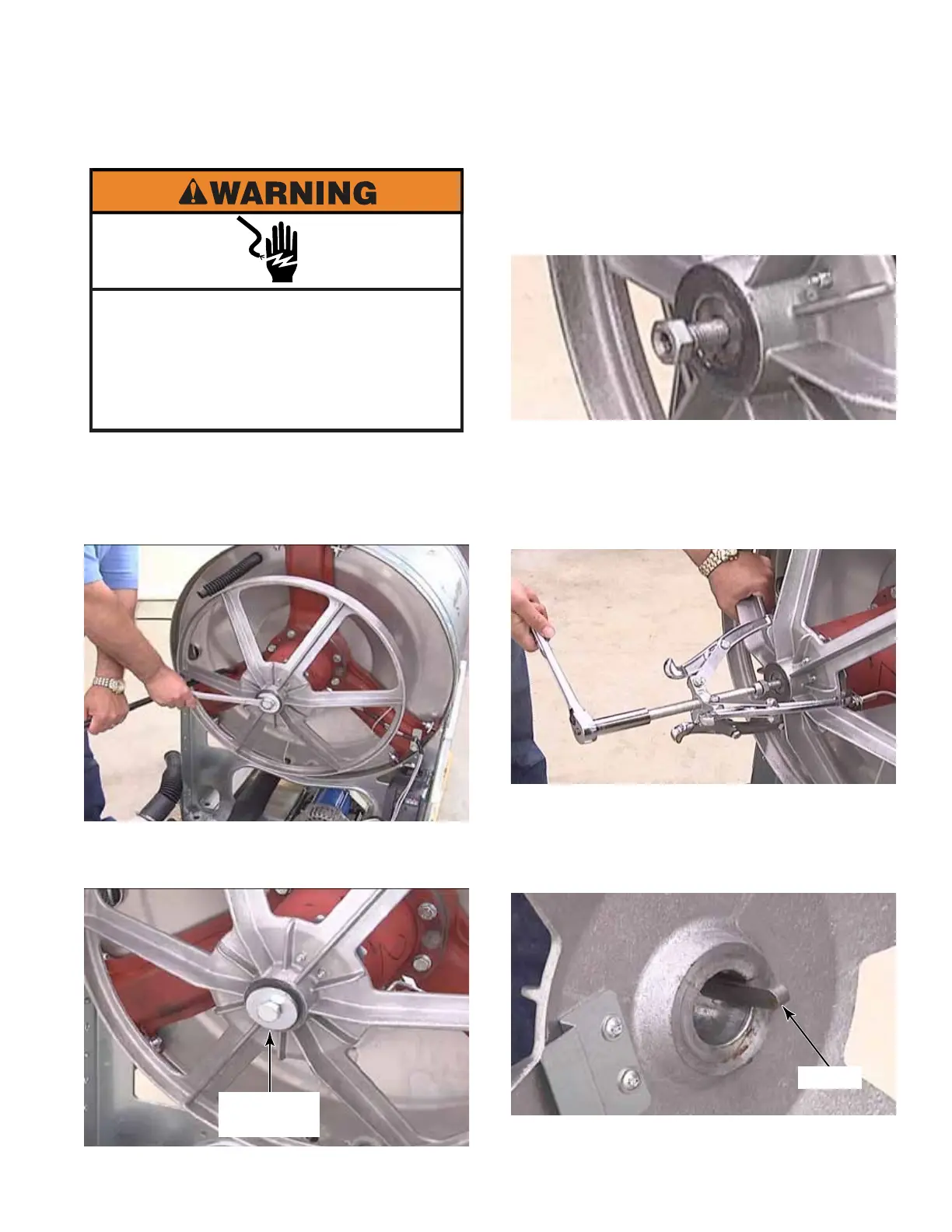

1. Remove the back panel. (See page 3-46)
2. Place a block through the pulley and brace
it on the washer to keep pulley from turning.
3. Remove the 24mm bolt and washer
securing the pulley.
4. Insert a puller bolt into the shaft. This bolt
is part of the tool kit. It has a conical hole in
the head of the bolt for the center push rod
of the puller to seat in.
5. Install a three arm puller on the basket
pulley.
6. Support the pulley while using the puller to
remove it from the shaft.
7. There is a key that keeps the pulley from
turning on the shaft.
NOTE: Make sure to keep track of the key.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
BASKET PULLEY
Bolt And
Washer
Key
