4. To remove a baffle, remove the double
19mm nuts at the back of the basket.
5. To release the baffle, pull the rod and plate
out from the front of the basket.

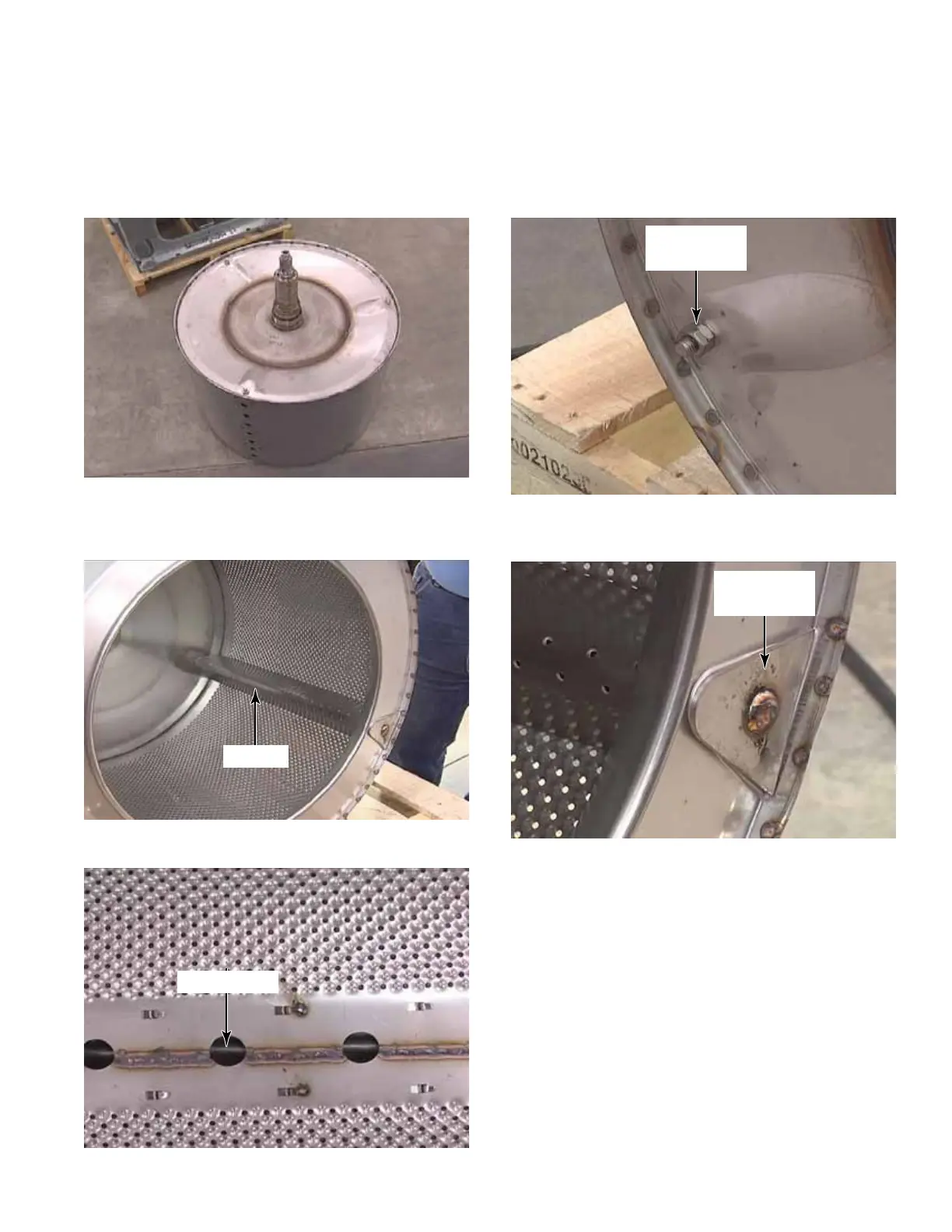

BAFFLES IN BASKET
1. To access and service the baffles in the
basket, remove the basket. (See page 3-62)
2. There are three baffles, or lifters in basket.
Each baffle is secured on a rod that is
welded to a plate on the front of the basket.
3. The rod is visible through holes in basket.
Bafe
Bafe Rod
Double
19mm Nuts
Rod And
Plate
