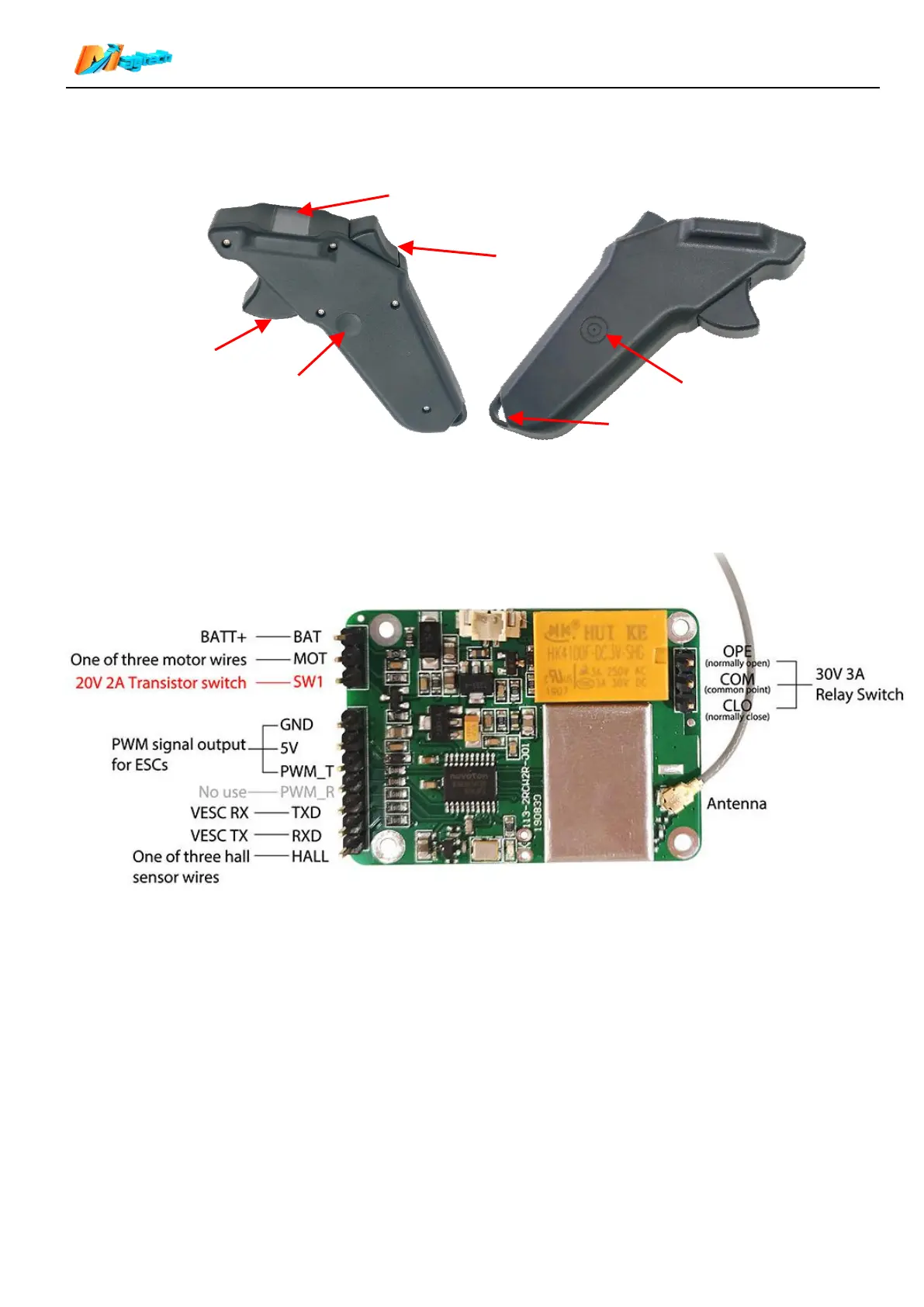

3. Remote (transmitter) appearance：
4. Receiver appearance
5. Receiver wiring instruction
5.1 Receiver and Maytech MTSF300A-OPTO ESC wiring diagram (other ESCs can refer to
this.)
5.1.1 Note: When use hall sensor to detect motor RPM:
~If your don’t use motor hall sensor to ESC hall sensor and just use it for detecting motor RPM,
please connect one 5.1K pull-up resistor between one hall wire and +5V wire. Otherwise, hall signal
will not be detected by receiver.
~ If you use hall sensor with ESC for motor spinning, then you don’t need to connect the pull-up
resistor for motor RPM detection.
To Next Page
