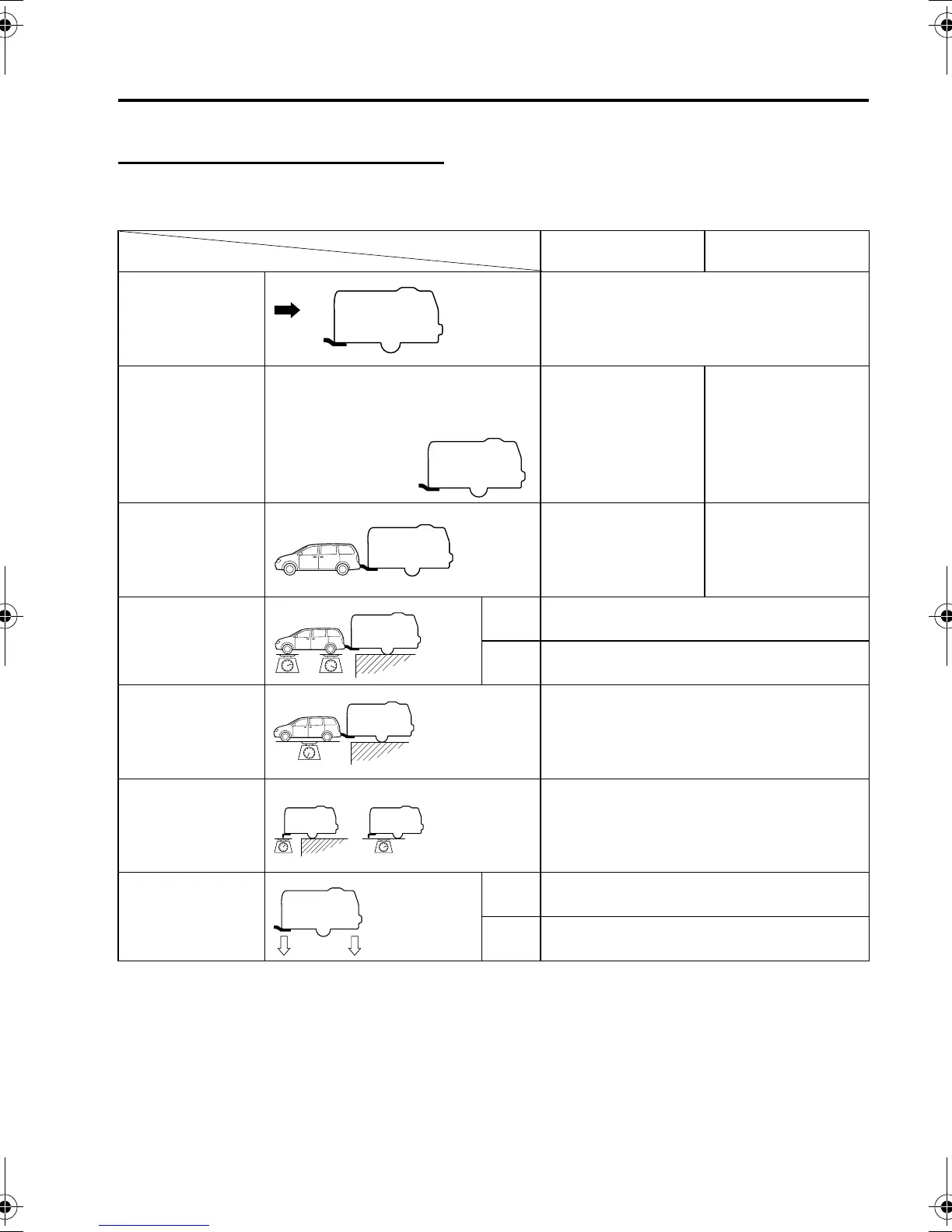

TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
The optional 4-Seasons Package: Including among others, automatic transaxle oil cooler
and large radiator. Vehicles with the 4-Seasons Package can tow a heavier trailer and carry
more cargo weight than standard-equipped vehicles.
GCWR: Gross Combined Weight Rating (sum of TTW, vehicle weights and 2 passengers)
GAWR: Gross Axle Weight Rating
GVWR: Gross Vehicle Weight Rating
Model
With 4-Seasons
Package
Without 4-Seasons
Package
Item
MAX. FRONTAL
AREA
2.97m
2
(32 ft
2
)
MAX. TTW
Add trailer’s weight, load and hitch;
vehicle passengers and vehicle load
*
*
i.e. baggage, food, camp gear
1,361 kg (3,000 lb) 907 kg (2,000 lb)
MAX. GCWR
3,324 kg (7,328 lb) 2,871 kg (6,329 lb)
MAX. GAWR
Front
1,180 kg (2,601 lb)
Rear
1,214 kg (2,676 lb)
MAX. GVWR
2,372 kg (5,229 lb)
TRAILER-
TONGUE LOAD
Tongue load/
Trailer load × 100 = 10% to 15%
DISTRIBUTION
OF TRAILER
LOAD
Front
60%
Rear
40%
Tongue load
Trailer load
