Owner Maintenance
Form No. 8S06-EA-03H
▼

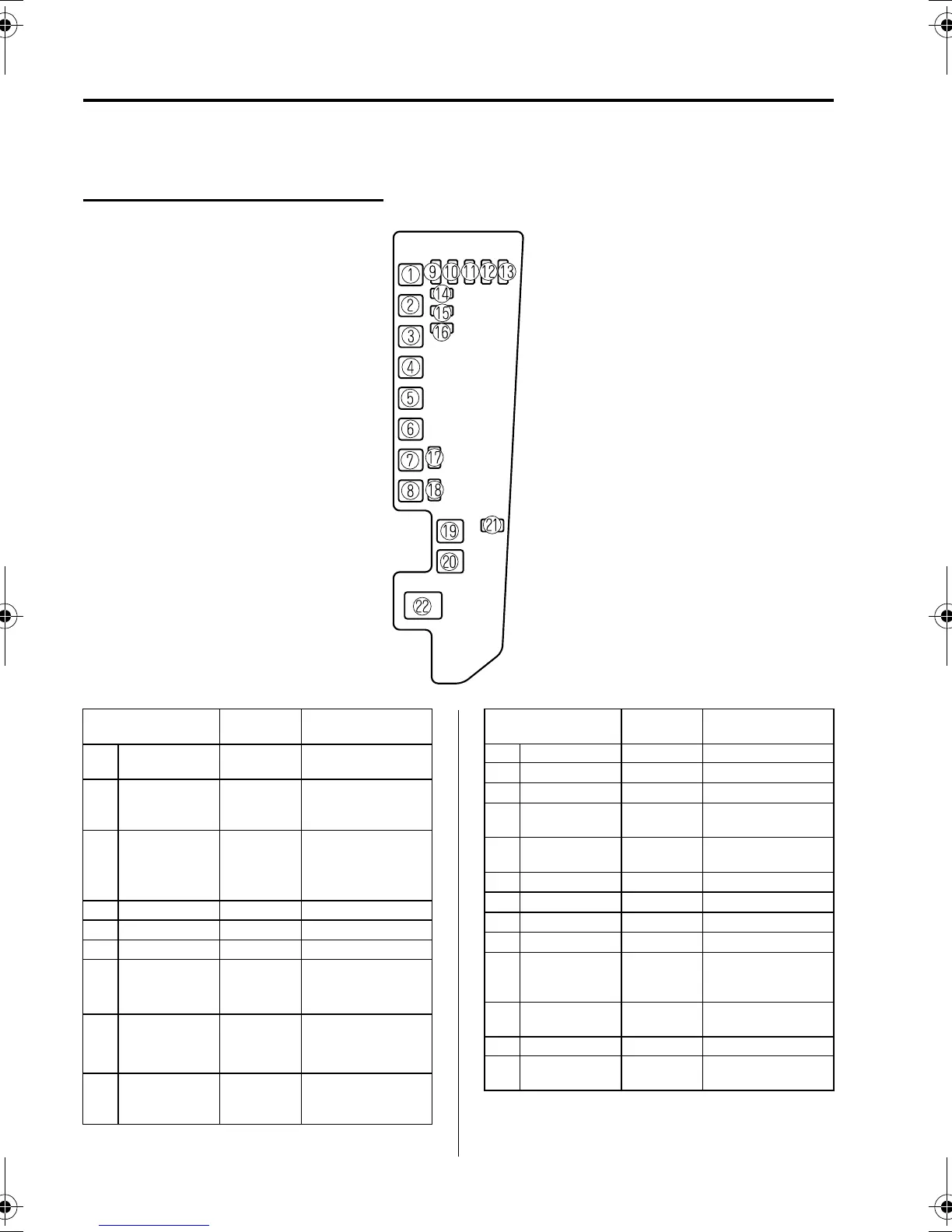

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1 DEFOG 40A
Rear window
defroster
2 BTN 60A
STOP, HAZARD,
ROOM, D.LOCK
and DRL fuses
3 ABS 60A
Antilock brake
system
*
, For
protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEAT 30A
Rear heater
*
, For
protection of
various circuits
8 IG KEY2 40A
A/C, P.WIND
*
,
MOONROOF
*
an
d R.WIP fuses
9 A/C 10A
Air conditioner,
For protection of
various circuits
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
10 TAIL 15A Taillights
11
AC PWR
15A Inverter
12
HORN
15A Horn
13
FOG 15A
For protection of
various circuits
14
EEC 5A
For protection of
various circuits
15
HEAD L 15A
Headlight-left
16
HEAD R 15A
Headlight-right
17
HID L 20A
—
18
HID R 20A
—
19 IG KEY1 60A
METER,
ENGINE and
WIPER fuses
20 EGI INJ 30A
For protection of
various circuits
21 FUEL PUMP 20A Fuel pump
22 MAIN 120A
For protection of
all circuits
*Some models.
