8-34
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

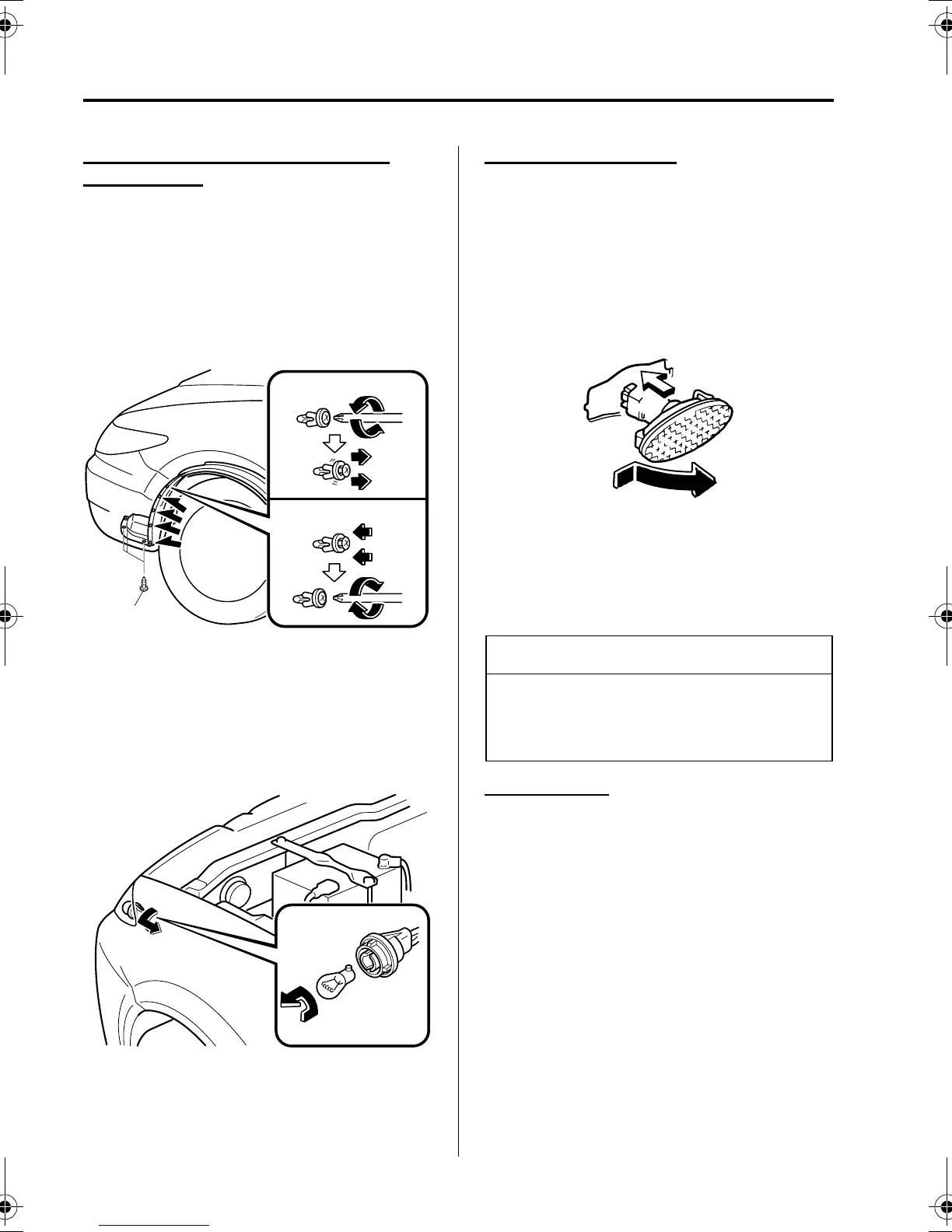

Front turn signal lights/Front side-
marker lights
1. Turn the screw counterclockwise and
remove it.
2. Turn the center section of the plastic
retainer counterclockwise and remove
it, then partially peel back the
mudguard.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
5. Install the new bulb in the reverse order
of removal.
Side turn signal lights
1. Slide the unit as shown in the figure to
remove it.
2. Detach the electrical connector from
the unit by pulling it to the rear.
3. Install the new side turn signal unit in
the reverse order of removal.
Parking lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Screw
Removal
Installation
NOTE
Bulb replacement is not possible
because it is built into the unit. Replace
the unit.
J16R_8S06-EA-03H_Edition1.book Page 34 Wednesday, July 9, 2003 4:19 PM
