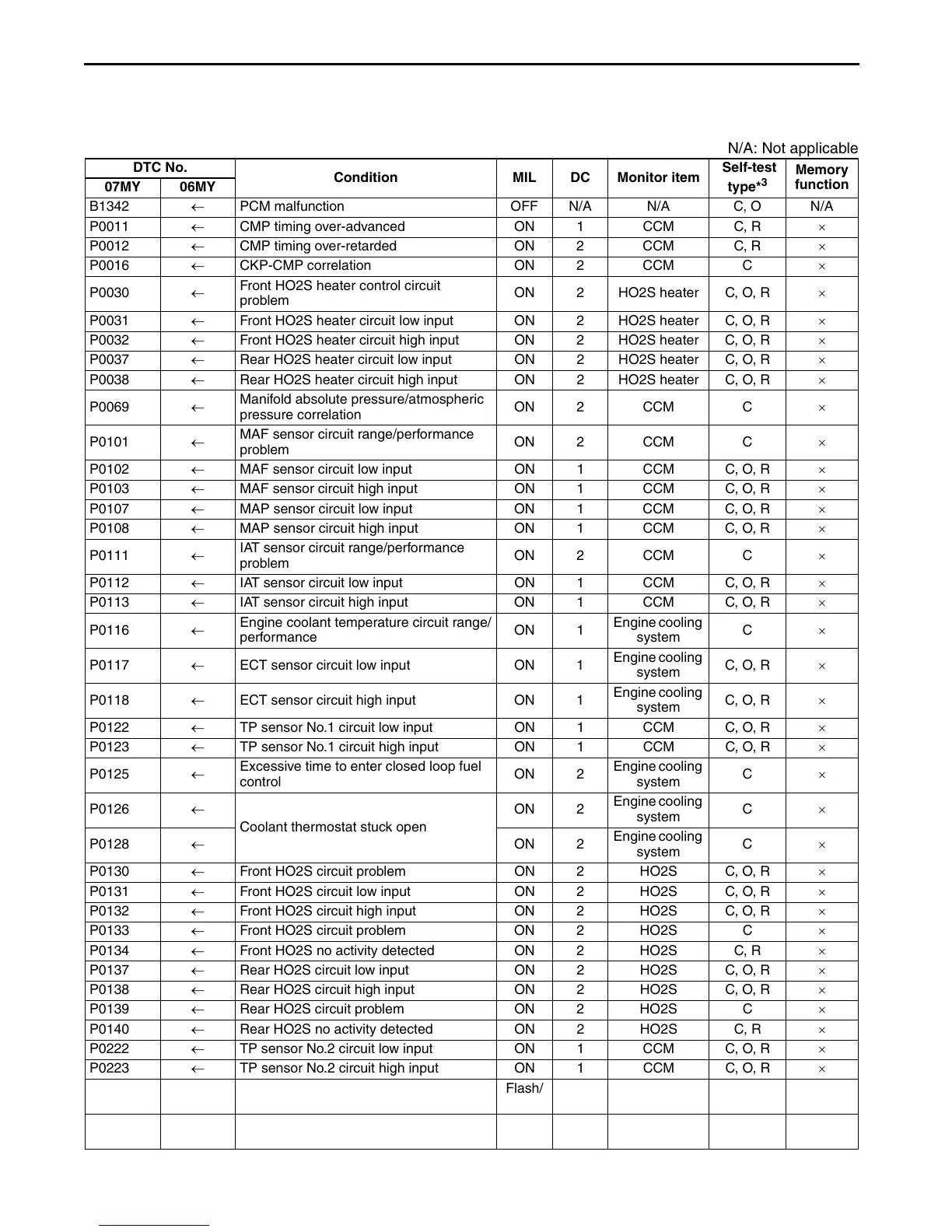

Sending Emission-related Malfunction Code
• The DTCs are shown below.
×: Applicable
N/A: Not applicable
DTC No.
Condition MIL DC Monitor item
Self-test
type*
3
Memory
function
07MY 06MY
B1342 ← PCM malfunction OFF N/A N/A C, O N/A
P0011 ← CMP timing over-advanced ON 1 CCM C, R ×
P0012 ← CMP timing over-retarded ON 2 CCM C, R ×
P0016 ← CKP-CMP correlation ON 2 CCM C ×
P0030 ←
Front HO2S heater control circuit
problem
ON 2 HO2S heater C, O, R ×
P0031 ← Front HO2S heater circuit low input ON 2 HO2S heater C, O, R ×
P0032 ← Front HO2S heater circuit high input ON 2 HO2S heater C, O, R ×
P0037 ← Rear HO2S heater circuit low input ON 2 HO2S heater C, O, R ×
P0038 ← Rear HO2S heater circuit high input ON 2 HO2S heater C, O, R ×
P0069 ←
Manifold absolute pressure/atmospheric
pressure correlation
ON 2 CCM C ×
P0101 ←
MAF sensor circuit range/performance
problem
ON 2 CCM C ×
P0102 ← MAF sensor circuit low input ON 1 CCM C, O, R ×
P0103 ← MAF sensor circuit high input ON 1 CCM C, O, R ×
P0107 ← MAP sensor circuit low input ON 1 CCM C, O, R ×
P0108 ← MAP sensor circuit high input ON 1 CCM C, O, R ×
P0111 ←
IAT sensor circuit range/performance
problem
ON 2 CCM C ×
P0112 ← IAT sensor circuit low input ON 1 CCM C, O, R ×
P0113 ← IAT sensor circuit high input ON 1 CCM C, O, R ×
P0116 ←
Engine coolant temperature circuit range/
performance
ON 1
Engine cooling
system
C ×
P0117 ← ECT sensor circuit low input ON 1
Engine cooling
system
C, O, R ×
P0118 ← ECT sensor circuit high input ON 1
Engine cooling
system
C, O, R ×
P0122 ← TP sensor No.1 circuit low input ON 1 CCM C, O, R ×
P0123 ← TP sensor No.1 circuit high input ON 1 CCM C, O, R ×
P0125 ←
Excessive time to enter closed loop fuel
control
ON 2
Engine cooling
system
C ×
P0126 ←
Coolant thermostat stuck open
ON 2
Engine cooling
system
C ×
P0128 ← ON 2
Engine cooling
system
C ×
P0130 ← Front HO2S circuit problem ON 2 HO2S C, O, R ×
P0131 ← Front HO2S circuit low input ON 2 HO2S C, O, R ×
P0132 ← Front HO2S circuit high input ON 2 HO2S C, O, R ×
P0133 ← Front HO2S circuit problem ON 2 HO2S C ×
P0134 ← Front HO2S no activity detected ON 2 HO2S C, R ×
P0137 ← Rear HO2S circuit low input ON 2 HO2S C, O, R ×
P0138 ← Rear HO2S circuit high input ON 2 HO2S C, O, R ×
P0139 ← Rear HO2S circuit problem ON 2 HO2S C ×
P0140 ← Rear HO2S no activity detected ON 2 HO2S C, R ×
P0222 ← TP sensor No.2 circuit low input ON 1 CCM C, O, R ×
P0223 ← TP sensor No.2 circuit high input ON 1 CCM C, O, R ×
P0300 ← Random misfire detected
Flash/
ON
1 or 2 Misfire C, R ×
P0301 ← Cylinder No.1 misfire detected
Flash/
ON
1 or 2 Misfire C, R ×
