ON-BOARD DIAGNOSTIC [LF]
01-02–20
*1
: California emission regulation applicable model
*2
:MT
*3
: With ABS/DSC or MT without ABS/DSC
End Of Sie

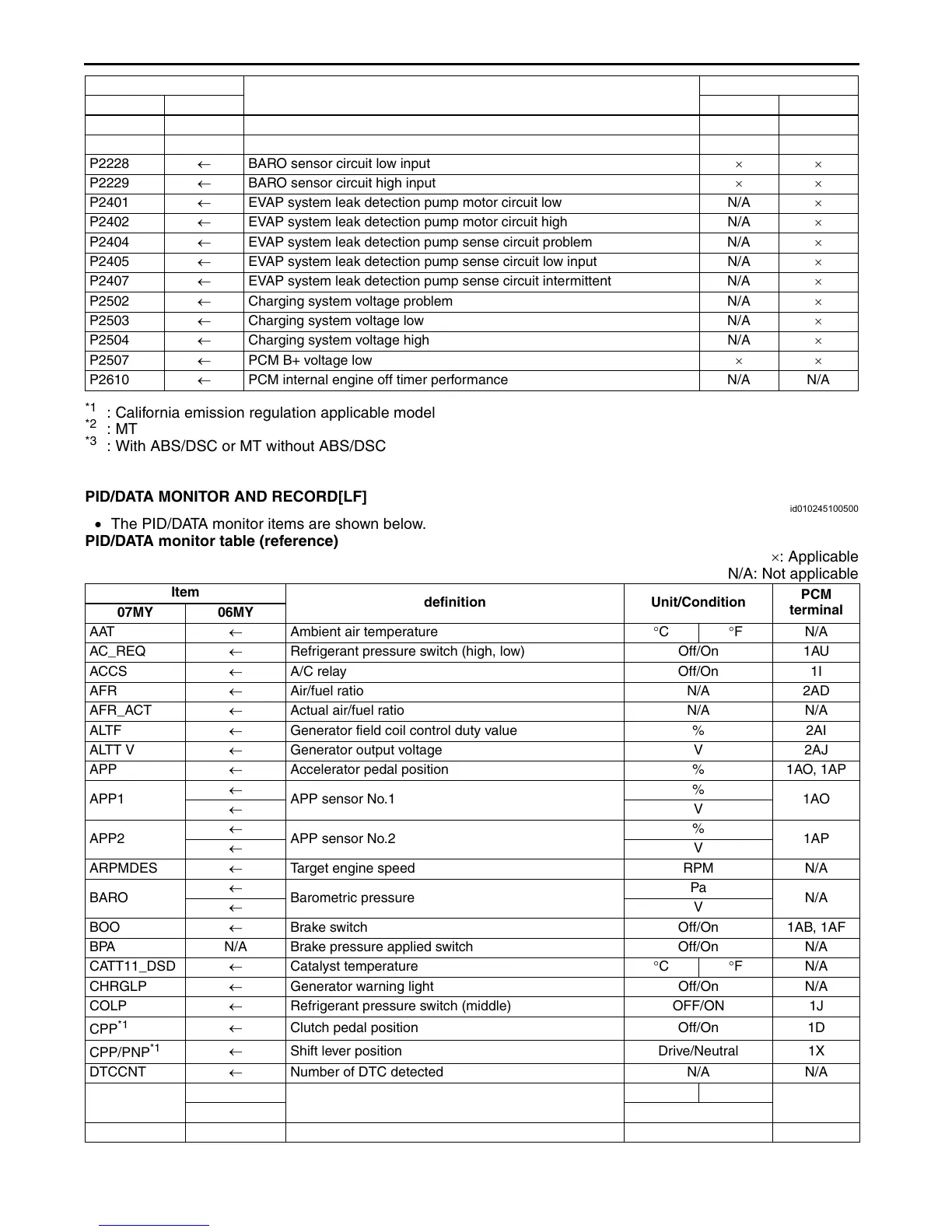

PID/DATA MONITOR AND RECORD[LF]
id010245100500
• The PID/DATA monitor items are shown below.
PID/DATA monitor table (reference)
×: Applicable
N/A: Not applicable
P2195 ← Front HO2S signal stuck lean N/A N/A
P2196 ← Front HO2S signal stuck rich N/A N/A
P2228 ← BARO sensor circuit low input ××
P2229 ← BARO sensor circuit high input ××
P2401 ← EVAP system leak detection pump motor circuit low N/A ×
P2402 ← EVAP system leak detection pump motor circuit high N/A ×
P2404 ← EVAP system leak detection pump sense circuit problem N/A ×
P2405 ← EVAP system leak detection pump sense circuit low input N/A ×
P2407 ← EVAP system leak detection pump sense circuit intermittent N/A ×
P2502 ← Charging system voltage problem N/A ×
P2503 ← Charging system voltage low N/A ×
P2504 ← Charging system voltage high N/A ×
P2507 ← PCM B+ voltage low ××
P2610 ← PCM internal engine off timer performance N/A N/A
DTC No.
Condition
Test condition
07MY 06MY KOEO KOER
Item
definition Unit/Condition
PCM
terminal
07MY 06MY
AAT ← Ambient air temperature °C °FN/A
AC_REQ ← Refrigerant pressure switch (high, low) Off/On 1AU
ACCS ← A/C relay Off/On 1I
AFR ← Air/fuel ratio N/A 2AD
AFR_ACT ← Actual air/fuel ratio N/A N/A
ALTF ← Generator field coil control duty value % 2AI
ALTT V ← Generator output voltage V 2AJ
APP ← Accelerator pedal position % 1AO, 1AP
APP1
←
APP sensor No.1
%
1AO
← V
APP2
←
APP sensor No.2
%
1AP
← V
ARPMDES ← Target engine speed RPM N/A
BARO
←
Barometric pressure
Pa
N/A
← V
BOO ← Brake switch Off/On 1AB, 1AF
BPA N/A Brake pressure applied switch Off/On N/A
CATT11_DSD ← Catalyst temperature °C °FN/A
CHRGLP ← Generator warning light Off/On N/A
COLP ← Refrigerant pressure switch (middle) OFF/ON 1J
CPP
*1
← Clutch pedal position Off/On 1D
CPP/PNP
*1
← Shift lever position Drive/Neutral 1X
DTCCNT ← Number of DTC detected N/A N/A
ECT
←
Engine coolant temperature
°C °F
2AH
← V
EQ_RAT11 ← Actual lambda signal N/A N/A
