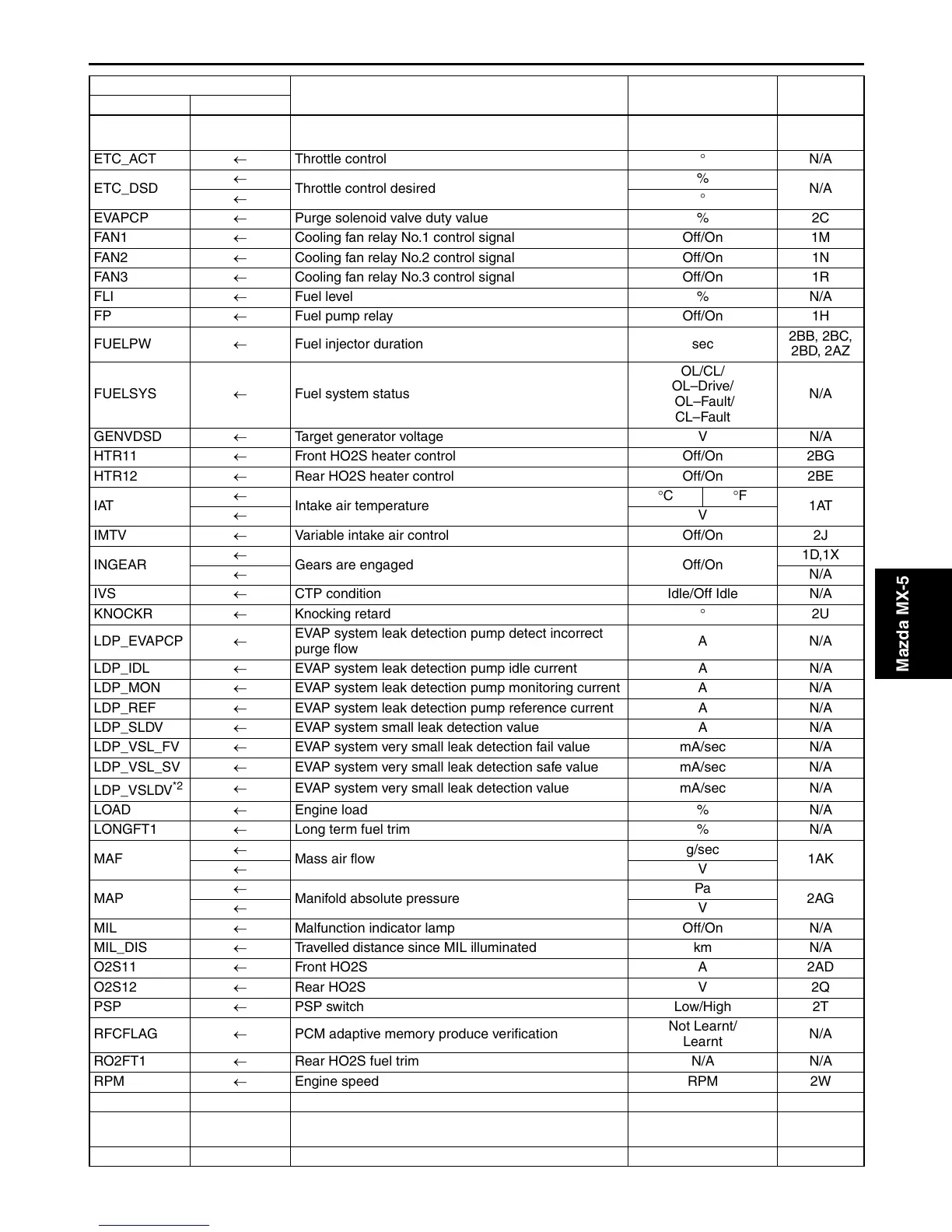

ON-BOARD DIAGNOSTIC [LF]
01-02–21
Mazda MX-5
EQ_RAT11_D
SD
← Target lambda N/A N/A
ETC_ACT ← Throttle control ° N/A
ETC_DSD
←
Throttle control desired
%
N/A
← °
EVAPCP ← Purge solenoid valve duty value % 2C
FAN1 ← Cooling fan relay No.1 control signal Off/On 1M
FAN2 ← Cooling fan relay No.2 control signal Off/On 1N
FAN3 ← Cooling fan relay No.3 control signal Off/On 1R
FLI ← Fuel level % N/A
FP ← Fuel pump relay Off/On 1H
FUELPW ← Fuel injector duration sec
2BB, 2BC,
2BD, 2AZ
FUELSYS ← Fuel system status
OL/CL/
OL–Drive/
OL–Fault/
CL–Fault
N/A
GENVDSD ← Target generator voltage V N/A
HTR11 ← Front HO2S heater control Off/On 2BG
HTR12 ← Rear HO2S heater control Off/On 2BE
IAT
←
Intake air temperature
°C °F
1AT
← V
IMTV ← Variable intake air control Off/On 2J
INGEAR
←
Gears are engaged Off/On
1D,1X
← N/A
IVS ← CTP condition Idle/Off Idle N/A
KNOCKR ← Knocking retard ° 2U
LDP_EVAPCP ←
EVAP system leak detection pump detect incorrect
purge flow
AN/A
LDP_IDL ← EVAP system leak detection pump idle current A N/A
LDP_MON ← EVAP system leak detection pump monitoring current A N/A
LDP_REF ← EVAP system leak detection pump reference current A N/A
LDP_SLDV ← EVAP system small leak detection value A N/A
LDP_VSL_FV ← EVAP system very small leak detection fail value mA/sec N/A
LDP_VSL_SV ← EVAP system very small leak detection safe value mA/sec N/A
LDP_VSLDV
*2
← EVAP system very small leak detection value mA/sec N/A
LOAD ← Engine load % N/A
LONGFT1 ← Long term fuel trim % N/A
MAF
←
Mass air flow
g/sec
1AK
← V
MAP
←
Manifold absolute pressure
Pa
2AG
← V
MIL ← Malfunction indicator lamp Off/On N/A
MIL_DIS ← Travelled distance since MIL illuminated km N/A
O2S11 ← Front HO2S A 2AD
O2S12 ← Rear HO2S V 2Q
PSP ← PSP switch Low/High 2T
RFCFLAG ← PCM adaptive memory produce verification
Not Learnt/
Learnt
N/A
RO2FT1 ← Rear HO2S fuel trim N/A N/A
RPM ← Engine speed RPM 2W
SCCS ← Cruise control switch V 1AQ
SEGRP ← EGR control N/A
2K, 2G, 2L,
2H
SEGRP DSD ← EGR valve position desired % N/A
Item
definition Unit/Condition
PCM
terminal
07MY 06MY
3404-1U-05F(01-02).fm 21 ページ ２００６年７月３日 月曜日 午前９時５０分
