ON-BOARD DIAGNOSTIC [LF]
01-02–23
Mazda MX-5
SIMULATION TEST[LF]
id010245100600
• The simulation items are shown below.

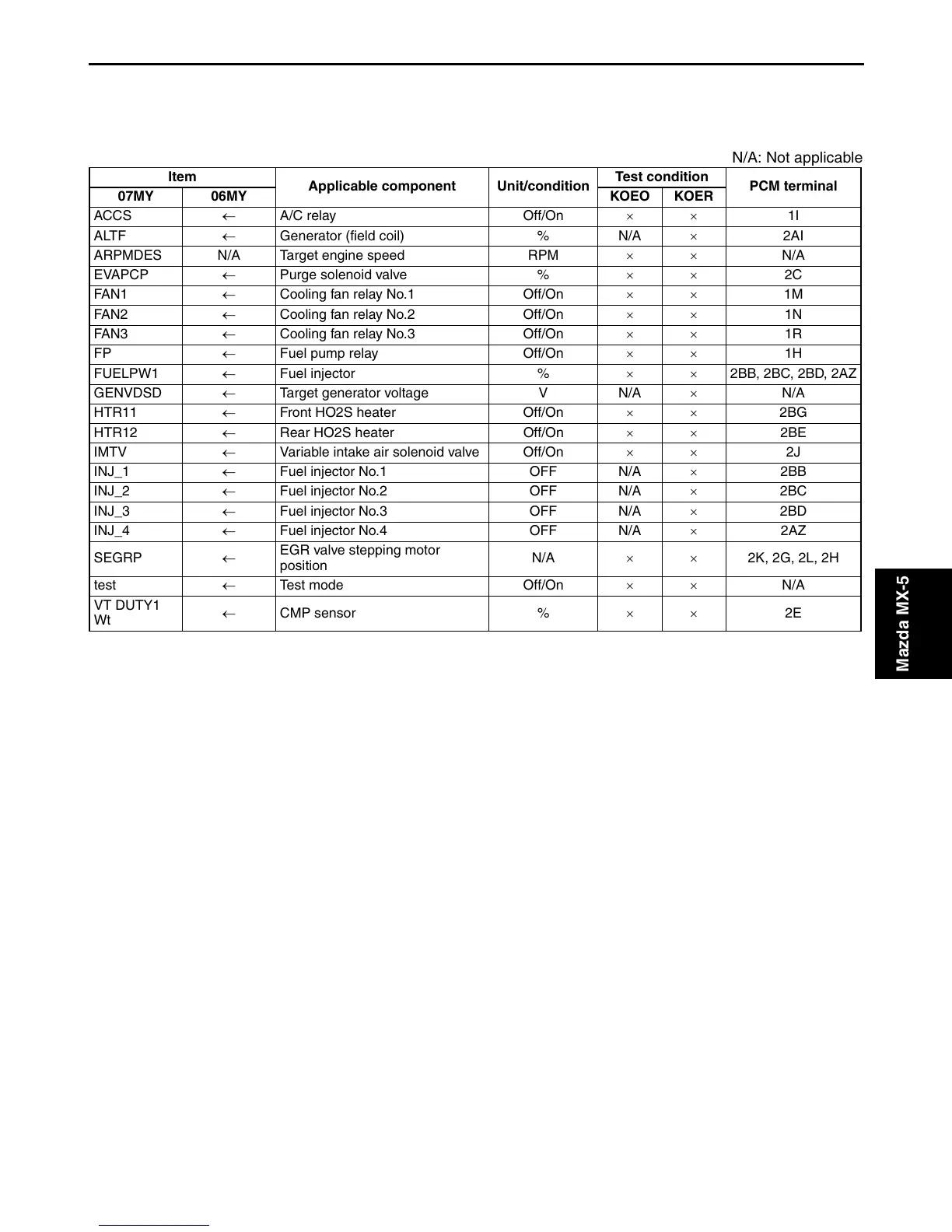

Simulation item table
×: Applicable
N/A: Not applicable
End Of Sie
Item
Applicable component Unit/condition
Test condition
PCM terminal
07MY 06MY KOEO KOER
ACCS ← A/C relay Off/On ×× 1I
ALTF ← Generator (field coil) % N/A × 2AI
ARPMDES N/A Target engine speed RPM ×× N/A
EVAPCP ← Purge solenoid valve % ×× 2C
FAN1 ← Cooling fan relay No.1 Off/On ×× 1M
FAN2 ← Cooling fan relay No.2 Off/On ×× 1N
FAN3 ← Cooling fan relay No.3 Off/On ×× 1R
FP ← Fuel pump relay Off/On ×× 1H
FUELPW1 ← Fuel injector % ××2BB, 2BC, 2BD, 2AZ
GENVDSD ← Target generator voltage V N/A × N/A
HTR11 ← Front HO2S heater Off/On ×× 2BG
HTR12 ← Rear HO2S heater Off/On ×× 2BE
IMTV ← Variable intake air solenoid valve Off/On ×× 2J
INJ_1 ← Fuel injector No.1 OFF N/A × 2BB
INJ_2 ← Fuel injector No.2 OFF N/A × 2BC
INJ_3 ← Fuel injector No.3 OFF N/A × 2BD
INJ_4 ← Fuel injector No.4 OFF N/A × 2AZ
SEGRP ←
EGR valve stepping motor
position
N/A ××2K, 2G, 2L, 2H
test ← Test mode Off/On ×× N/A
VT DUTY1
Wt
← CMP sensor % ×× 2E
