ON-BOARD DIAGNOSTIC [LF]
01-02–1
Mazda MX-5
01-02 ON-BOARD DIAGNOSTIC [LF]
DIAGNOSTIC TEST MODE[LF] . . . . . . . 01-02–1
Sending Diagnostic Data . . . . . . . . . . . 01-02–2
Sending Freeze Frame Data . . . . . . . . 01-02–3
Sending Emission-related
Malfunction Code . . . . . . . . . . . . . . . . 01-02–4
Sending Intermittent Monitoring
System Test Results . . . . . . . . . . . . . 01-02–7
Sending Continuous Monitoring
System Test Results . . . . . . . . . . . . . 01-02–7
DLC-2 Outline . . . . . . . . . . . . . . . . . . . 01-02–8
DTC DETECTION LOGIC AND
CONDITIONS[LF]. . . . . . . . . . . . . . . . . . 01-02–8
KOEO/KOER SELF-TEST[LF] . . . . . . . . . 01-02–17
KOEO (Key ON, Engine Off)
Self-test . . . . . . . . . . . . . . . . . . . . . . . . 01-02–17
KOER (Key ON, Engine Running)
Self-test . . . . . . . . . . . . . . . . . . . . . . . . 01-02–17
PID/DATA MONITOR AND
RECORD[LF] . . . . . . . . . . . . . . . . . . . . . 01-02–20
SIMULATION TEST[LF] . . . . . . . . . . . . . . 01-02–23
End of Toc
NG: ON-BOARD DIAGNOSTIC (ENGINE CONTROL SYSTEM)

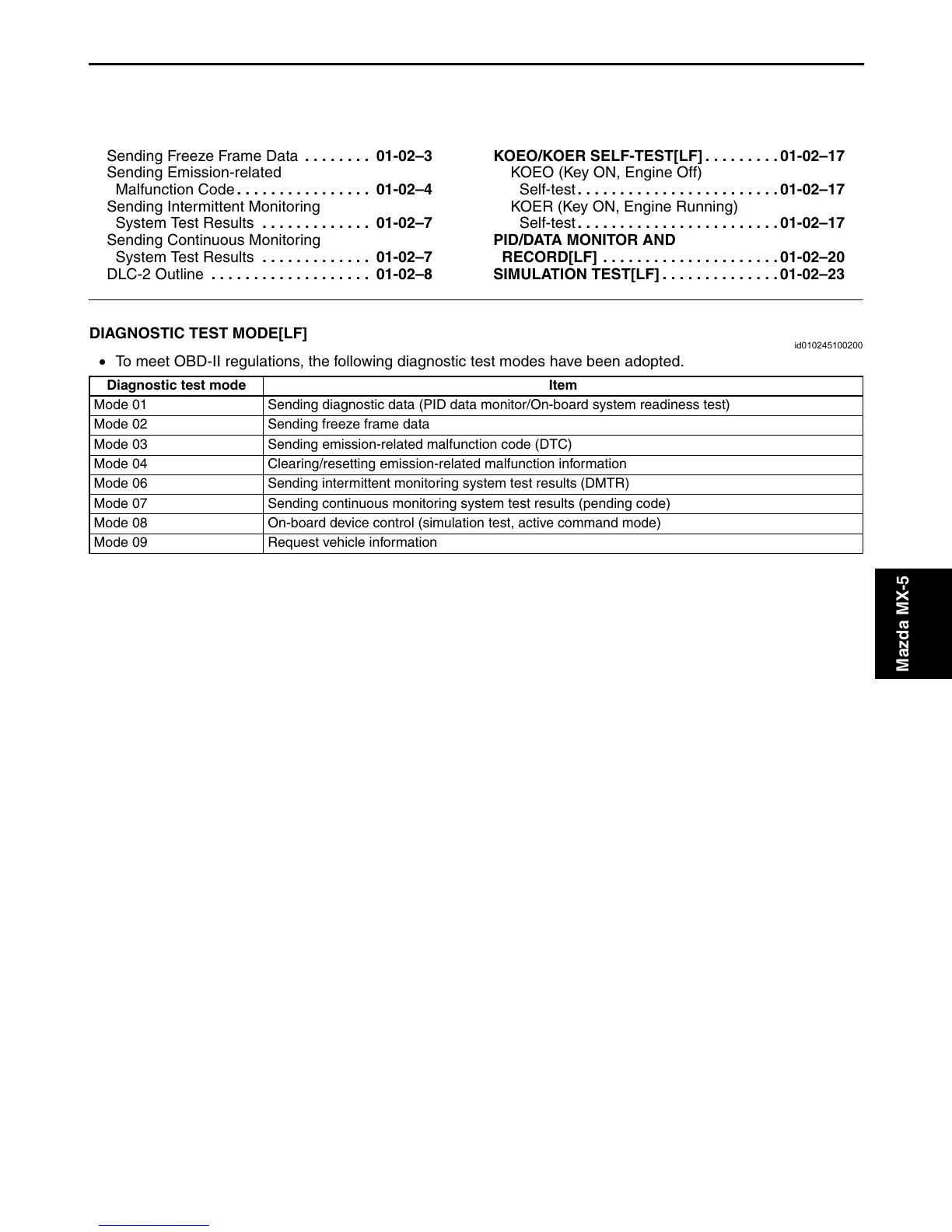

DIAGNOSTIC TEST MODE[LF]
id010245100200
• To meet OBD-II regulations, the following diagnostic test modes have been adopted.
Diagnostic test mode Item
Mode 01 Sending diagnostic data (PID data monitor/On-board system readiness test)
Mode 02 Sending freeze frame data
Mode 03 Sending emission-related malfunction code (DTC)
Mode 04 Clearing/resetting emission-related malfunction information
Mode 06 Sending intermittent monitoring system test results (DMTR)
Mode 07 Sending continuous monitoring system test results (pending code)
Mode 08 On-board device control (simulation test, active command mode)
Mode 09 Request vehicle information
3404-1U-05F(01-02).fm 1 ページ ２００６年７月３日 月曜日 午前９時５０分
